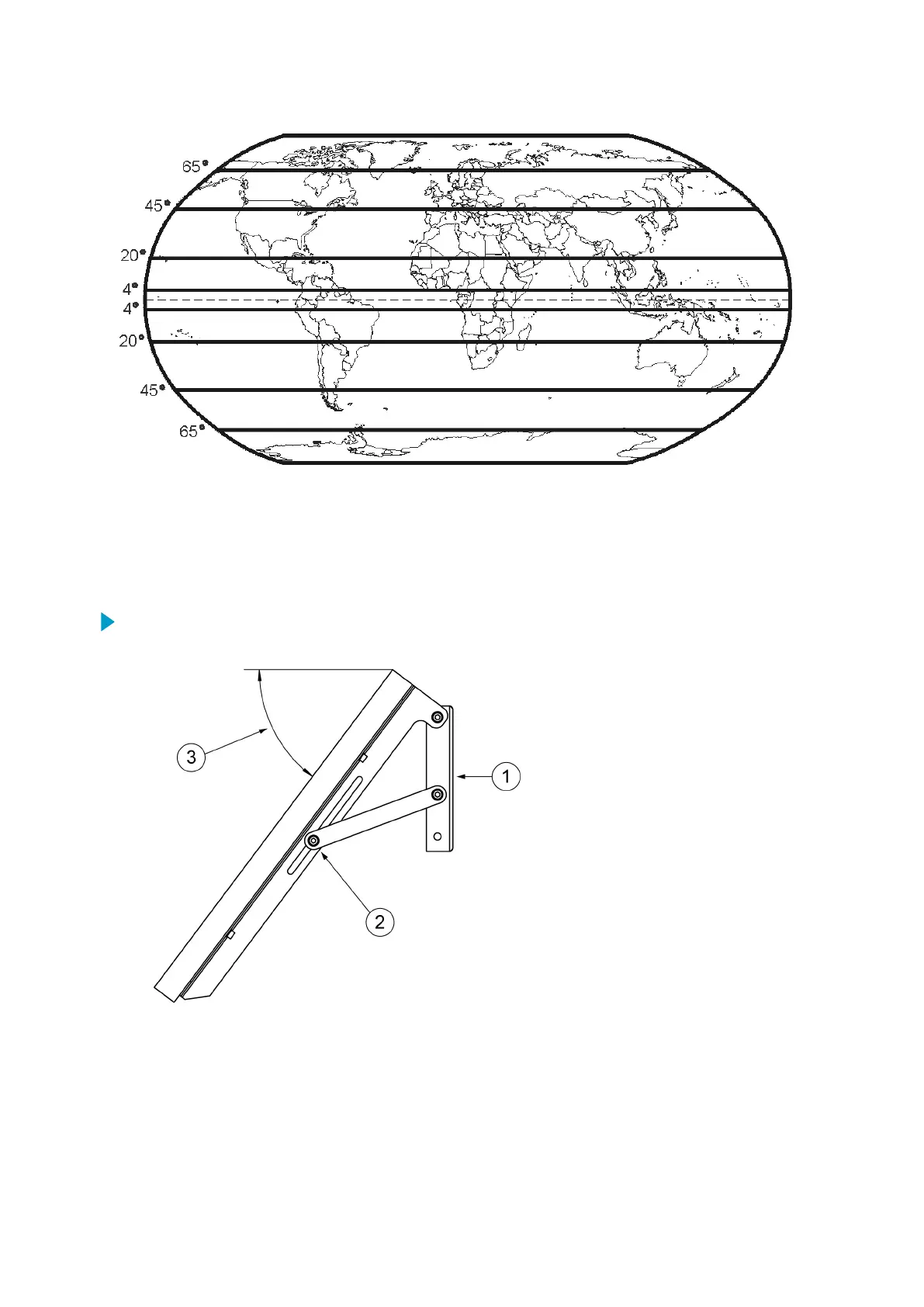

Figure 21 Map of Latitudes
In some installations, it can be eective to adjust the tilt seasonally. To improve the solar
panel performance during summer at most latitudes, use an angle smaller than
recommended. Conversely, a larger angle can improve the performance during winter.
1. To adjust the tilt angle of the solar panel, loosen the adjusting screws. Be careful not to
damage the power cable.
1 Mounting plate
2 Adjusting screw
3 Tilt angle for the solar panel
2. Tighten the screws.
AWS310/AWS310-SITE Installation Manual M211584EN-F
