Vaisala AWS310 User Manual

The following figure shows the recommended site layout. If your site layout requires
dierent placements, prepare for them when ordering your equipment by, for example,
planning for dierent cable lengths. For more information about available options for each
sensor, see the relevant sensor documentation.

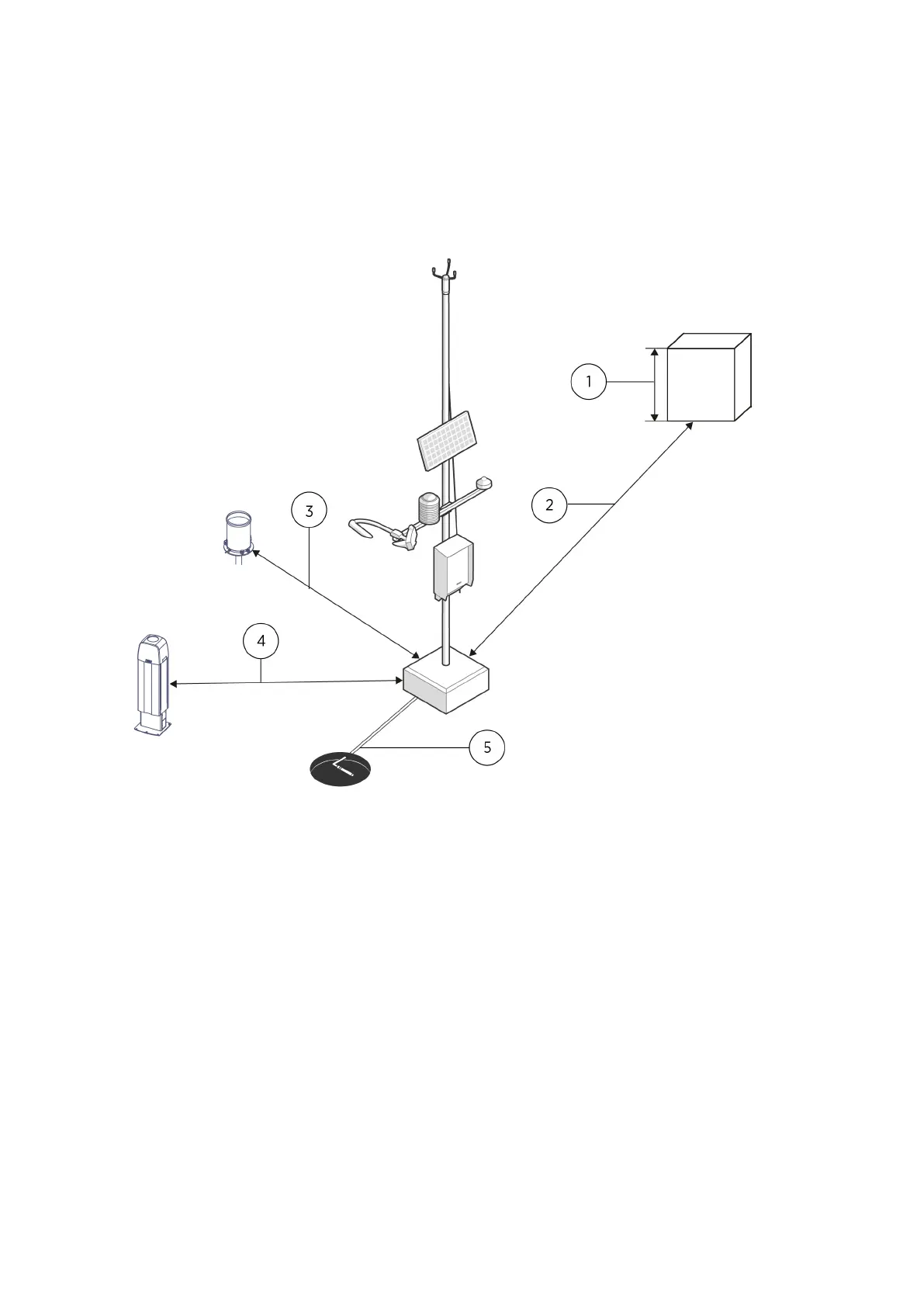

Figure 3 Recommended Site Layout with Distances
1 Object of height H
2 Minimum distance to the object is 10 × H
3 Maximum distance to rain gauges is 6 m (19 ft 8 in)
4 Maximum distance to ceilometer is 8 m (26 ft 3 in)
5 Maximum distance to subsurface sensors is 10 m (32 ft 10 in) or 35 m (114 ft 10 in) with
an extension cable
Chapter 3 – Installation Preparation
25
