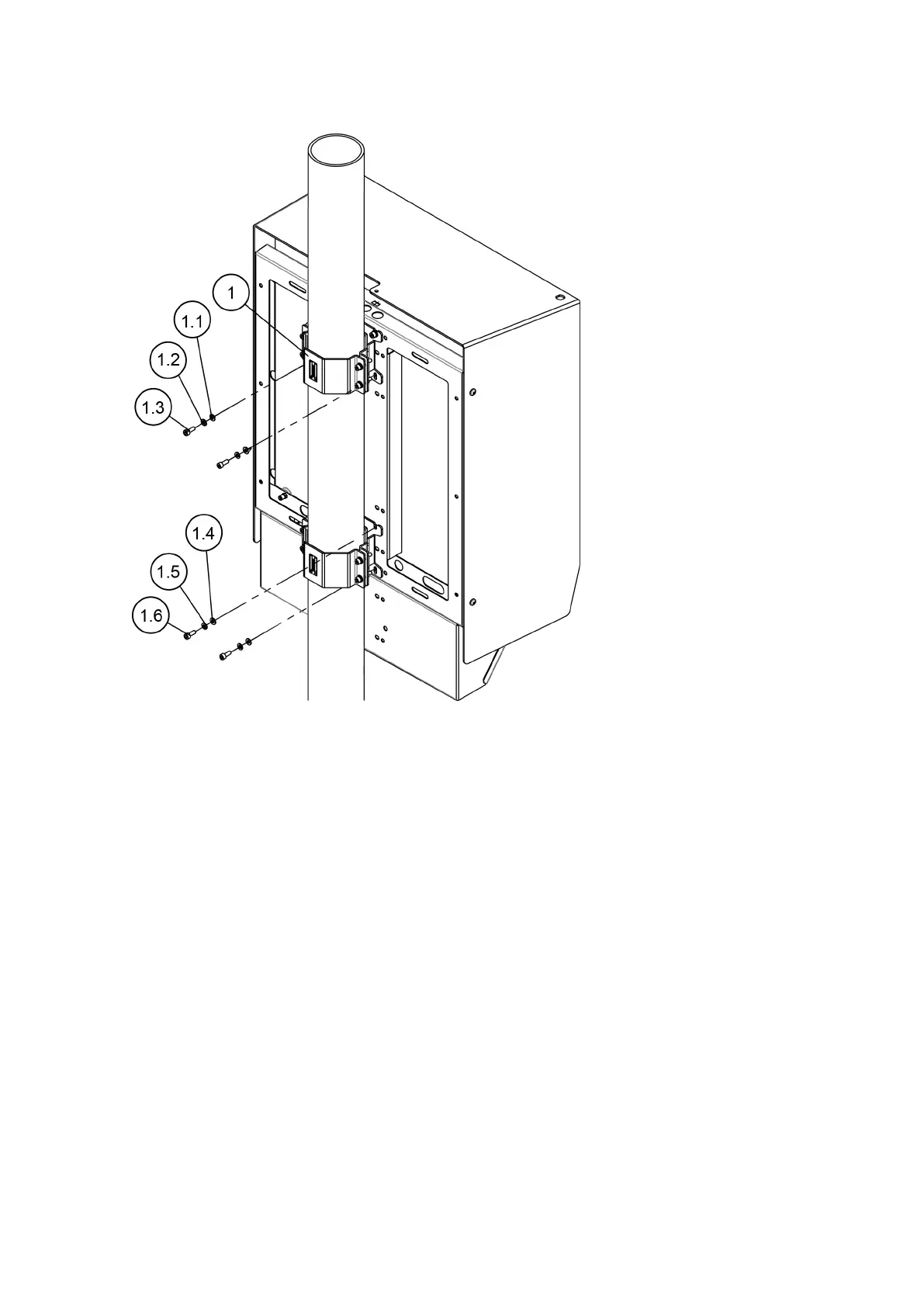

Figure 45 BOX652 and APPK-SET Mounting Kit
1 Clamp (2 pcs) (you can also use a third clamp, if needed)
1.1 Spring lock washer A6 DIN127 A4 (8 pcs)
1.2 Flat washer A6 DIN125 A4 (8 pcs)
1.3 Hex screw M6×30 DIN912 A4 (8 pcs)
1.4 Spring lock washer A6 DIN127 A4 (8 pcs)
1.5 Flat washer A6 DIN125 A4 (8 pcs)
1.6 Hex screw M6×16 DIN912 A4 (8 pcs)
In a mast installation, mount the enclosure below the lowest sensor support arm. Use the
correct APPK-SET mounting kit for the pole mast:
• APPK-SET60: Ø 60 mm (2.36 in) pole mast
• APPK-SET75: Ø 75 mm (2.95 in) pole mast
• APPK-SET100: Ø 100 mm (3.94 in) pole mast
• APPK-SET106: Ø 106 mm (4.17 in) pole mast
