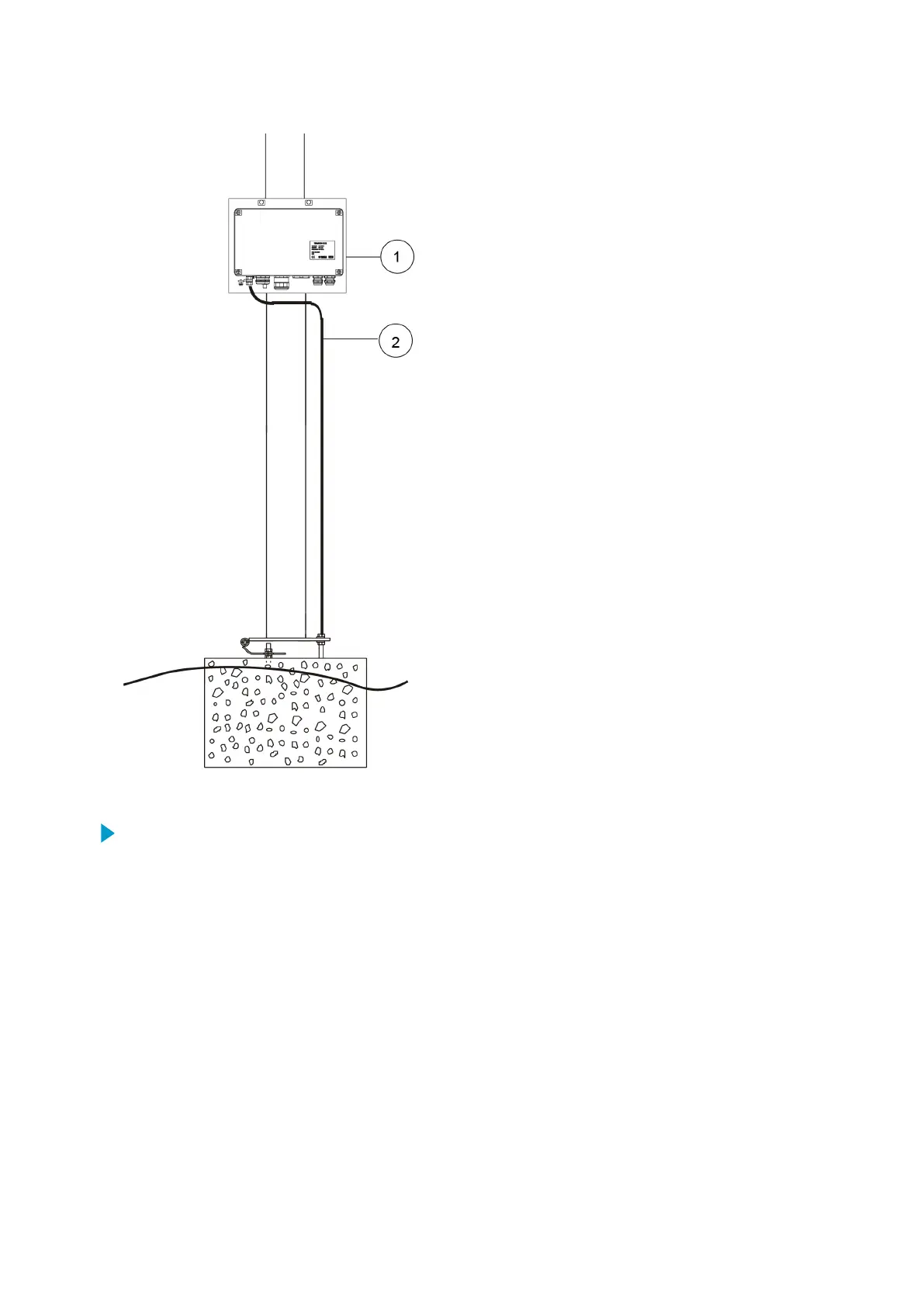

Figure 58 TERMBOX Grounding
1 TERMBOX
2
Equipment grounding cable (16 mm
2
/
0.02 in
2
jacketed cable)
1. Fasten the upper end of the equipment grounding cable to a special clamp on the
bottom of TERMBOX.
2. Fasten the lower end of the equipment grounding cable to the grounding connector at
the base of the mast.
13.6
 Grounding TERMBOX Signal Cable
Ground the cable shield to the CG3 ... CG8 cable glands (5 … 10 mm / 0.20 ... 0.39 in and
7 … 12 mm / 0.28 ... 0.47 in). Cable glands CG1 and CG2 (18 … 25 mm / 0.71 … 0.98 in) cannot
be grounded.
If cable glands CG3 ... CG8 are used, fold the cable shield back over the O‑ring of the plastic
portion and mount the metal cable gland.
AWS310/AWS310-SITE Installation Manual M211584EN-F
174
