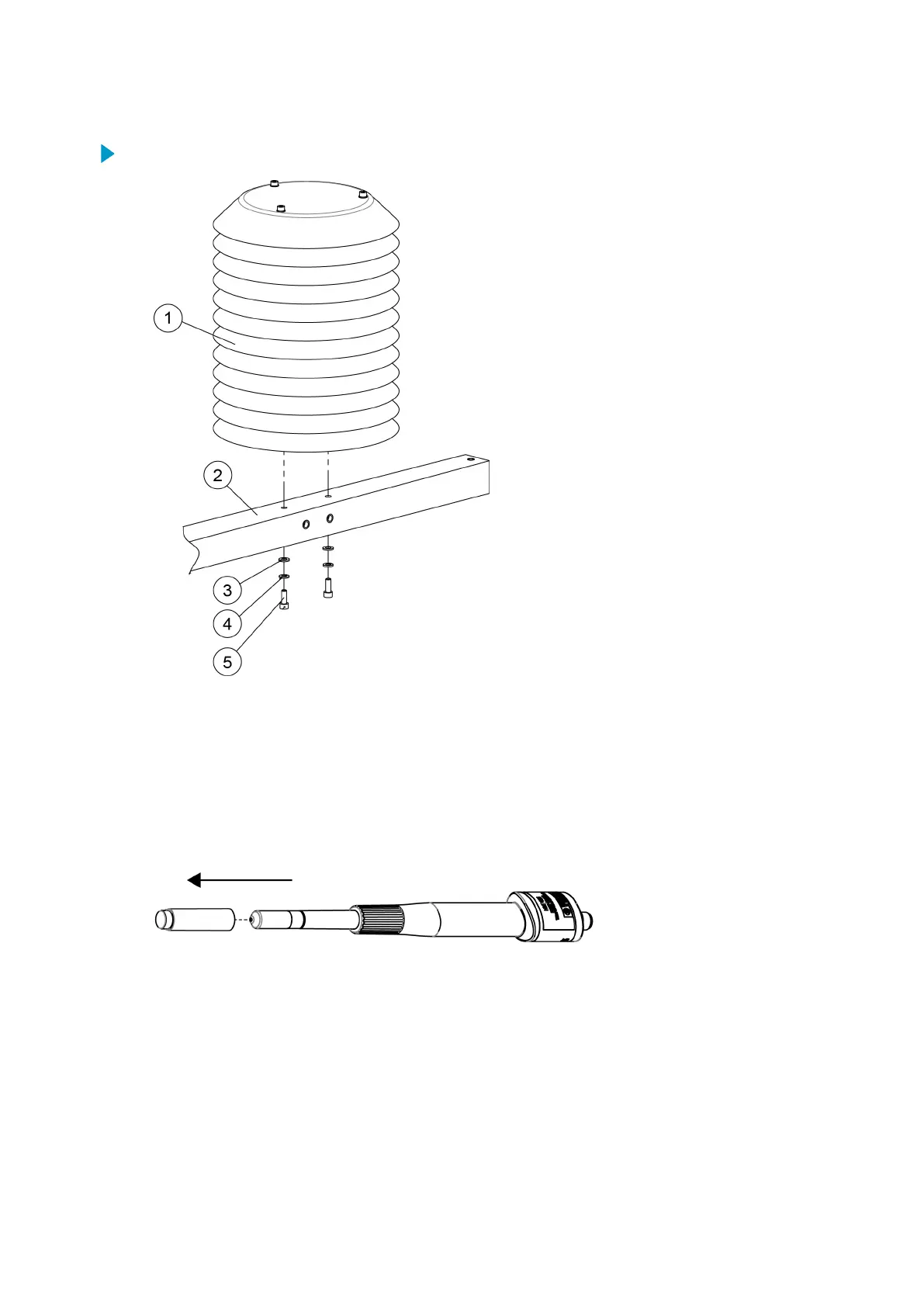

1. Install the radiation shield on the sensor support arm.

1 Radiation shield

2 Sensor support arm

3 Flat washer A6.4 DIN125 A4 (2 pcs)

4 Spring lock washer B6 DIN127 A4 (2 pcs)

5 Hex screw M6×16 DIN912 A4 (2 pcs). Tightening torque 5 Nm.

2. Remove the protective cover from the probe.

AWS310/AWS310-SITE Installation Manual M211584EN-F

114
