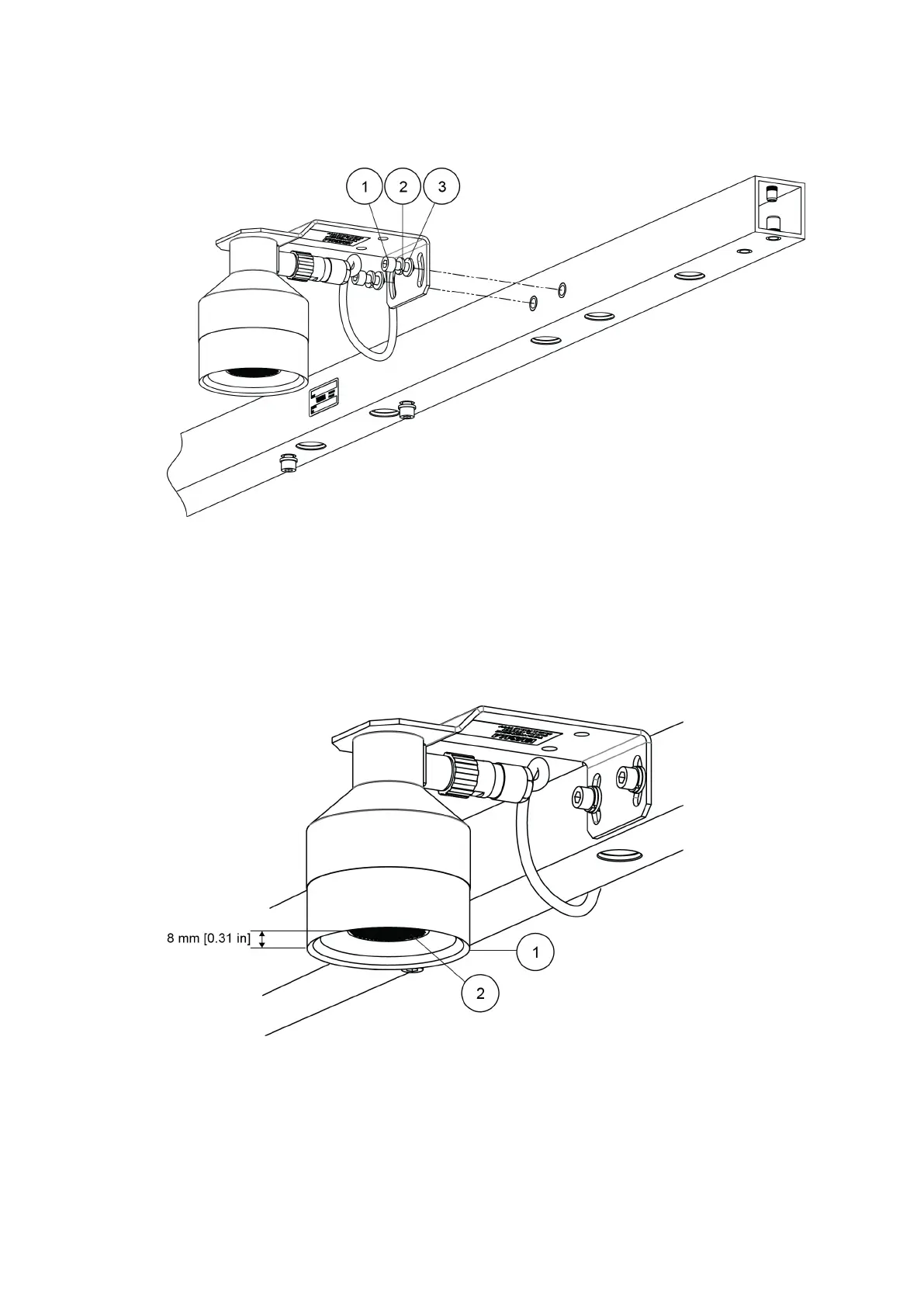

3. Attach the fixture plate to the sensor support arm.
1 Hex screw M6×16 DIN912 A4 (2 pcs). Tightening torque 5 Nm.
2 Spring lock washer B6 DIN127 A4 (2 pcs)
3 Flat washer A6.4 DIN125 A4 (2 pcs)
4. Measure the distance of the outer edge of the transducer housing from the ground.
The sensor installation height is measured from the grill. Add 8 mm (0.3 in) to the
distance between the outer edge and the ground.
1 Outer edge of the transducer housing
2 Sensor grill
5. Tie the cable to the sensor support arm with cable ties.
Chapter 11 – Sensor Installation to Sensor Support Arm
123
