Vaisala AWS310 User Manual

1. Measure and mark the place where the upper clamp is to be installed.
To install the enclosure at eye height, place the bottom of the upper clamp
approximately 1.45 m (4 ft 9 in) from the ground.

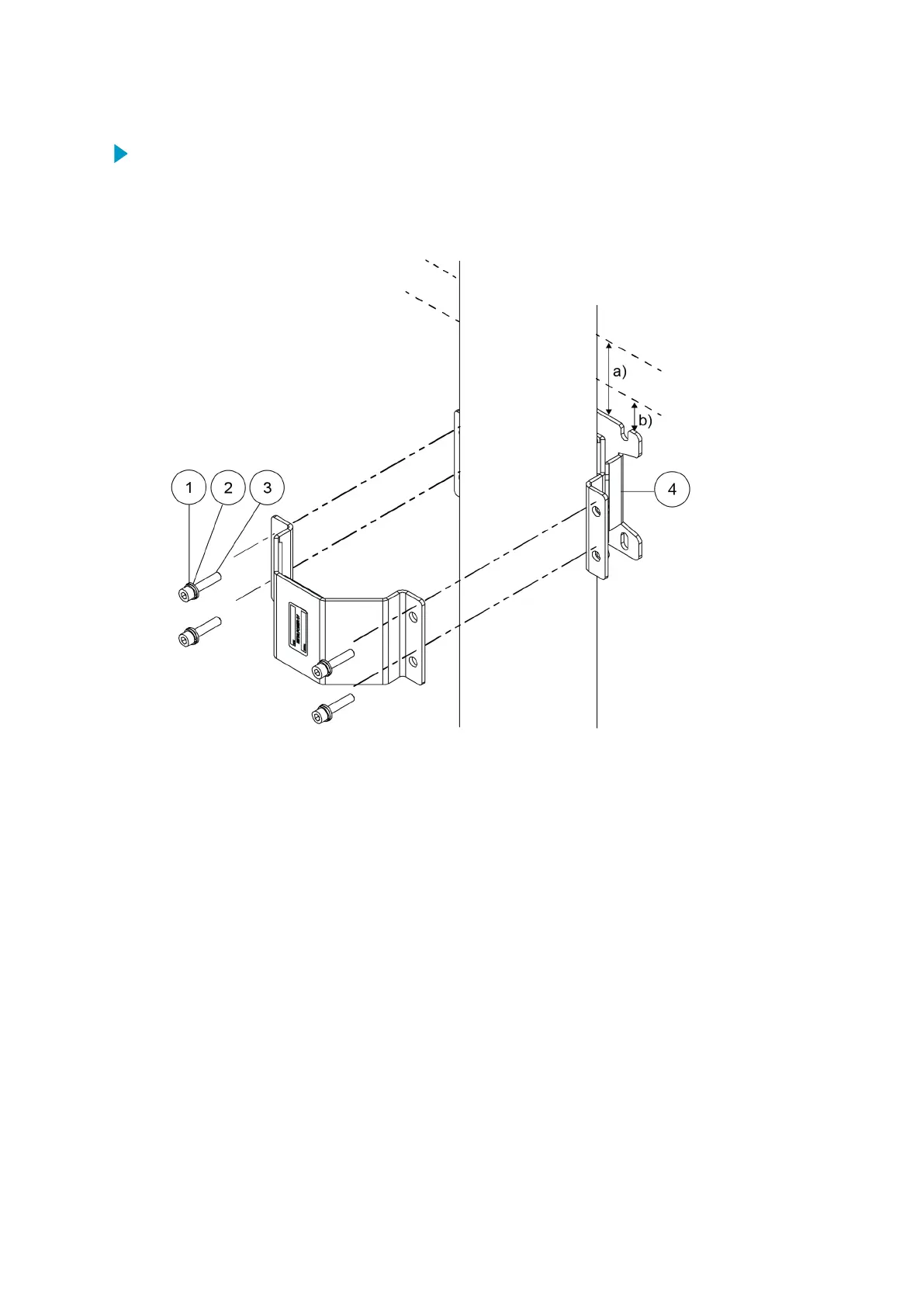

2. Attach the halves of the top clamp to the pole mast.
a) 7 cm (2.76 in) from the top of the clamp to the radiation shield
b) 4 cm (1.57 in) from the top of the clamp to the top of the mounting frame
1 Spring lock washer A6 DIN127 A4 (4 pcs)
2 Flat washer A6 DIN125 A4 (4 pcs)
3 Hex screw M6×30 DIN912 A4 (4 pcs)
4 Clamp
Chapter 12 – Enclosure Installation
143
