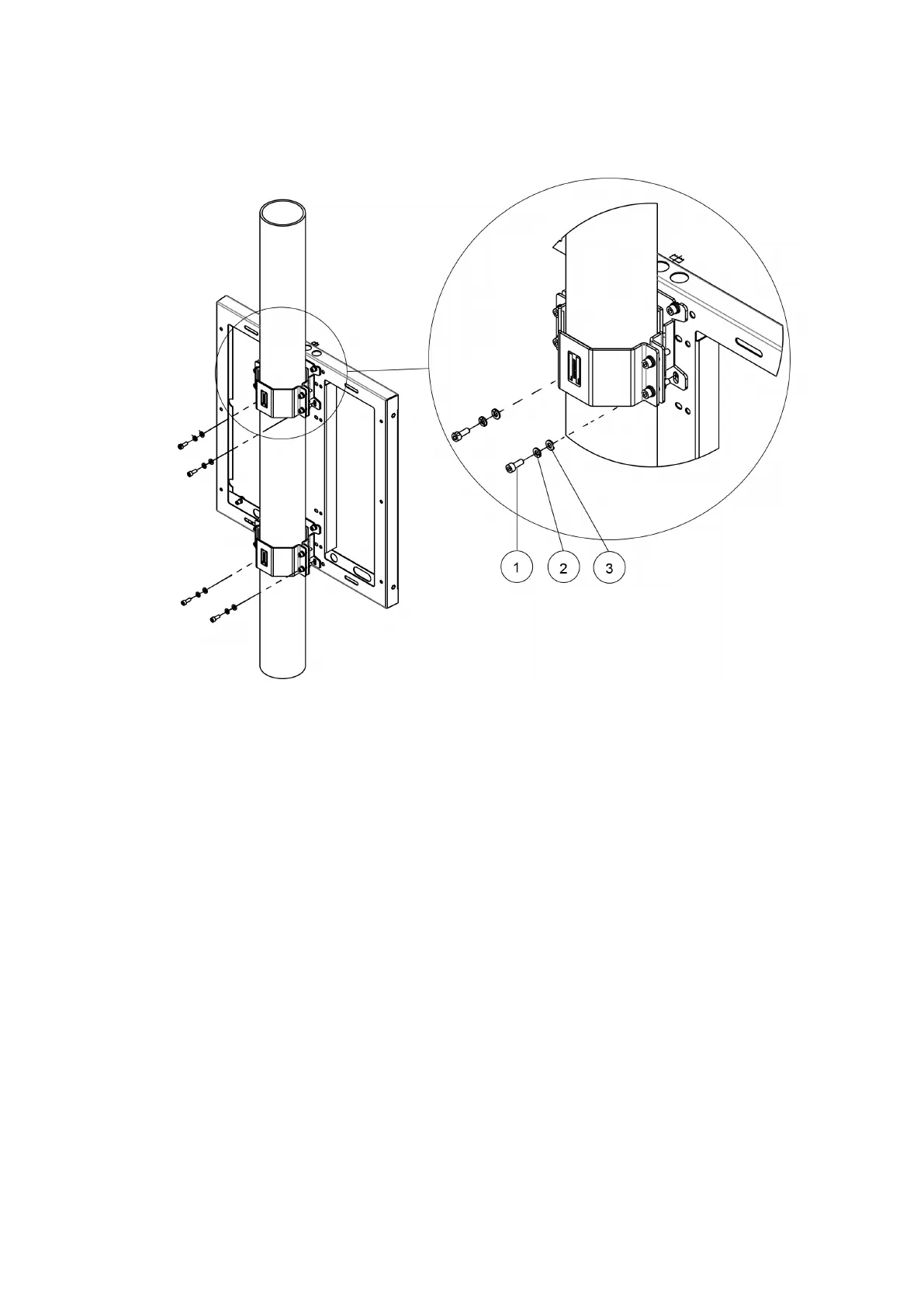

4. Attach the clamps to the mounting frame.

1 Hex screw M6×16 DIN912 A4 (4 pcs). Tightening torque 5 Nm.

2 Spring lock washer A6 DIN127 A4 (4 pcs)

3 Flat washer A6 DIN125 A4 (4 pcs)

Chapter 12 – Enclosure Installation

145
