17.10.1 Configuring controller inputs and outputs
This section covers:
l Editing an input below
l Editing an output on page231
l Configuring system latch and auto set outputs on page236
l X10 Config - Settings on page237
17.10.1.1 Editing an input
1. Select Configuration > Hardware > Controller.

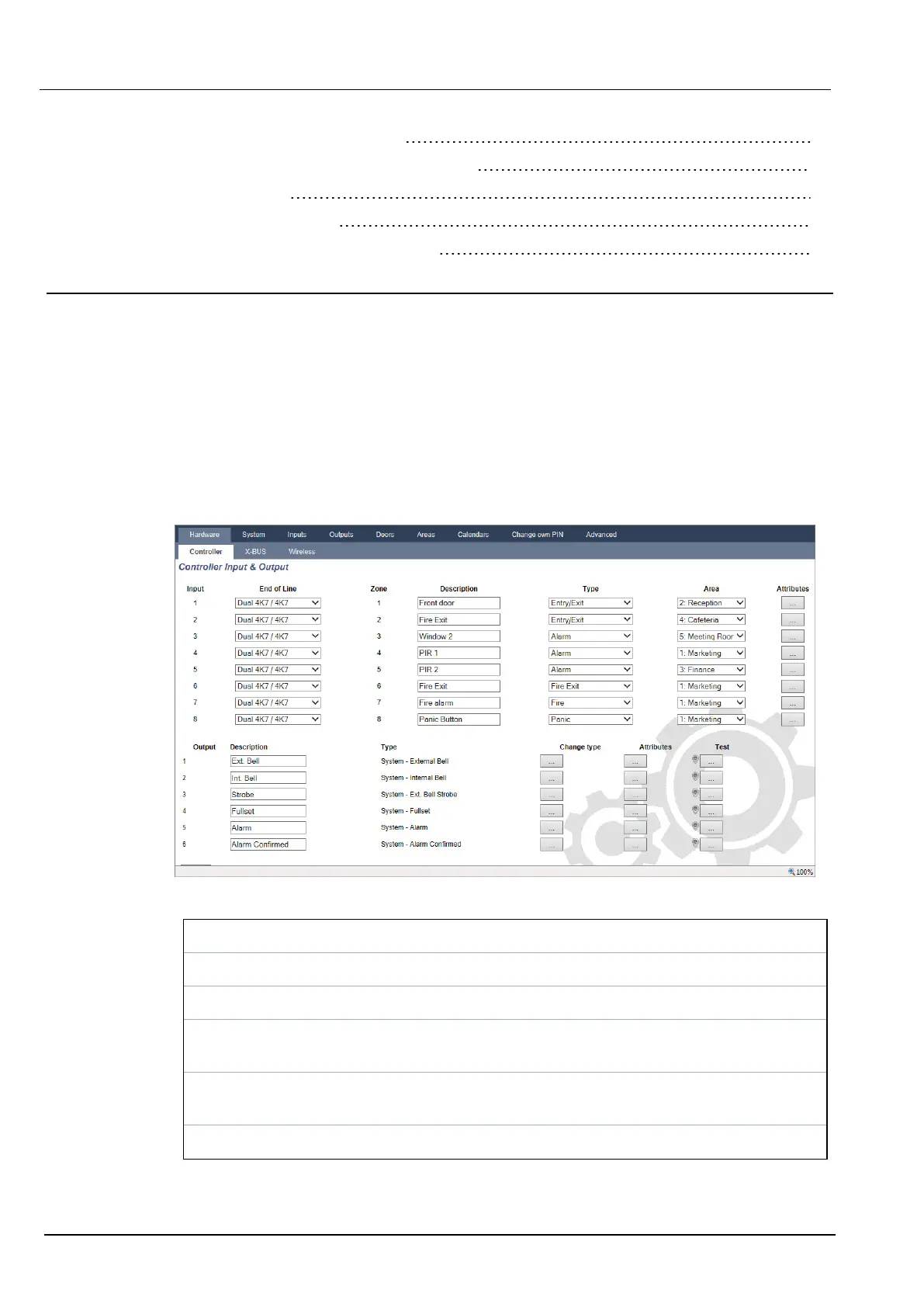

The following page will be displayed.
2. Configure the fields as described in the table below.
Input The number is presented for reference and can not be programmed.
End of Line Select the End of Line (EOL) for the zone input (default: 4K7).
Analyzed Displays if the sensor is an inertia/shock type sensor
Pulse
count
Pulse count programmed on the panel that will trigger an alarm from an
inertia/shock sensor.
Gross
Attack
The Gross attack programmed on the panel that will trigger an alarm from an
inertia/shock sensor
Zone Number of the zone on the panel
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 229 A6V10276959-d
