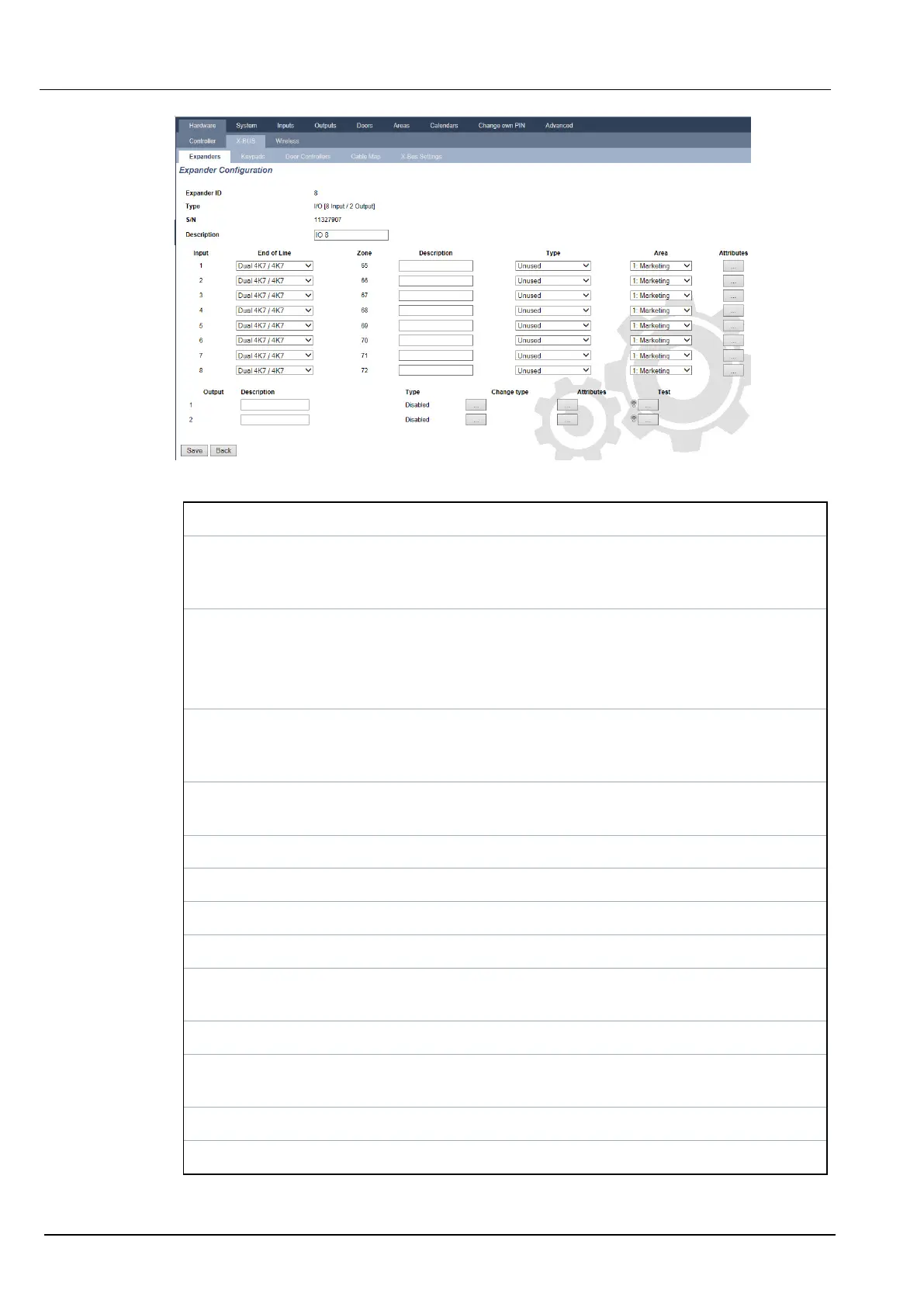

3. Configure the following fields:
Description For appearance on device LEDs.
Volume
Limit
Audio Expander Only: Speaker volume for the Audio Expander and satellites
(WAC 11). They are all wired in parallel. Note that the speaker on WAC 11 has a
potentiometer for fine-tuning the volume. Range is 0 min – 7 max or disabled.
Auxillary
Channnel
Audio Expander Only: This option should be enabled if satellites (WAC11) are
connected to this expander.
Note: This option, if enabled, powers the satellite microphones. The satellite
speakers are always enabled regardless of this setting.
End Of Line Select the correct End of Line (default: DEOL 4K7). This setting should match
the actual wiring of the input on the controller or expander. See Wiring the
system on page75.
(Zone)
Description
Provide a description for allocated zone.
(Zone) Type Select the zone type. See Zone attributes on page384.
Area Select the area.
Attributes Assign attributes as desired. See Zone types on page379.
Outputs/PSU outputs (Displayed for the SPCP355.300 Smart PSU ONLY)
Output The numbered output. The value in parentheses corresponds to the physical
output on the PSU board.
Description Provide description for output.
Change
type
Change the type of output as necessary.
Attributes Assign attributes to the output.
Test Test the output.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 239 A6V10276959-d
11.2018
