l Default Command Profile (this does not support audio video verification)
l Default FlexC Command User Name (FlexC) and Command Password (FlexC) for
controlling the panel from the RCT (for example, SPC Com XT)
l Auto Encryption with no password
1. To quickly configure a FlexC connection between a panel and an RCT (for example, SPC Com
XT), go to Communications > FlexC > FlexC ATS.
2. Under Add EN50136-1 ATS, choose one of the following to display the ATP Configuration :
l Add Single Path ATS - primary ATP only
l Add Dual Path ATS - primary and backup ATPs
l Add Dual Path Dual Server ATS - primary and backup ATPs, primary and backup servers

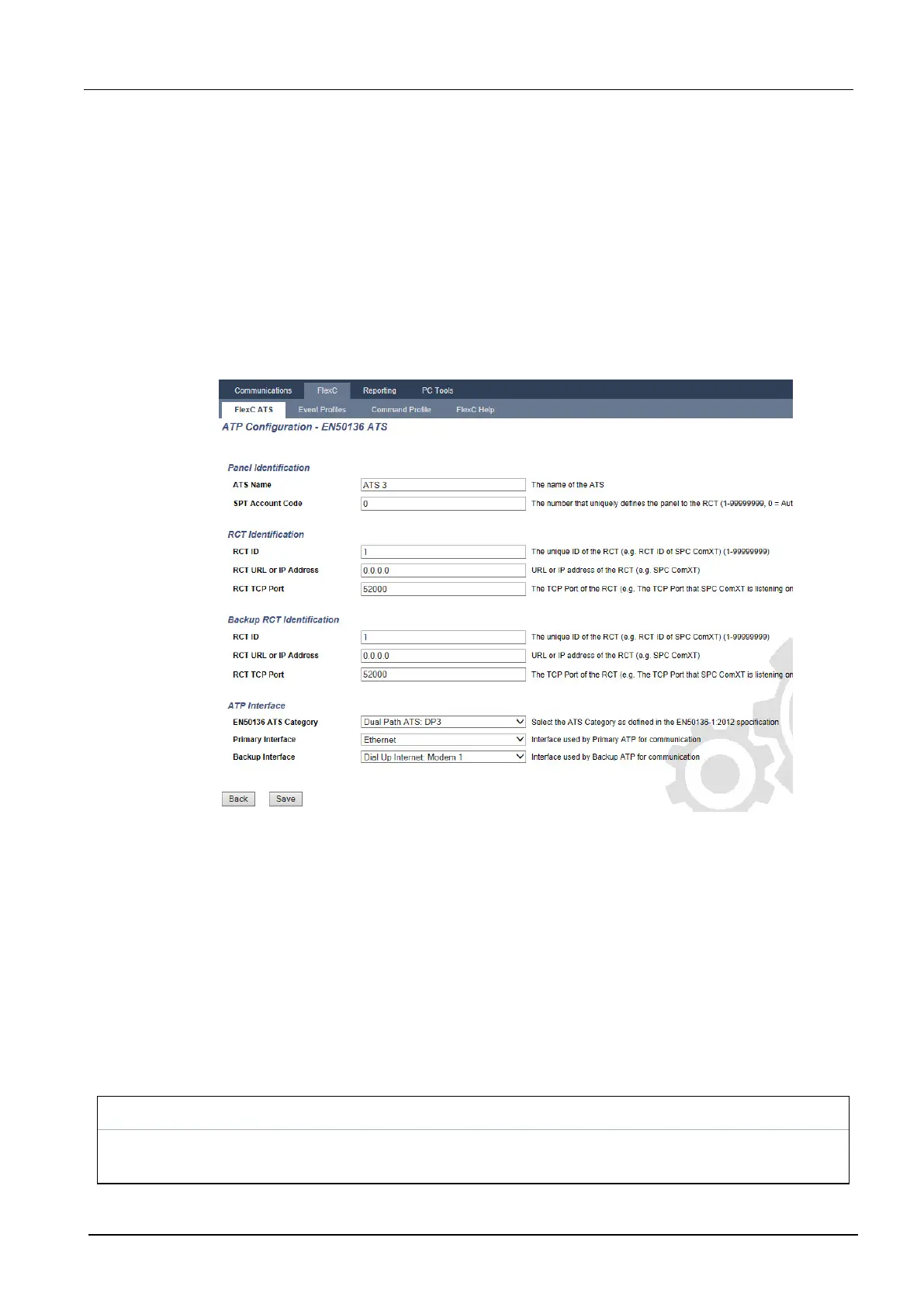

3. Complete the fields on the ATP Configuration - EN50136 ATS page shown in the table below.
At a minimum, you must complete the field RCT URL or IP Address to save. If you do not enter
an SPT Account Code, you can commission the panel using the ATS Registration ID which is
automatically generated when you save. The RCT operator must enter this ATS Registration
ID, for example, in SPC Com XT.
4. Click Save. The ATS Configuration page displays showing the ATS Registration ID and the
configured primary ATP or primary and backup ATPs in the Event Sequence Table.
5. On the ATS Configuration page, click Save to accept the default settings, for example, the
Default Event Profile, the Default Command Profile (including the FlexC Command User
Name and FlexC Command Password), and Auto Encryption with no password. To change
the settings, see Configuring an EN50136-1 ATS or Custom ATS on the next page.
6. Click Back. The ATS displays in the Configured ATS table.
Panel Identification
ATS
Name
Enter the name of the ATS. If you do not enter a value, the ATS name defaults to ATS 1, ATS 2,
etc.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 306 A6V10276959-d
11.2018
