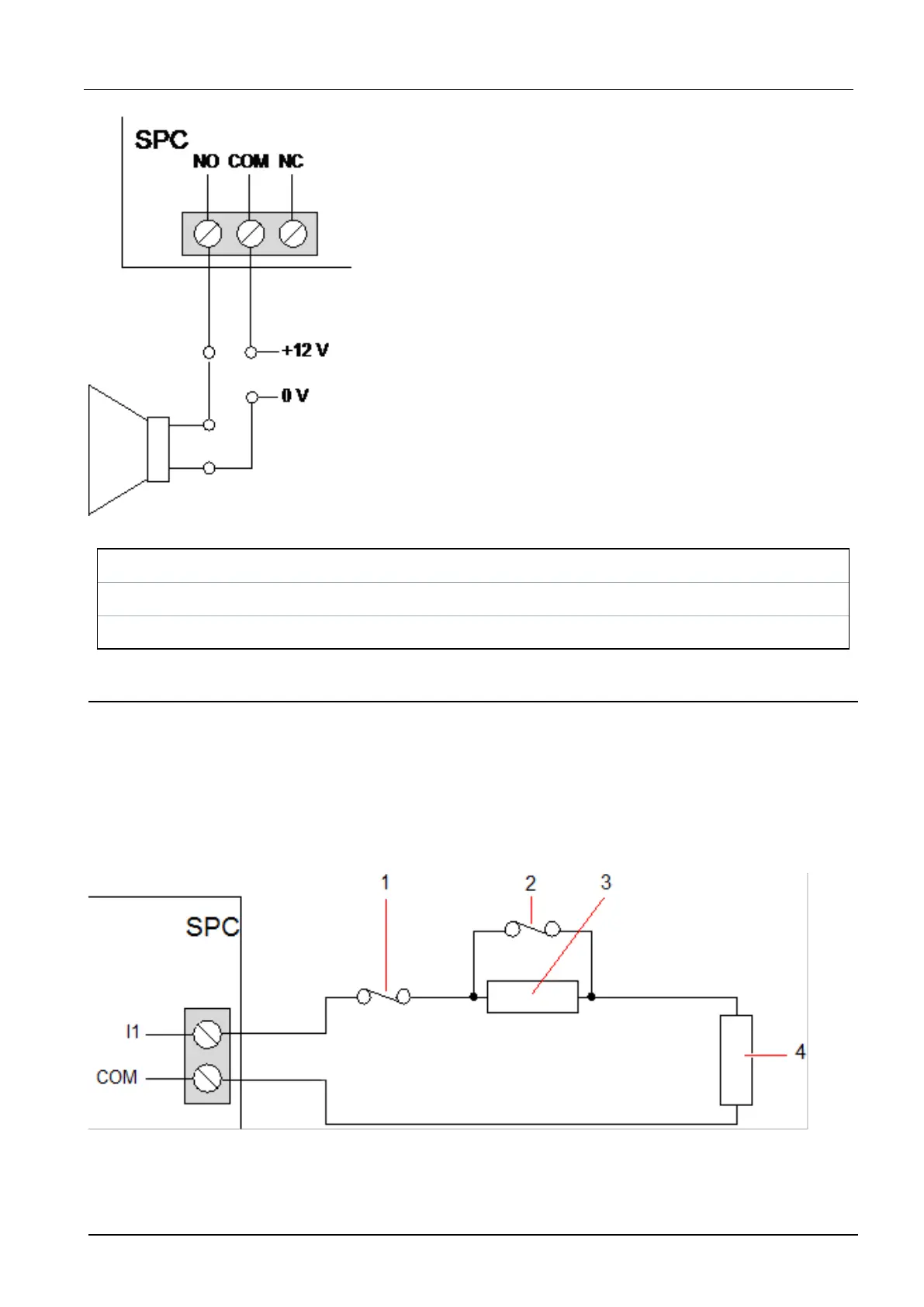

Standard wiring
NO Normally open terminal
COM Common terminal connection
NC Normally closed terminal
10.5 Wiring the zone inputs
The SPC controller has 8 on-board zone inputs. By default these inputs are monitored using end of line
supervision. The installer can choose from any of the following configurations when wiring the inputs:
l No End of Line (NEOL)
l Single End of Line (SEOL)
l Dual End of Line (DEOL)
l Anti-masking PIR
Default configuration (DEOL 4k7)
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Wiring the system
© Vanderbilt 2018 85 A6V10276959-d
11.2018
To Next Page
