VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
94 02.9704.6010 0
Color Module Assembly (continued)

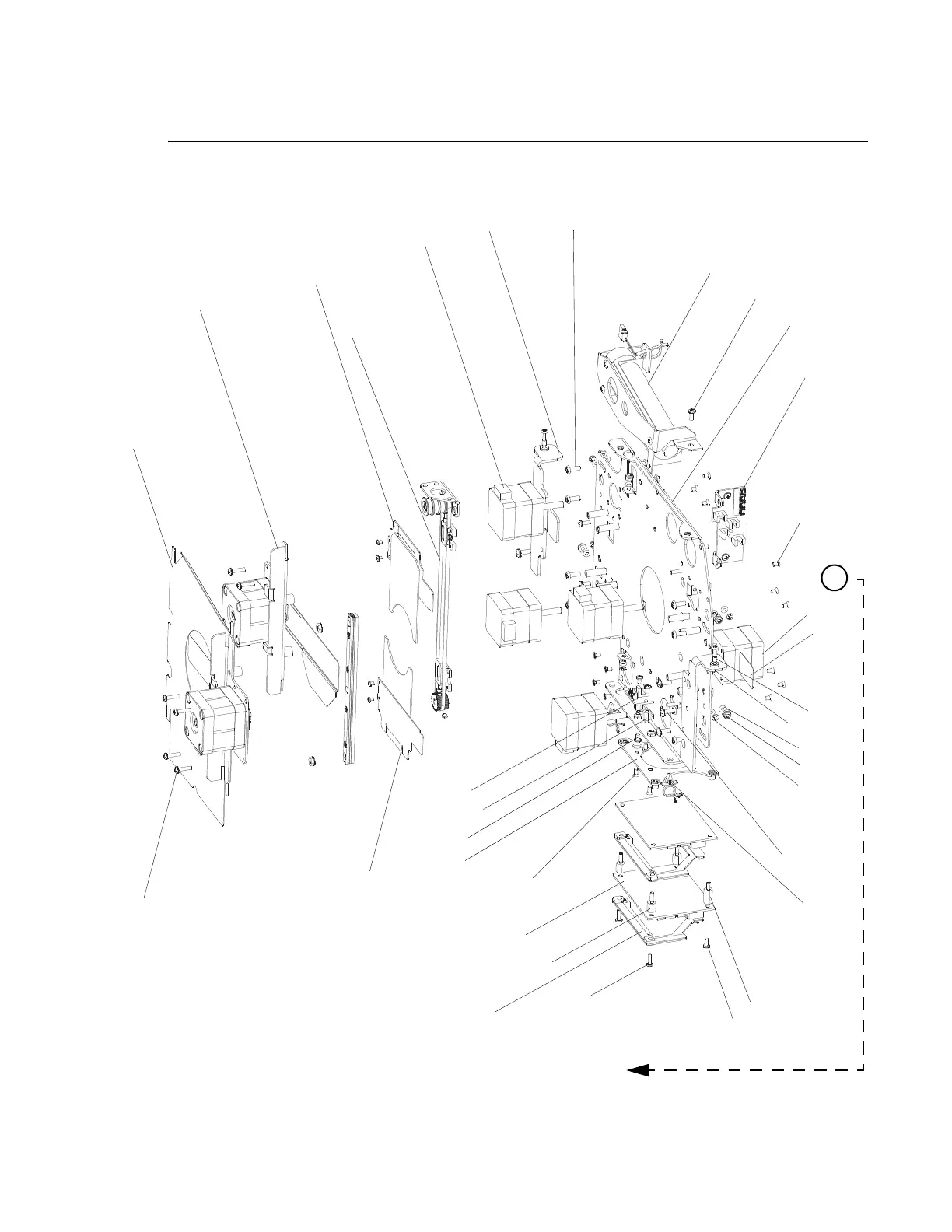

Figure 3-43: Color Module Assembly (Part 2)
*APPLY LOCTITE 242 TO THREADS
PRIOR TO INSTALLATION.
Refer to Figure 3-44 on page 95 for remainder of assembly.
A
32 (x4)
58
20
Dimmer
25
13
42 (x10)
18
45 (x4)
19
15
40 (x8)
24
39 (x3)
7 (x3)
51
31 (x2)
8 (x2)
54
44 (x2)*
30
53 (x2)
46 (x4)
6
38 (x16)*
33
57
50 (x2)
14
56 (x10)
35 (x5)
43 (x6)43 (x6)
55 (x2)
35 (x5)
52 (x5)
10
