ROUTINE MAINTENANCE : ROTATING GOBO REMOVAL AND INSTALLATION
02.9704.6010 0 19
2
CAUTION: Wear protective gloves or other protective covering while handling gobos to avoid
leaving fingerprints. If dirty, clean with isopropyl alcohol and a soft, lint-free cloth.
Note: For the standard load of rotating gobos, refer to “Rotating Gobo Wheel 1” on page 32 or
“Rotating Gobo Wheel 2” on page 33
Step 4. At rotating gobo wheel, slowly rotate wheel by hand until gobo to be removed is visible on
assembly.
Step 5. Grip gobo assembly and pull up to remove from luminaire head.
Step 6. Before installing gobo assembly into rotating gobo wheel assembly, make note of
relationship between carrier and main gear slot as illustrated in Figure 2-8.
a. Align gobo assembly gear timing marks WITH...
b. Slot in main gear on gobo wheel assembly. You may have to rotating gear by hand for
alignment.

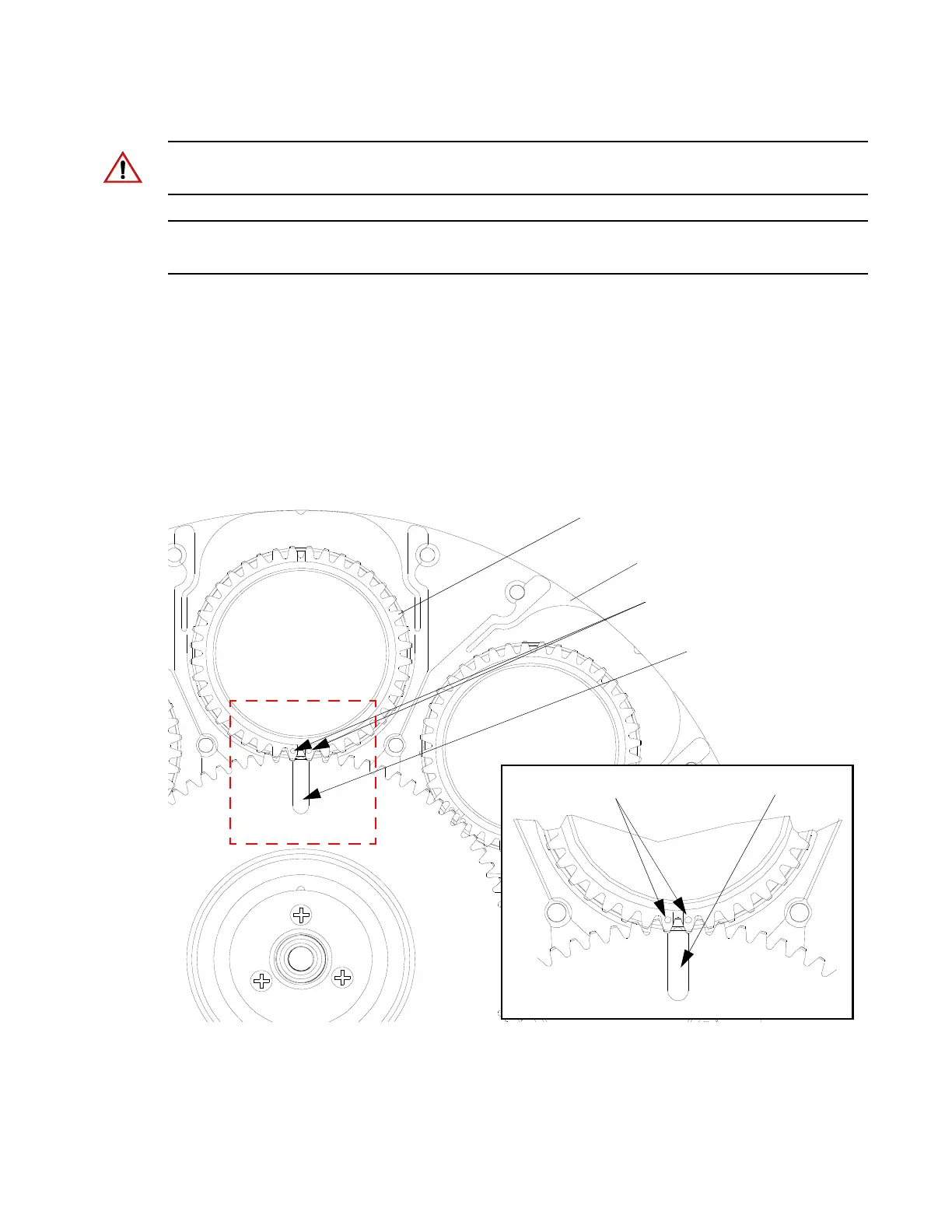

Figure 2-8: Rotating Gobo Wheel - Gobo Clocking
- Continued Next Page -
Rotating Gobo Assembly
Rotating Gobo Wheel Assembly
(b) Slot in main gear in
gobo wheel assembly
(a) Align gobo assembly timing
marks with...
Timing Marks Slot
