VARI❋LITE - VL4000 BEAMWASH LUMINAIRES SERVICE MANUAL
20 02.9704.6010 0

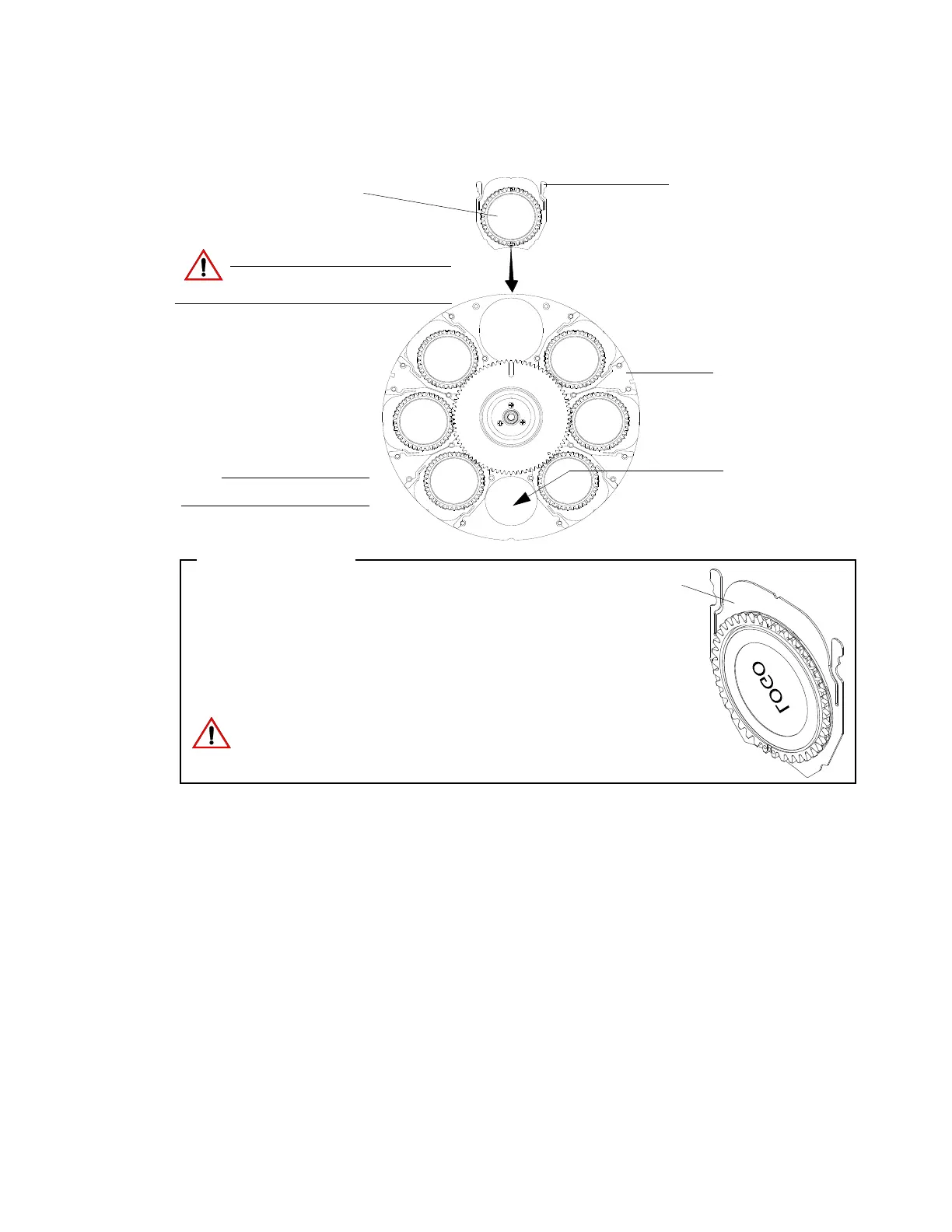

Figure 2-9: Rotating Gobo Wheel - Gobo Installation
Step 7. After ensuring main gear slot and gobo assembly timing marks are properly aligned (as
described in Step 7, install replacement rotating gobo assembly into gobo position. Note
orientation of rotating gobo assembly as indicated in Figure 2-9.
Step 8. After rotating gobo assembly is installed, reinstall head cover(s).
(gear side towards front of
luminaire)
Open Position
(no gobo)
Note:
Assembly shown for clarity.
Rotating Gobo Assembly
Front of Assembly Shown
(side towards front lens)
Rotating Gobo
Wheel Assembly
Rotating Gobo Assembly
Rotating Gobo
Assembly Orientation
VERY IMPORTANT!
Side shown (to right) is non-reflective side. The non-reflective side
must face the front lens.
Rear of gobo is the REFLECTIVE side and MUST be towards lamp.
VL4000 BeamWash Luminaires accept glass gobos only. Use of
metal gobos in these luminaires may damage gobo assembly and
will void the luminaire warranty.
Retaining Tabs
(Retaining clips need to be
seated in pins but are not
used to aid in removal)
CAUTION:
Do not touch glass with bare fingers.
Handle by gobo carrier only.
