HEAD ASSEMBLY : GOBO/ANIMATION MODULE ASSEMBLY
02.9704.6010 0 75
3
Gobo/Animation Module Assembly (continued)

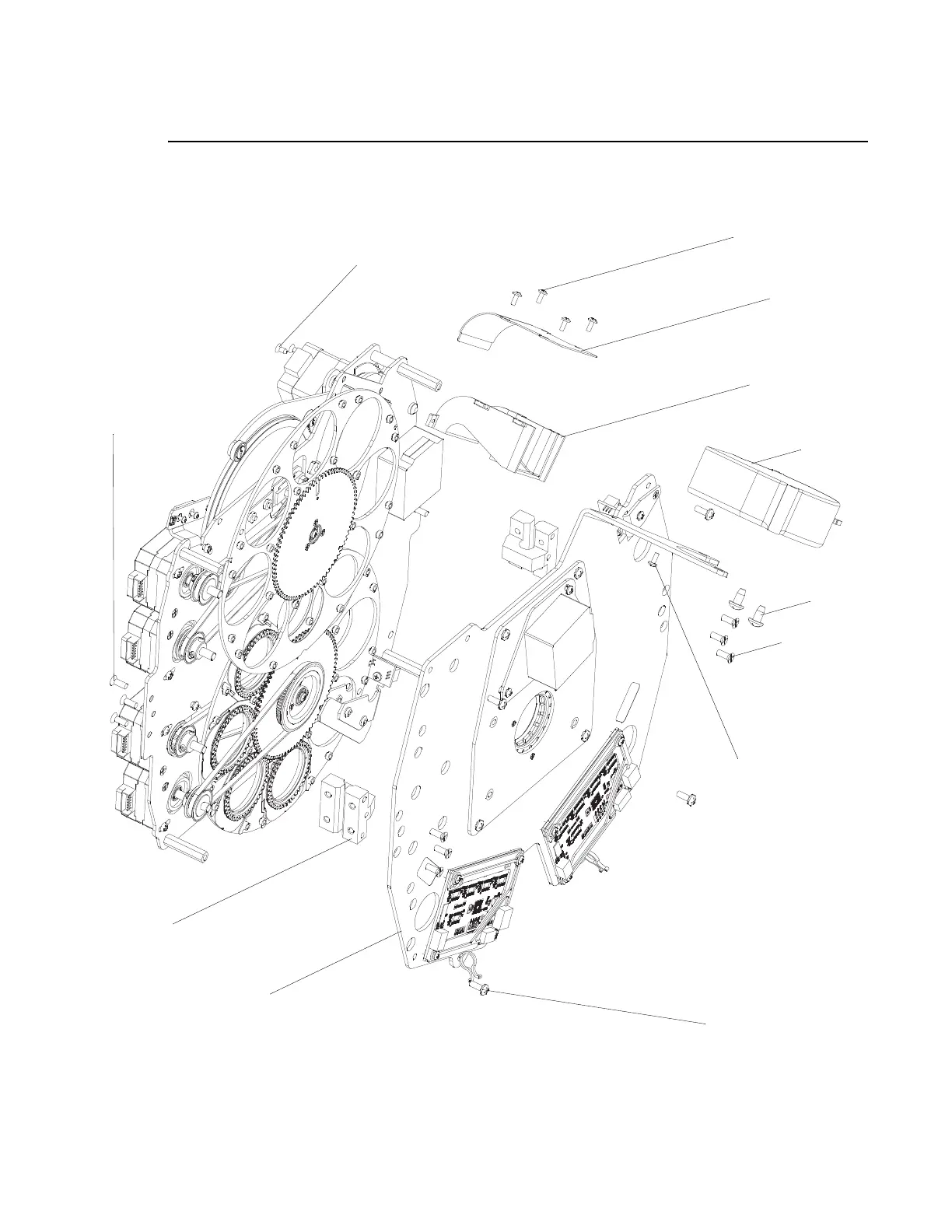

Figure 3-32: Gobo/Animation Module Assembly (Part 3)
8
38 (x5)
*APPLY LOCTITE 242 TO THREADS PRIOR TO INSTALLATION.
6
25
44 (x2)
38 Ref
40 (x6)*
22
34 (x4)
12 (x2)
40 Ref*
39 (x2)
