Installing the machine
12
Original instructions: N4 Impression
Document version: H – 05/2019

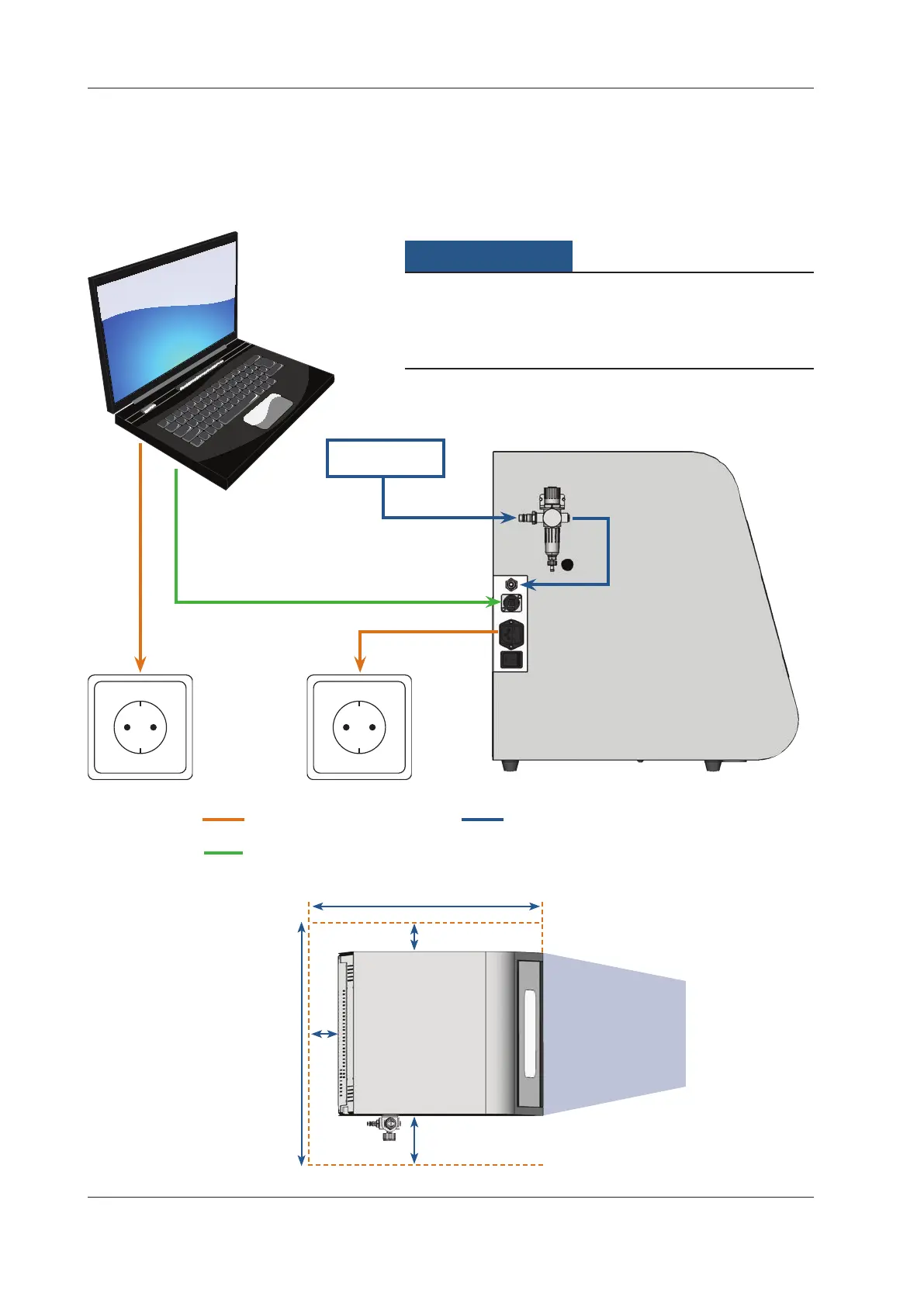

4.3 Machine installation (scheme)
External compressed
air supply
Power connection
USB cable connection
Pneumatic connection
10
25
10
71
55
Work area
All measurements in centimetres
NOTICE
Damaging of the machine due to incorrect installation
h Carry out the installation in the given order.
h Especially remove the transport lock before installing the CAM com-
puter (
 chapter 4.7, page 15).
Distances to maintain
Connections
