Machine maintenance and cleaning
24
Original instructions: N4 Impression
Document version: H – 05/2019
6 Machine maintenance and cleaning
6.1 Denition of wear parts
The machine and the extra equipment are warranted for a pe-
riod of 24 months or 2000 operating hours, whatever comes
rst.
Thewarrantycoversdefectsinmaterialsorfabrication
as long as the regulations for using the machine in all docu-
ments are followed.
Of course, t
he war
ranty also covers wear parts as long as their
failure cannot be attributed to the function-related abrasion.
The wear parts that are mentioned below can already wear
down within the warranty period due to their normal func
-
tion. The average useful life of the wear parts can be seen in
the follo
wing table.
Use these values to determine operating costs, to plan your
spare part stock as well as to create individual maintenance
and service plans.

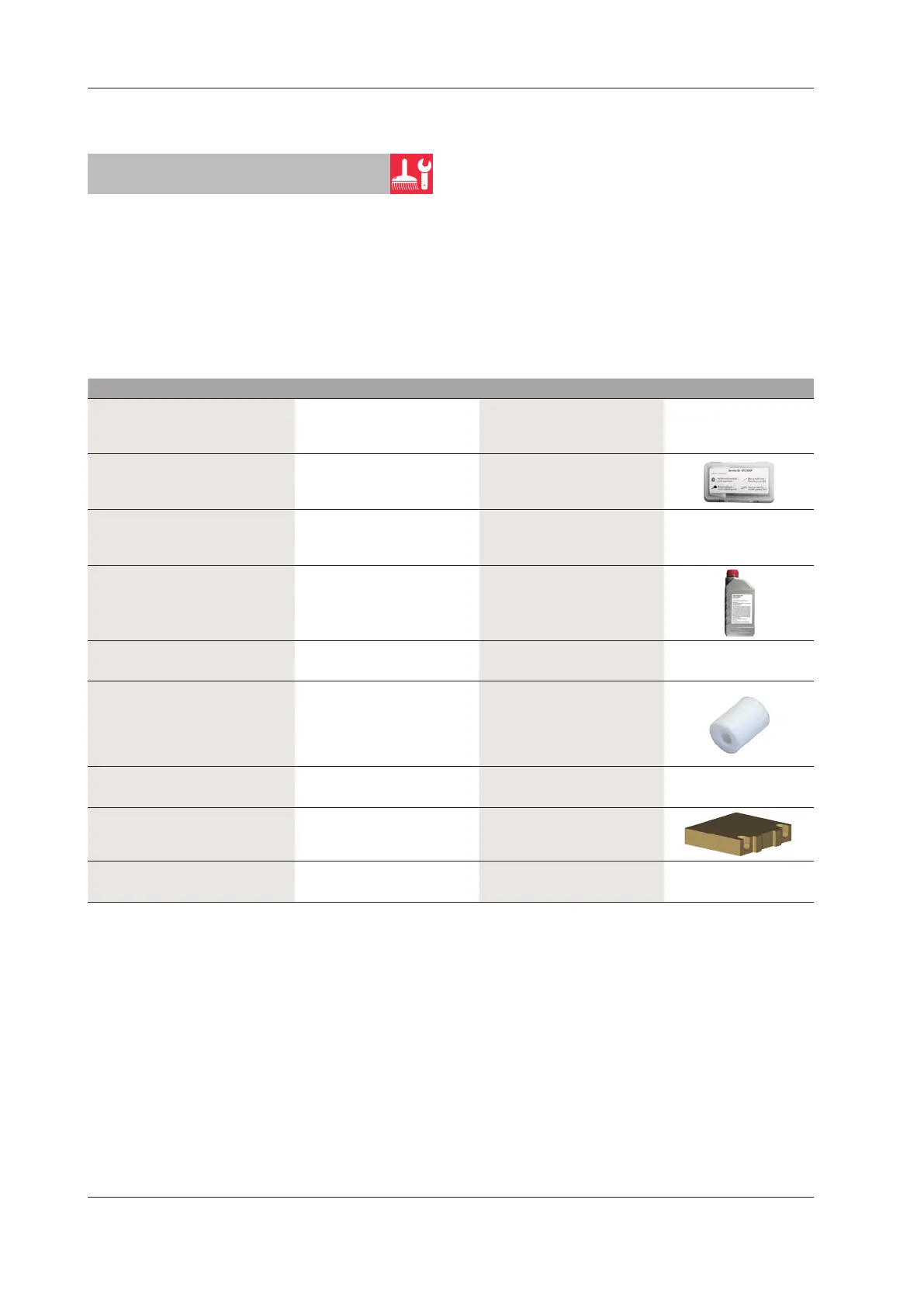

6.2 Maintenance table
Task Recommended interval Procedure / Utensils Illustration spare part
Cleaning the working chamber & the
measuring key
(
 chapter 6.4, page 25)
1 x per day, more often if the
chamber is very dirty
Wet vacuum cleaner, brush, wet
cloth, never use compressed air
Cleaning the collet chuck
(
 chapter 6.5, page 26)
1 x per week, in case of rotational
imperfections, in case of bad
machining results
Spindle service set
Checking the hoses, cables & con-
nections
( chapter 6.6, page 27)
1 x per week Visual inspection
Changing the cooling liquid, cleaning
the cooling liquid tank and the coarse
ltermat
(
 chapter 6.9, page 29)
10 - 20 operating hours* Cloth, water & cooling lubricant,
pH testing strips, possibly a
bucket
Cleaning the housing
( chapter 6.11, page 30)
As necessary Cloth, water, possibly a mild
cleaner
Service unit:
a) Checking for contamination
b)Cleaning/exchangingthelter
cartridge
( chapter 6.12, page 31)
a) Necessarily every day
b) With visible pollution or every
2 years*
Possiblyanewltercartridge
Exchanging the main fuse
( chapter 6.13, page 31)
In case of a defect fuse in the
power supply of the machine
Replacement fuse of the type
T6,3A L250V
Calibrating the axes
(
 chapter 6.14, page 32)
Only if necessary Calibration specimen, micrometre
Inspection by service technician
(
 chapter 6.3, page 25)
After 2000 operating hours* or
every 2 years*
* These are recommendation guidelines. Depending on the processing material and how well the machine is cleaned, these
valuesmaydier.
