VHF N4 Impression - Working Chamber; Cooling Liquid Tank

Machine description
9
Original instructions: N4 Impression
Document version: H – 05/2019
3.3 Working chamber
The machine processes all blanks in the working chamber.

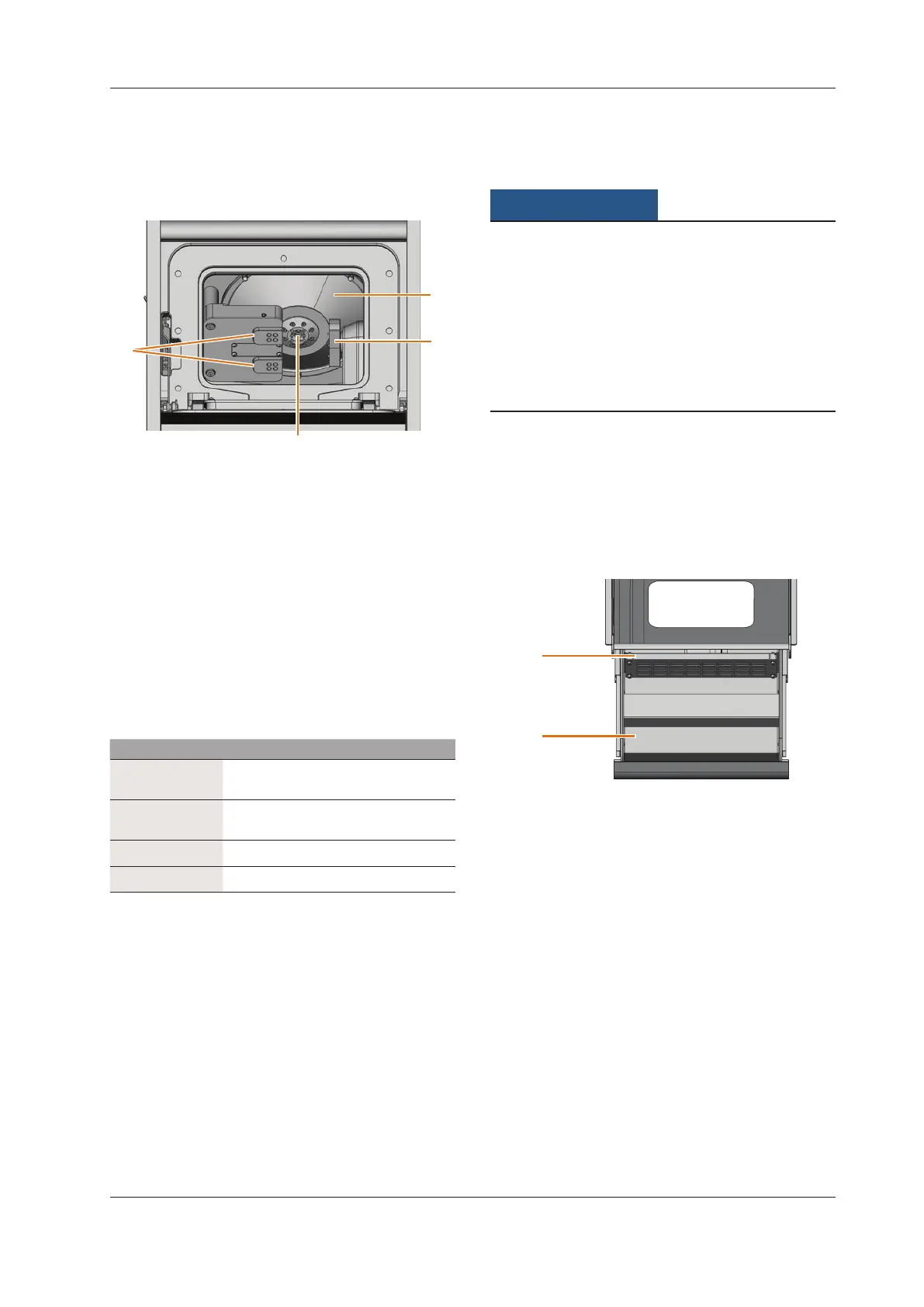

Fig. 3:
3
1
4
2
The working chamber of the N4 Impression
[1] Tool magazines for up to 8 tools in total
[2] Bellow
[3] Blank holder and rotational axis
[4] Spindle with collet chuck for picking up tools
Colors of the working chamber lighting
n
Iftheworkingchamberlightingisinsucient,provide
additional lighting.
Your N4 Impression illuminates the working chamber in dif
-
ferent colors. The color will change depending on the state
of
themachine.Youndthecolorsandrespectivemachine
statuses in the following table:
Colour Status
Green Machine is ready, working chamber door
closed
White Machine is ready, working chamber door
open
Blue Machine is executing a job
Red A machine malfunction has occurred
3.4 Cooling liquid tank
NOTICE
Damaging of the machine when using a non-
approved cooling lubricant or machining with no
lubricant at all
The approved cooling lubricant protects the machine from
damage caused by wet machining.
h Only use cooling lubricants that have been approved for
your machine by customer service.
h Before wet machining, ensure that the proper amount of
cooling lubricant has been added to the cooling liquid.
Youllthecoolingliquidtankwiththecoolingliquid.The
cooling liquid is an emulsion of water and the cooling lubri
-
cant Tec Liquid Pro (chapter
4.5, page 14).
After injection into the working chamber, the cooling liquid
owsbackintothetank.Duetothisclosedcircuit,thelossof
cooling liquid during processing is minimal.
Awashablecoarseltermatisinstalledinthecoolingliquid
tank and protects the pump from dirt.
Fig. 4:
1
2
The cooling liquid tank of the N4 Impression
[1] Coarseltermat
[2] Tank for the cooling liquid
h Only open the cooling liquid tank when the working
chamber door is closed.
h Never open the cooling liquid tank while the machine
is operating.
h Immediately wipe up leaking cooling liquid under the
machine after opening the cooling liquid tank.
h Always close the cooling liquid tank completely.
