Section 2: To complete the related setting at the Station No. 1 for the #5~#8 axes.
According to the positioning mission to ll in the parameters of the Y0~Y3 (#5~#8 axes).

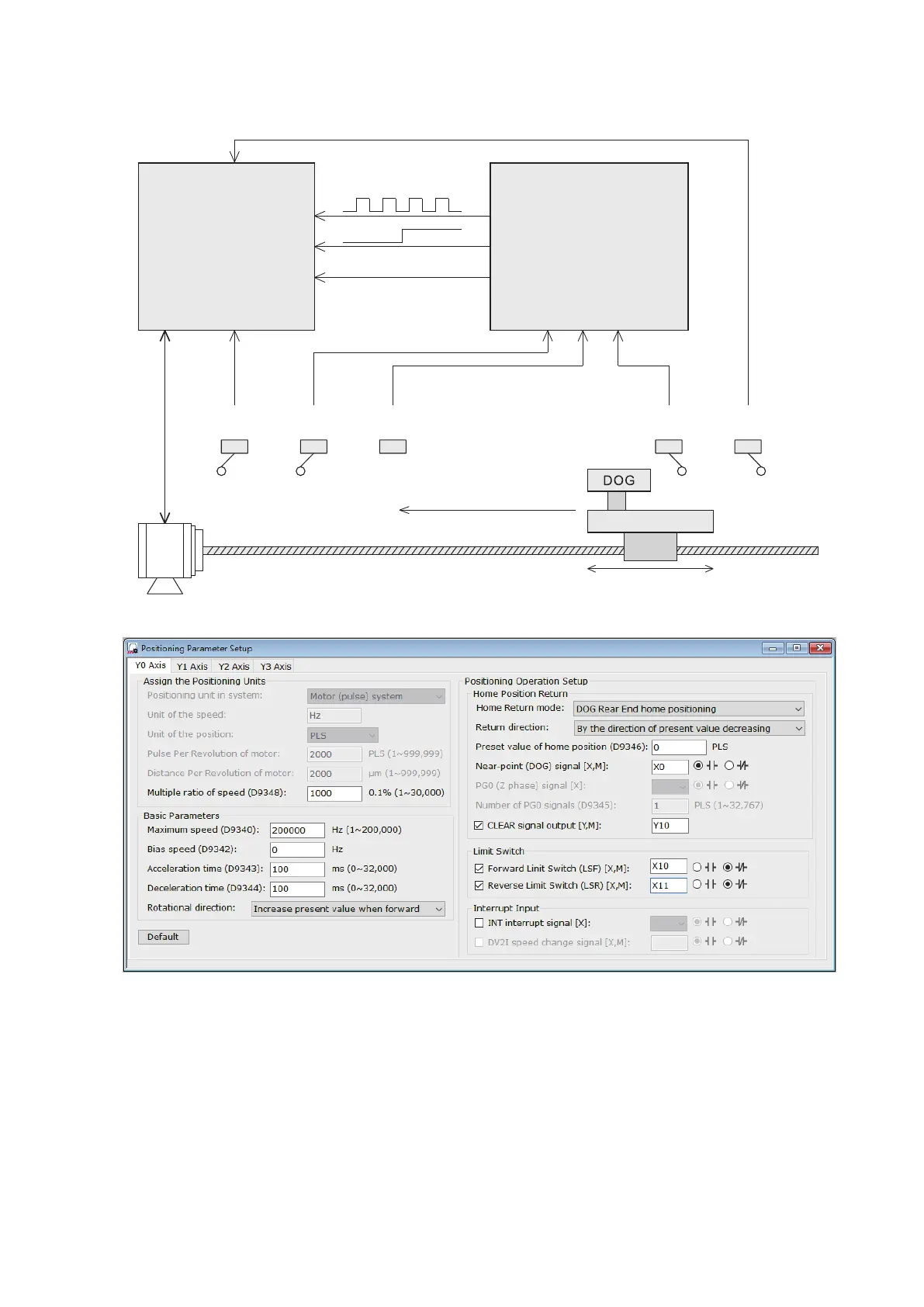

The diagram and picture are the brief wiring and setup example for the Y0 (#5 axis).
LSR
Reverse limit
switch
LSN
Reverse limit
switch
DOG
Near point
signal
LSF
Forward limit
switch
LSP
Forward limit
switch
Servo
motor
Direction of home positioning
Sliding table
Driving screw
Servo motor drive
Pulse output Y0
Direction output Y4
Clear signal Y10
