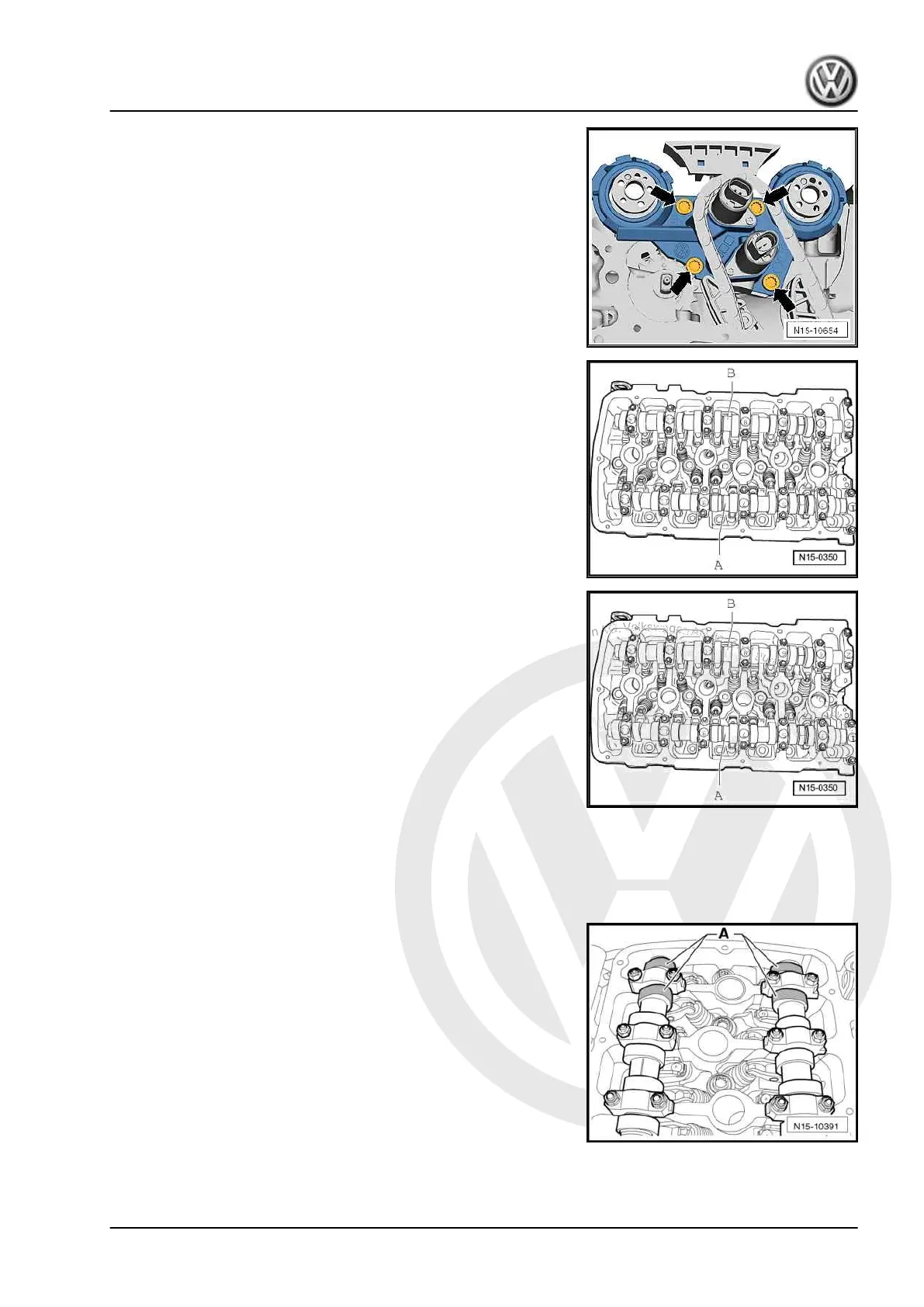

– Undo bolts -arrows- from valve timing housing and pull valve
timing housing off cylinder head.
– Lay camshaft timing chain aside.
A - Inlet camshaft
– First remove bearing caps 1 and 13.
– Remove bearing caps 3 and 11.
– Remove bearing cap 7.
– Loosen bearing caps 5 and 9 alternately and diagonally.
B - Exhaust camshaft
– First remove bearing caps 2 and 14.
– Remove bearing caps 4 and 12.
– Remove bearing cap 8.
– Loosen bearing caps 6 and 10 alternately and diagonally.
Continuation for both camshafts
– Carefully remove camshafts and lay aside on clean surface.
– Remove roller rocker fingers together with support elements
and lay aside on a clean surface.
– Ensure that roller rocker fingers and support elements are not
interchanged.
Installing:
Conditions:
• When installing camshafts, No. 1 cylinder cams -A- must point
upwards.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
3. Valve gear 107
