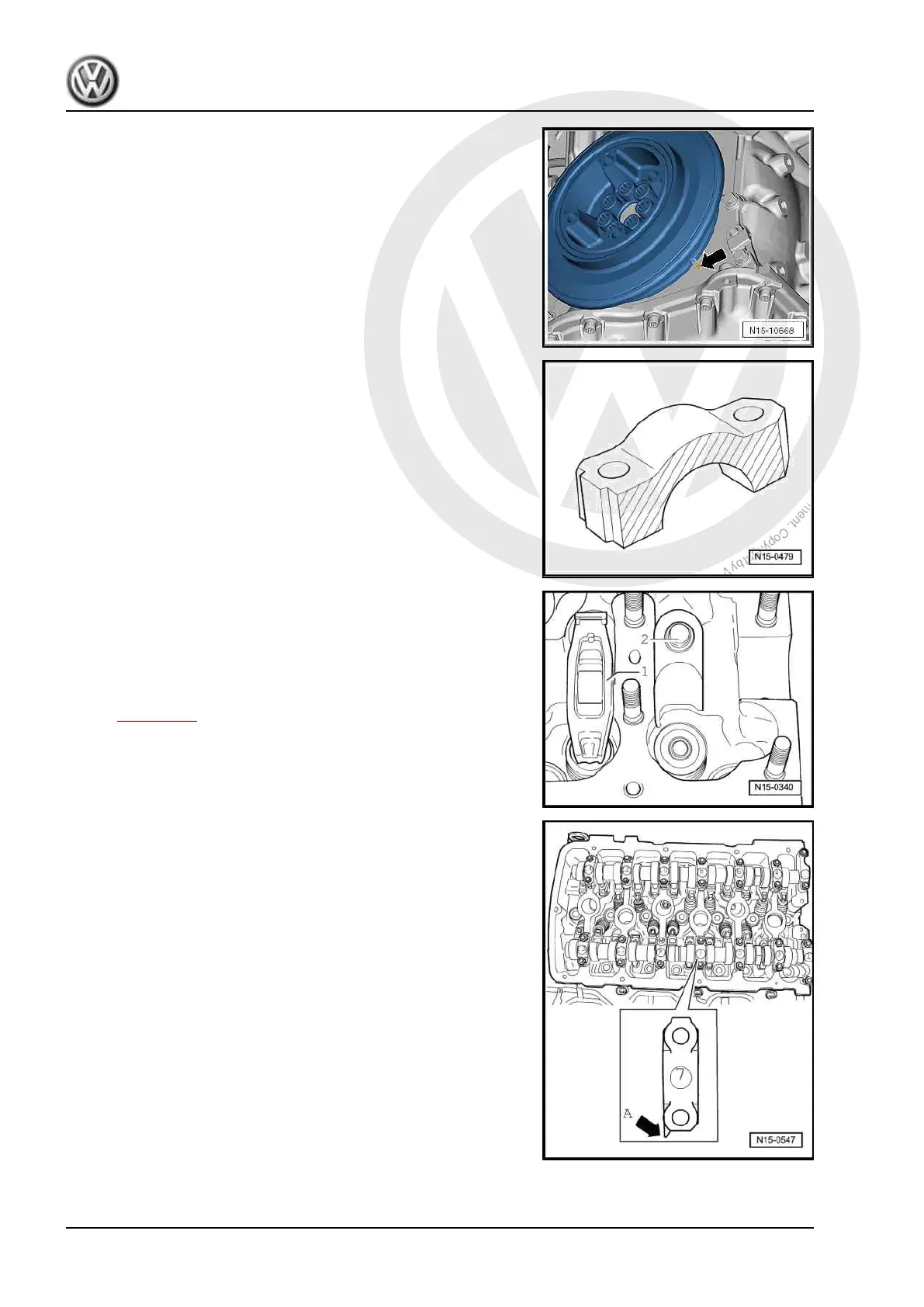

Procedure:
– Turn crankshaft using counterhold - T10172- in engine direc‐
tion of rotation to TDC No. 1 cylinder.
– Lightly coat contact surfaces of bearing caps 7 and 8 with uni‐
versal grease - G 052 735 A2- .
– Install supporting elements in cylinder head and fit respective
roller rocker finger onto respective valve stem end or support‐
ing element.
– Ensure that all roller rocker fingers -1- seat properly on valve
stem ends and are clipped into their respective support ele‐
ments -2-.
– Oil running surfaces of camshafts.
– Carefully place each camshaft in its respective bearing in the
cylinder head. When doing this, observe camshaft identifica‐
tion ⇒ page 110 .
– Observe fitting position of bearing caps.
Fitting position of camshaft bearing caps
Points of bearing caps -arrow A- of inlet and exhaust camshafts
face outwards.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
108 Rep. gr.15 - Cylinder head, valve gear
