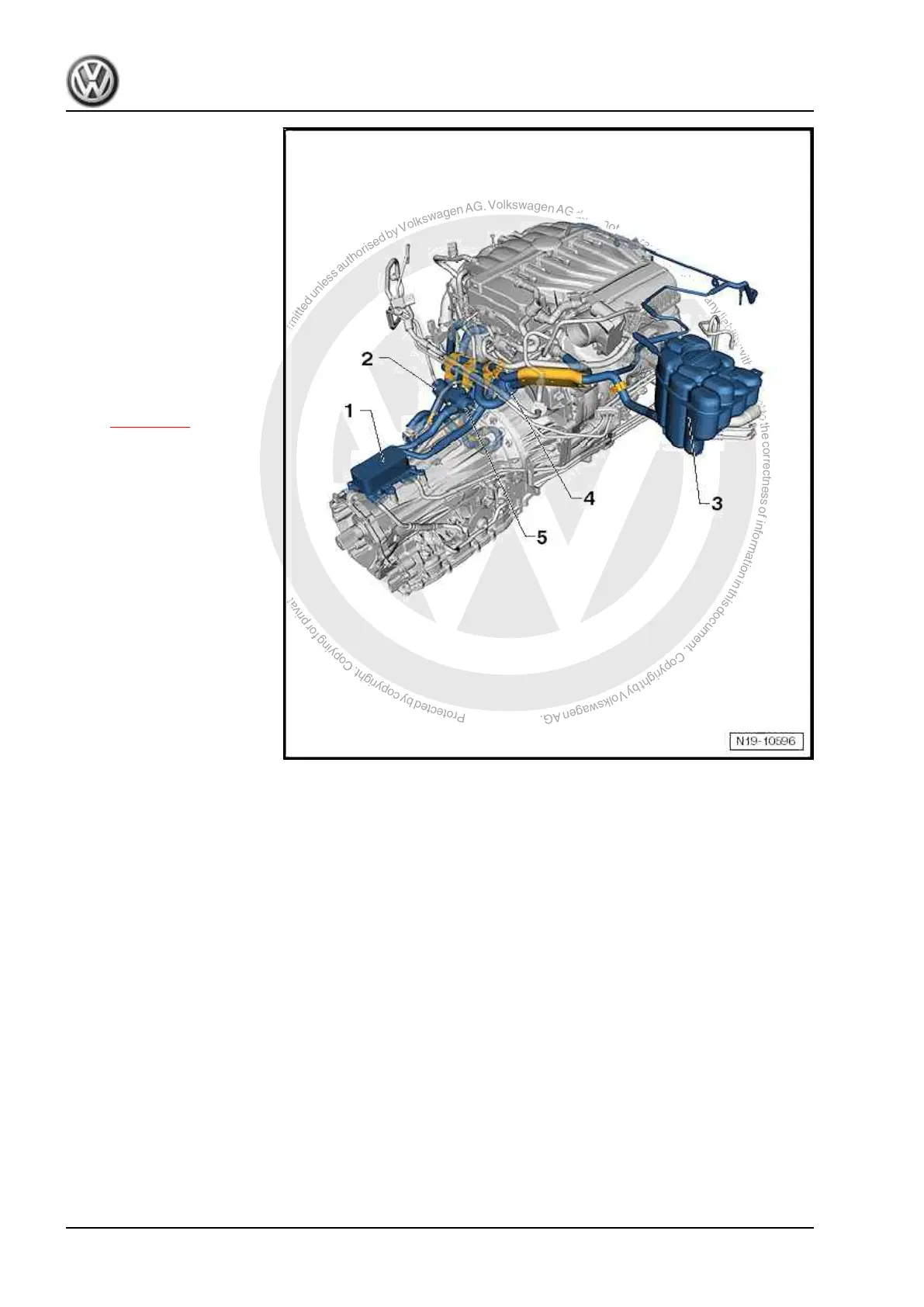

1 - ATF preheater
❑ Removing and installing
⇒ Rep. gr. 37
2 - Cylinder block shut-off
valve
❑ To remove, remove
centre plenum chamber
bulkhead ⇒ General
body repairs, exterior;
Rep. gr. 50 ; Plenum
chamber bulkhead .
3 - Coolant expansion tank
4 - Coolant circulation pump 2
- V178-
❑ Removing and installing
⇒ page 149
5 - Shut-off valve for ATF pre‐
heater
❑ To remove, remove
centre plenum chamber
bulkhead ⇒ General
body repairs, exterior;
Rep. gr. 50 ; Plenum
chamber bulkhead .
1.4.3 Cooling system - assembly overview
part 3
Renew O-rings and seals.
Pull plug-in connector to make sure they are securely connected.
Specified torques:
Bolts, M6: 10 Nm
Bolts, M8: 20 Nm
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
140 Rep. gr.19 - Cooling
