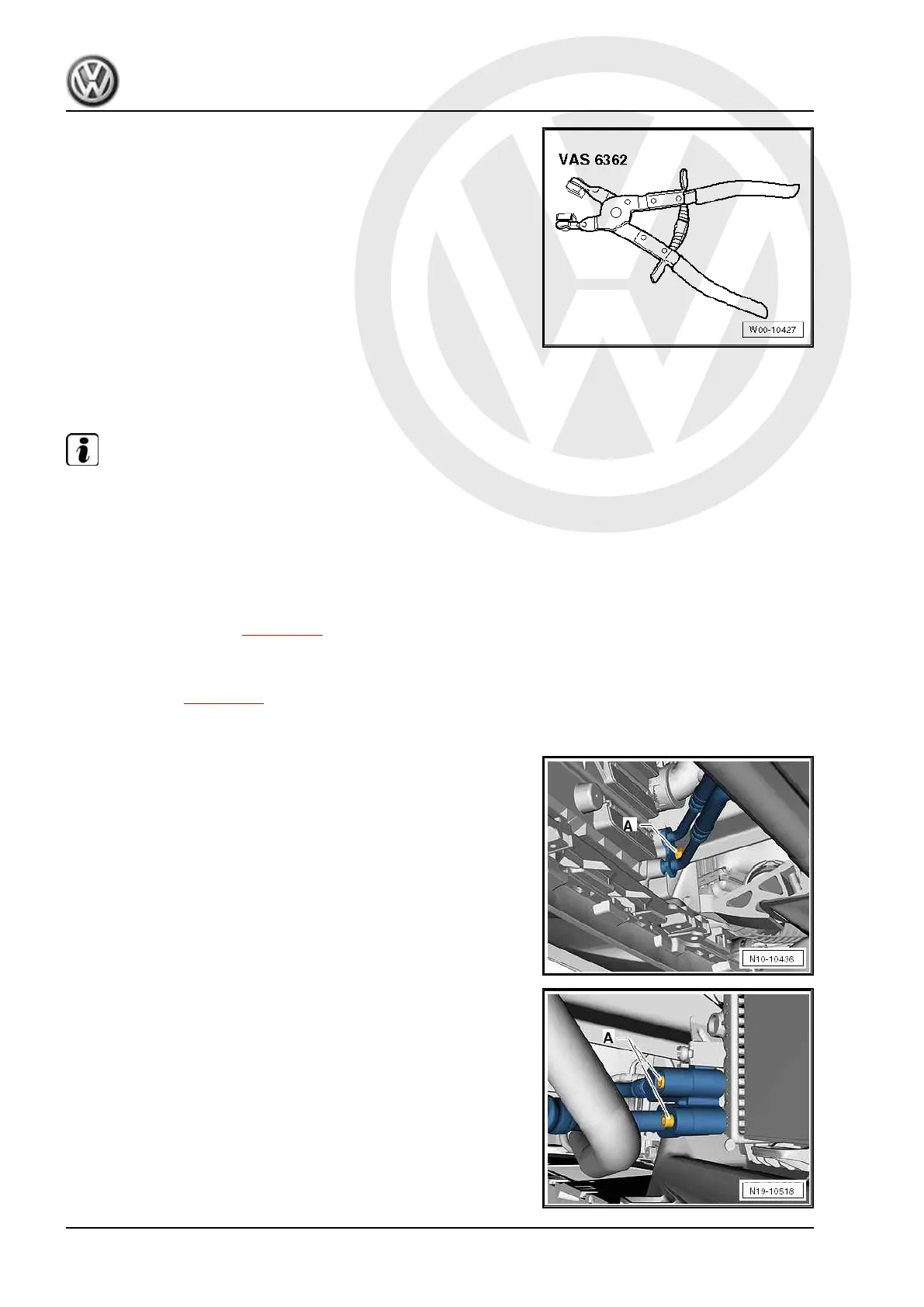

♦ Spring-type clip pliers - VAS 6362-
♦ Hose clamps to 25 mm - 3094-
Removing:
Note
♦
The radiator module consists of a radiator for coolant, a cooler
for power steering, a condenser and a gearbox oil cooler.
♦
Even when correctly installed, radiator and condenser may
show slight marks on plates. This does not mean that these
components have been damaged. Minor indentations such as
these are not a reason to renew either the radiator or con‐
denser.
– Remove radiator cowl ⇒ page 170 .
– Extract refrigerant from air conditioning system ⇒ Heating, air
conditioning system; Rep. gr. 87 .
– Drain coolant ⇒ page 154 .
– Position used oil collection and extraction unit - VAS 6622-
under separation point on gearbox oil cooler.
– Unscrew bolt -A- and pull connections off gear oil cooler. Catch
oil which runs out.
– Seal gear oil cooler and pipes with plugs.
– Unscrew refrigerant lines -arrow- from radiator module.
– Seal condenser and pipes with plugs.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
166 Rep. gr.19 - Cooling
