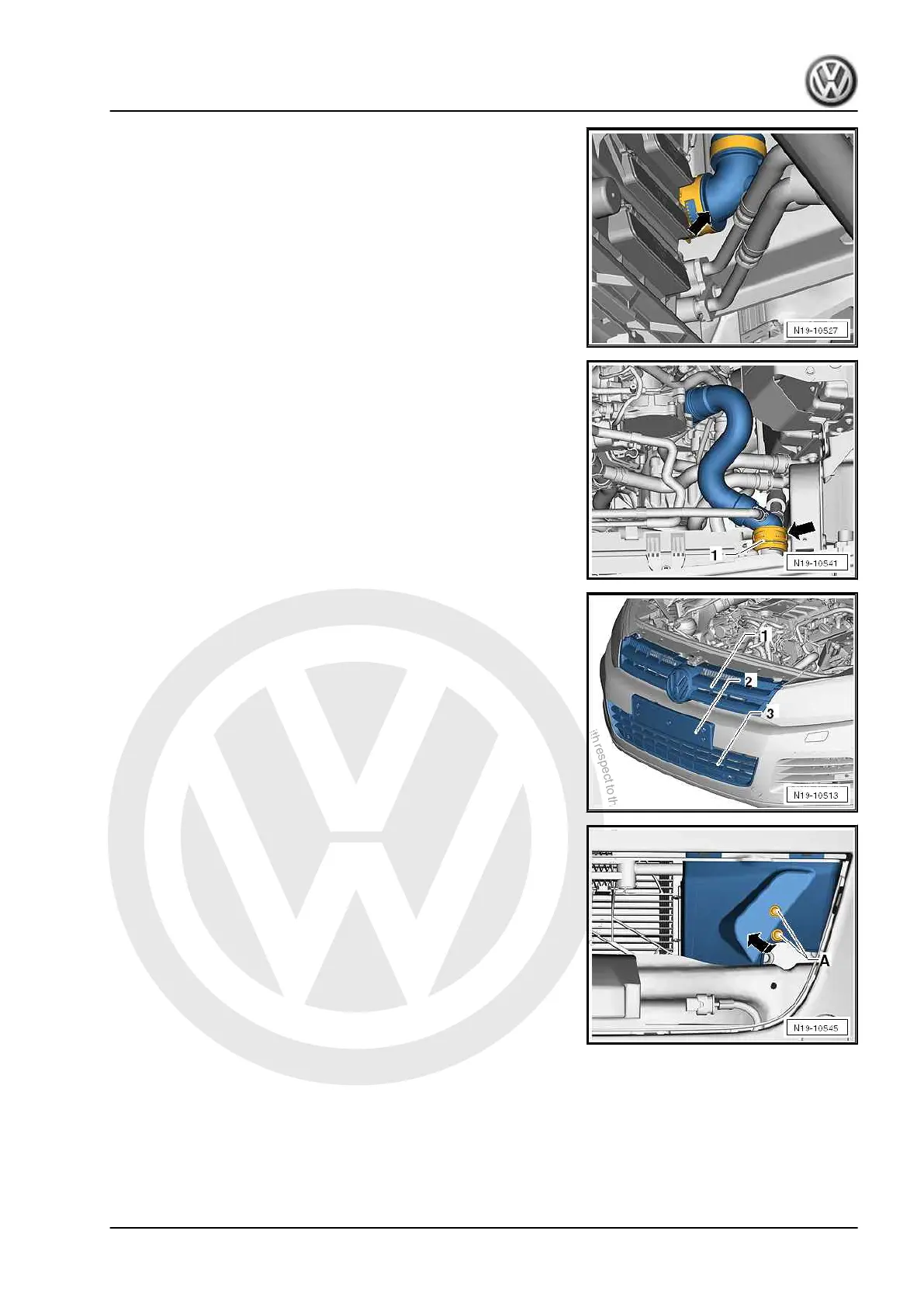

– Disconnect coolant hose at bottom of radiator (pull out retain‐
ing clip).
– Clamp off hoses for power-assisted steering and pull off.
– Disconnect upper coolant hose from radiator; to do this, lift
retaining clip -1-.
– Remove radiator grille -1- ⇒ Rep. gr. 66 .
– Remove number plate bracket -2- and centre air grille -3- ⇒
Rep. gr. 63 .
– Lift up air guide on both sides of the air grille opening -arrow-
and unscrew the bolts -A- behind it in each case.
– Pull the two radiator mountings sideways out of the radiator
module over the longitudinal members.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
5. Radiator and radiator fans 167
