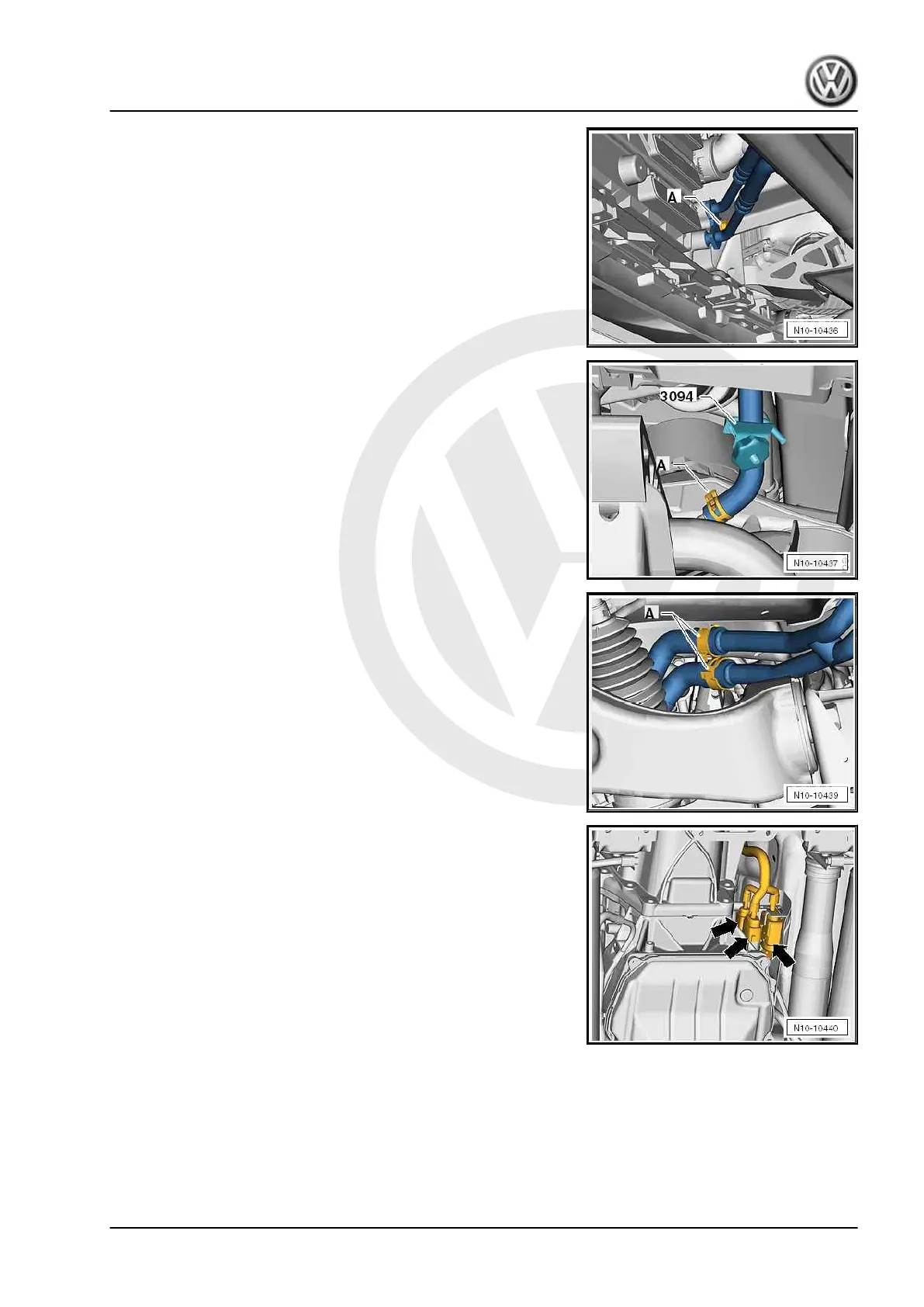

– Unscrew bolt -A- and pull connections off gear oil cooler. Catch
oil which runs out.
– Disconnect hose of servo steering with hose clips up to 25 mm
- 3094- , open clip -A- and pull off hose.
– Open clips -A- and pull off coolant hoses of heat exchanger
for heating system.
– Push propshaft off gearbox and tie at the top ⇒ Differential
and final drive; Rep. gr. 39 ; Removing and installing prop‐
shafts .
– Disconnect connector -arrows- at gearbox.
Touareg 2010 ➤ , Touareg 2015 ➤
