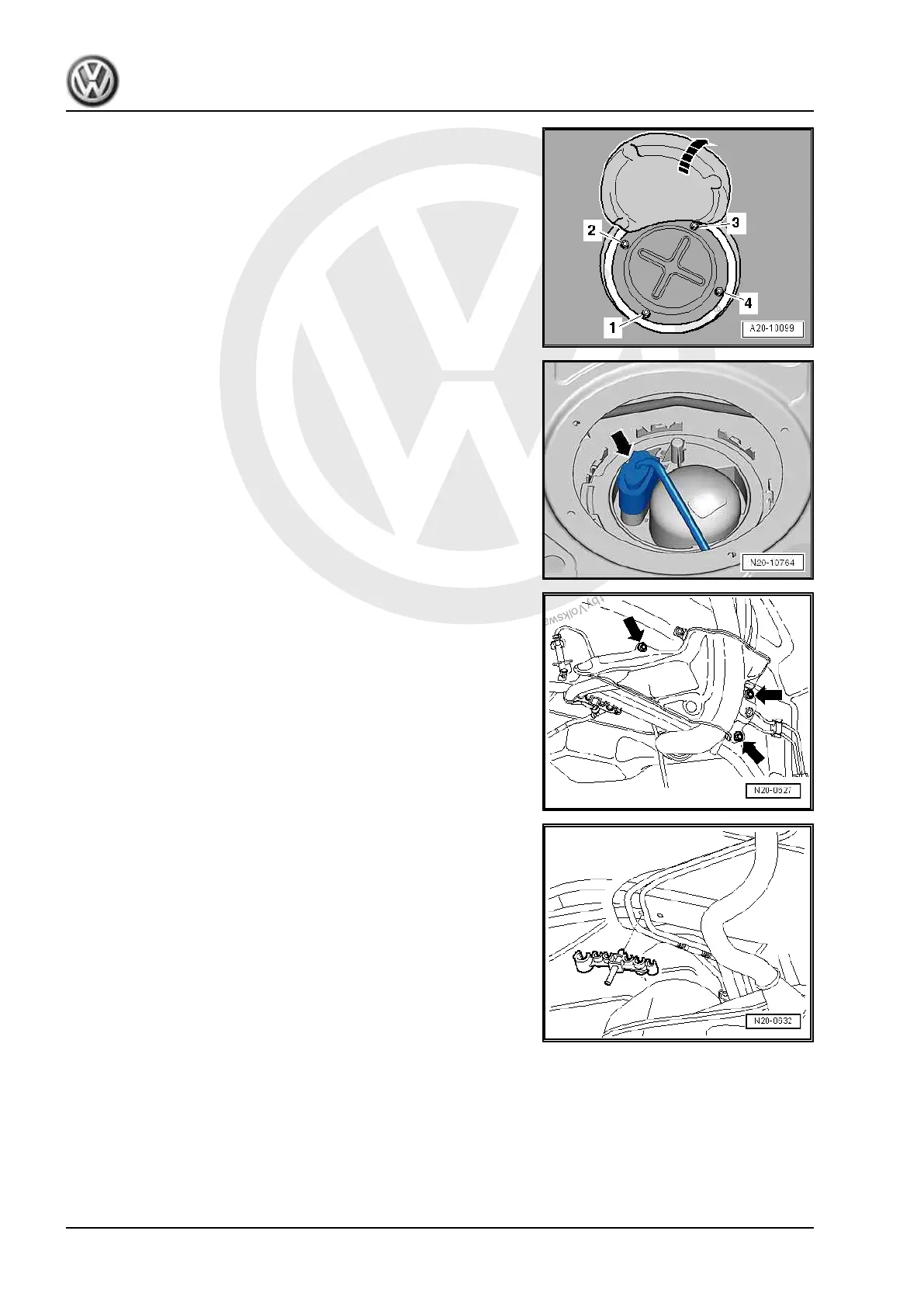

– Fold left-hand carpet cut-out to the side.
– Remove securing nuts -1 to 4- of flange cover.
– Remove flange cover.
– Pull connector -arrow- off sender flange.
– Remove rear right wheel housing liner ⇒ General body re‐
pairs, exterior; Rep. gr. 66 ; Removing and installing wheel
housing liner .
– Unscrew stone guard -arrows-.
– Unclip fuel tank breather lines attached to longitudinal mem‐
ber.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
194 Rep. gr.20 - Fuel supply system
