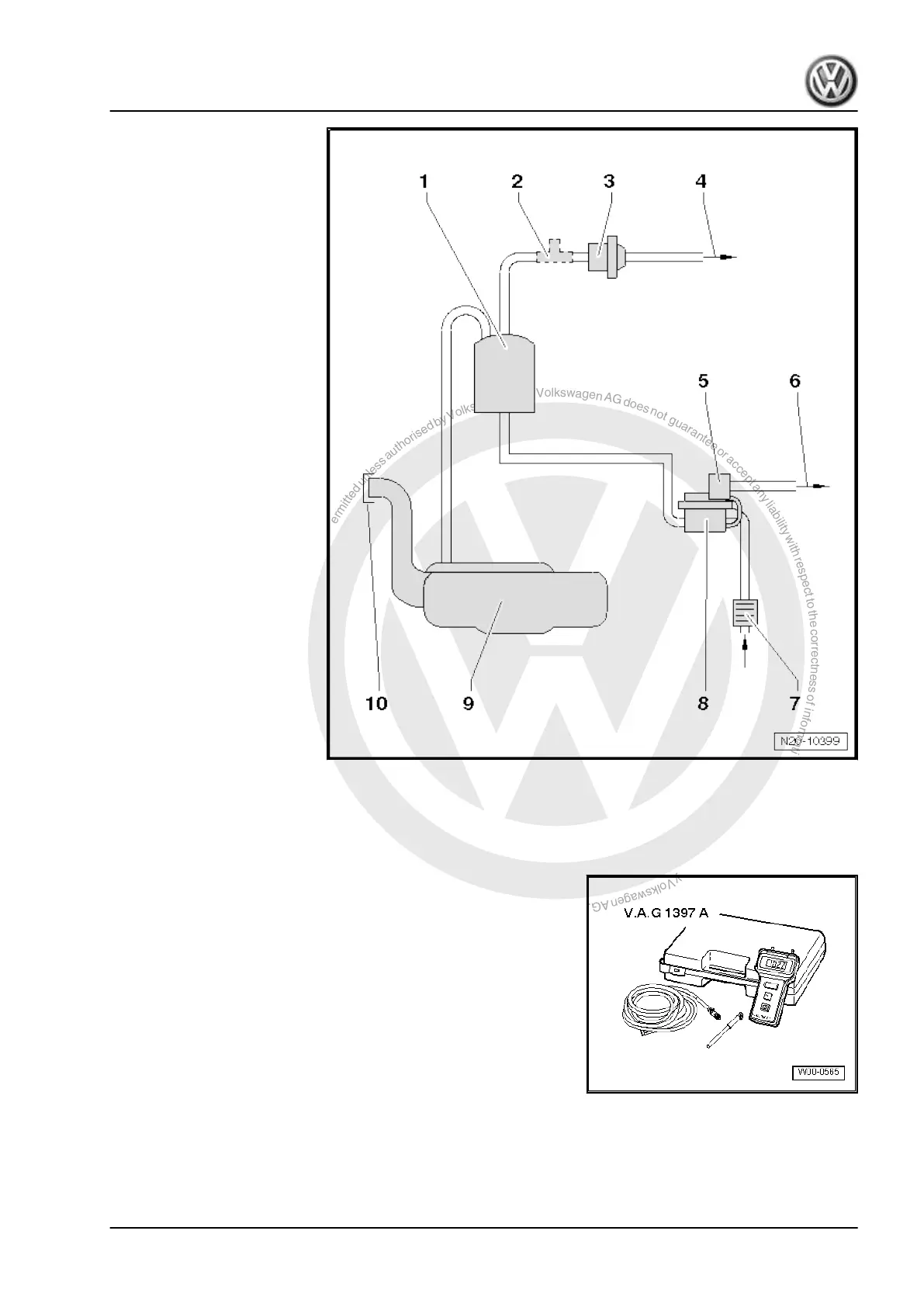

1 - Activated charcoal filter
2 - Location of adapter hose -
KLI 9210/57-
❑ For leak detection in fuel
system
3 - Activated charcoal filter sol‐
enoid valve 1 - N80-
4 - Breather line
❑ To intake manifold
5 - Solenoid valve
❑ For fuel system diagno‐
sis pump - V144- .
6 - Vacuum line
❑ To intake manifold
7 - Air filter
❑ For fuel system diagno‐
sis pump - V144- .
8 - Fuel system diagnostic
pump - V144-
9 - Fuel
10 - Cap
6.2.3 Checking vacuum supply of fuel system
diagnostic pump - V144-
Special tools and workshop equipment required
♦ Turbocharger tester - V.A.G 1397A-
♦ T-piece - 251 201 346-
♦ Hose ∅ 6mm
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
6. Activated charcoal filter system (vehicles for USA and Canada) 213
