24 - Connecting pipe
❑ 28 Nm
❑ Make sure that fuel pipe does not touch other components!
❑ To install, first tighten union nuts hand tight.
❑ Loosen and tighten with socket - T10456-

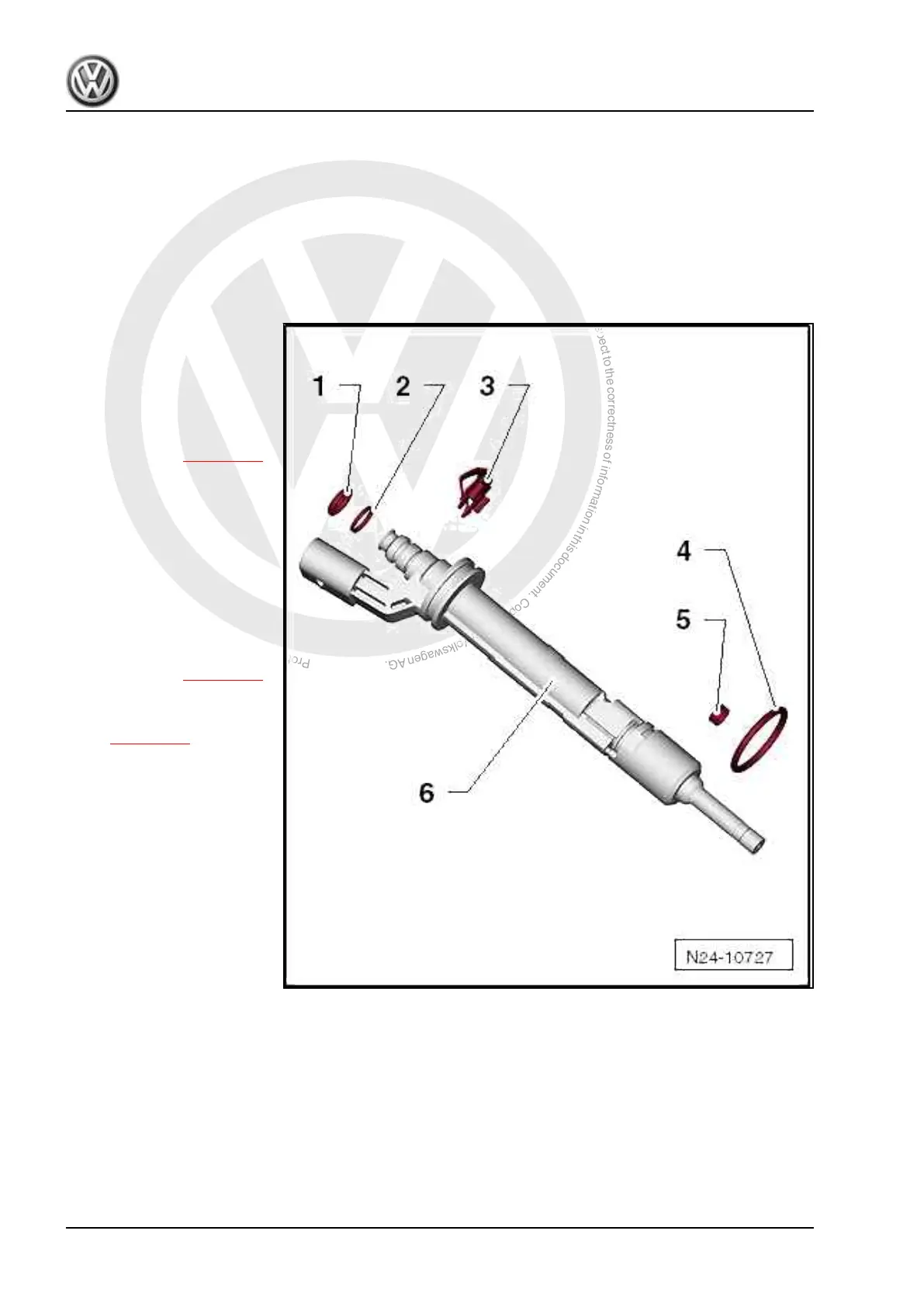

2.1.1 Assembly overview - injectors for cylinders 1, 3 and 5
1 - O-ring
❑ Renew
❑ Before installing, mois‐
ten lightly with clean en‐
gine oil.
2 - Support washer
❑ Renewing ⇒ page 225
3 - Spring element
❑ Renew
❑ Ensure firm seating
4 - Seal
❑ Renew
❑ Before installing, mois‐
ten lightly with clean en‐
gine oil.
5 - Combustion chamber seal
❑ Renewing ⇒ page 225
6 - Injection valve
❑ Removing and installing
⇒ page 221
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
220 Rep. gr.24 - Mixture preparation - injection
