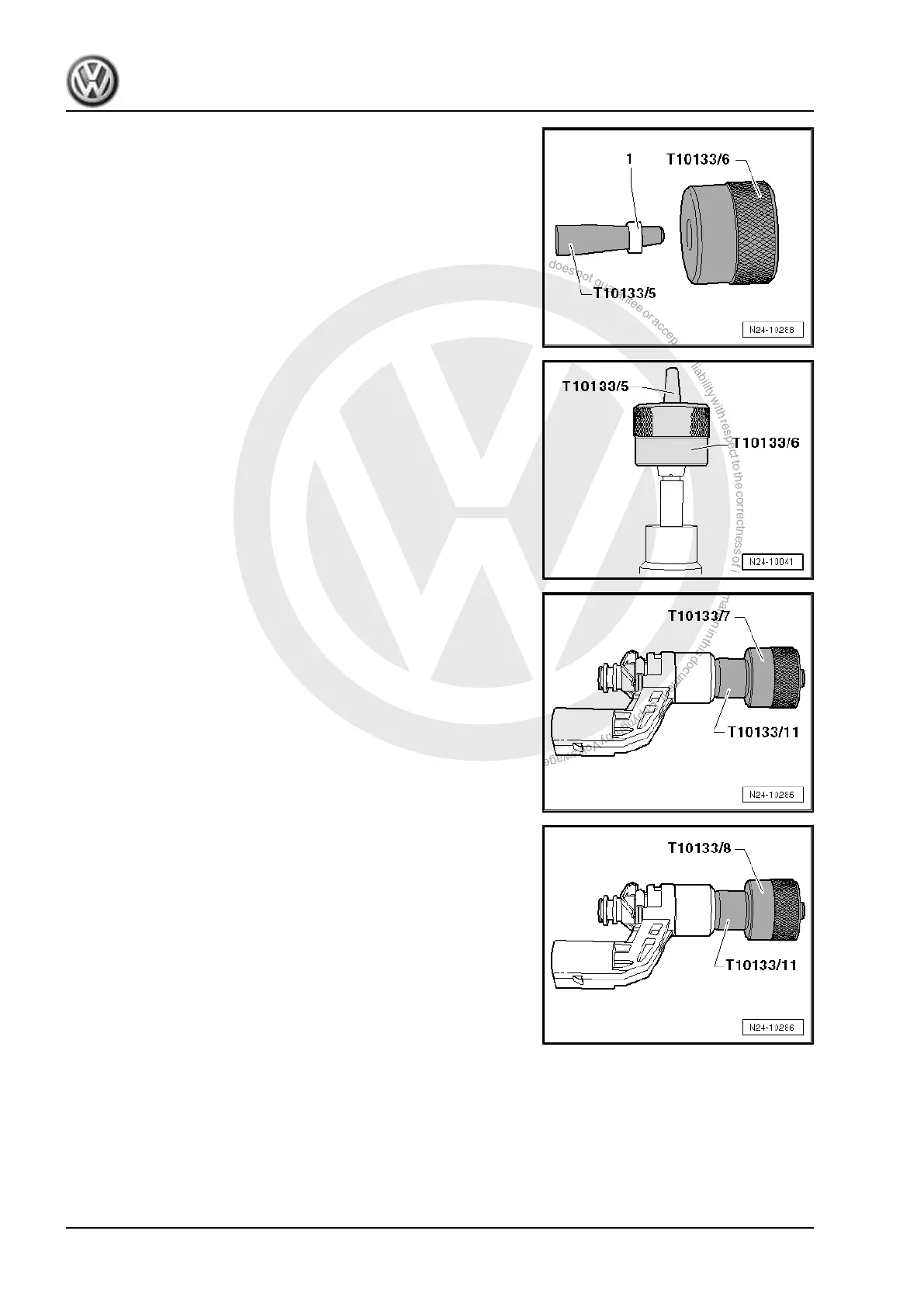

– Turn assembly sleeve - T10133/6- around (knurl no longer
points to seal), and push seal -1- to end of assembly cone -
T10133/5- .
– Now place assembly cone - T10133/5- with seal onto injector
from front. Slide seal further onto injector using assembly
sleeve - T10133/6- .
The seal is not yet seated in its groove.
– Remove assembly sleeve - T10133/6- and assembly cone -
T10133/5- .
– Slide seal into annular groove by hand.
– Position spacer sleeve - T10133/11- onto valve body.
– Now push calibrating sleeve - T10133/7- over seal to stop onto
spacer sleeve - T10133/11- .
– Pull off calibrating sleeve - T10133/7- again.
– Now push calibrating sleeve - T10133/8- over seal to stop onto
spacer sleeve - T10133/11- .
– Pull off calibrating sleeve - T10133/8- again.
Combustion chamber seal now has correct installation dimen‐
sions.
Renewing support washer:
– Remove O-ring -3-.
– Cut support washer -2- open with a small pair of side cutters
and remove it.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
226 Rep. gr.24 - Mixture preparation - injection
