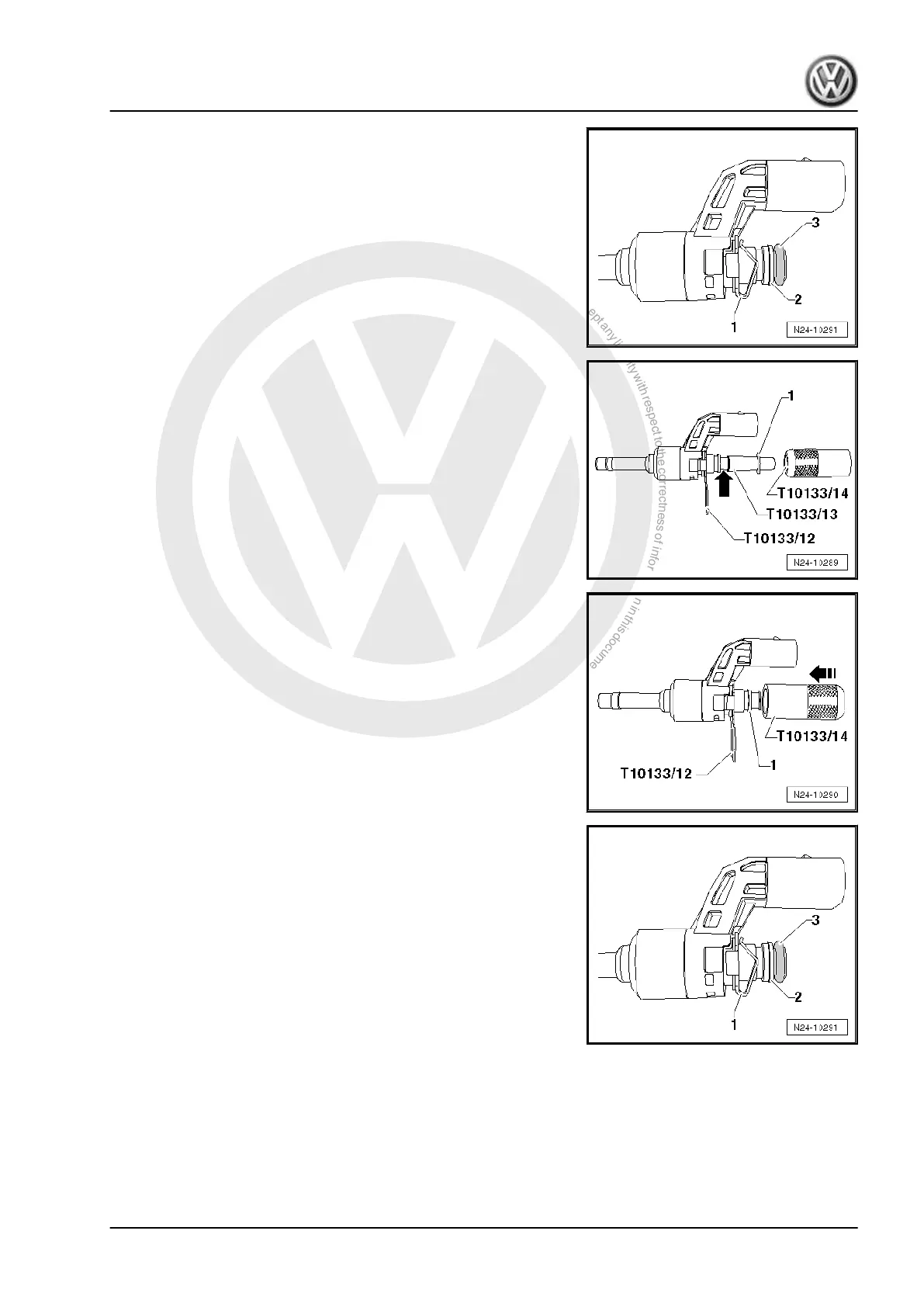

– Pull spring element -1- off injector and replace with retaining
plate - T10133/12- .
– Place new support washer -1- onto assembly cone -
T10133/13- and position onto injector as shown.
– Slide support washer -1- into first groove -arrow- on injector
using calibration sleeve - T10133/14- (knurled side points to
injector).
– Now turn calibration sleeve - T10133/14- around (knurled side
no longer points to injector). Slide calibration sleeve over sup‐
port washer -1- in direction of -arrow- to stop on retaining plate
- T10133/12- .
– Pull calibrating sleeve - T10133/14- down again.
The support washer now has correct installation dimensions.
– Now position a new spring element -1- for retaining plate -
T10133/12- and position a new O-ring -3- in front of support
washer -2-.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Injectors 227
