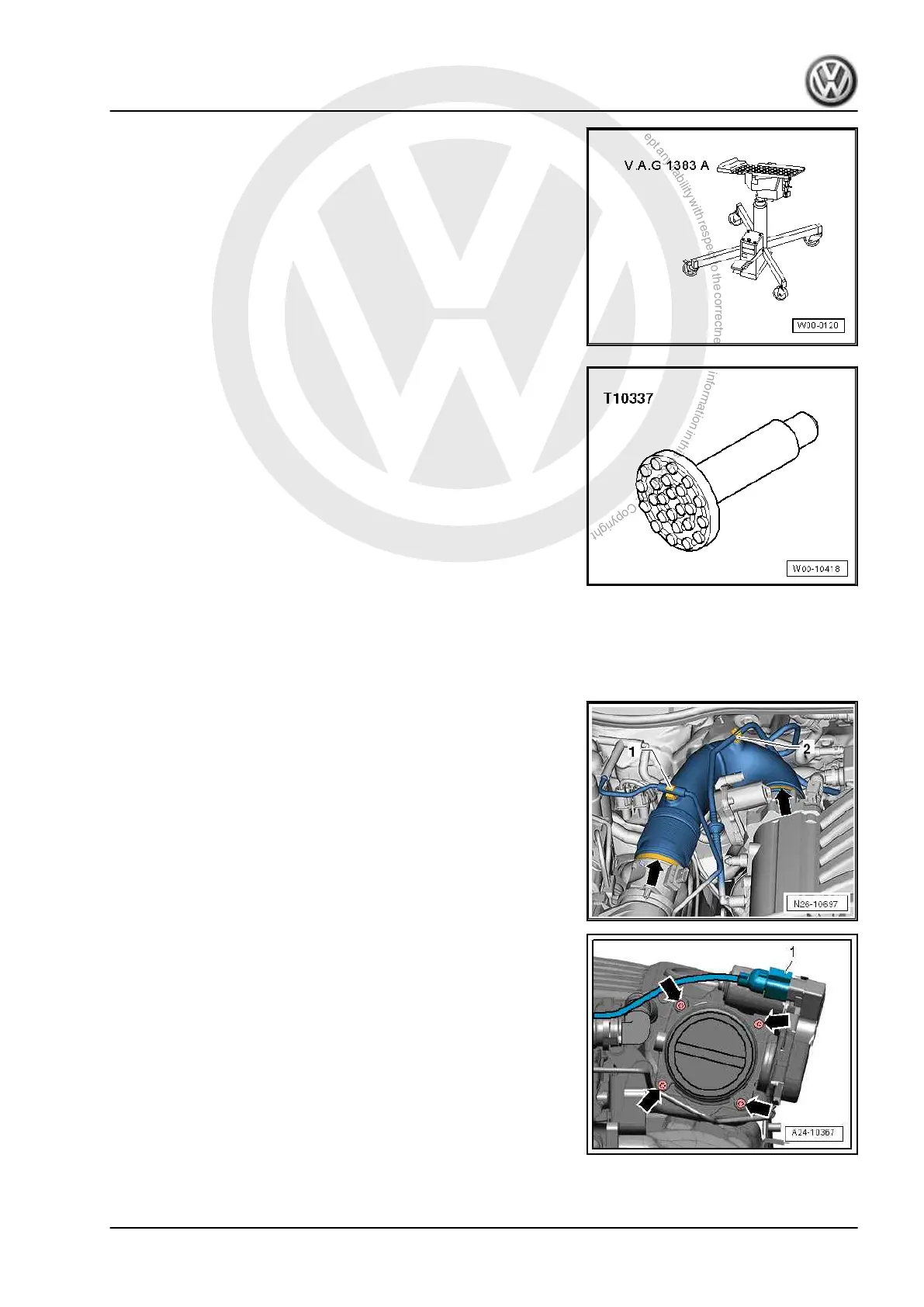

♦ Engine and gearbox jack - V.A.G 1383 A-
♦ Gearbox support - T10337-
Removing:
Proceed as follows:
– Vehicles with air suspension: Activate jacking mode ⇒ Rep.
gr. 43 .
– Remove air pipe -arrows-.
– Remove air filter upper part.
– Separate electrical connector -1- on throttle valve module -
J338- .
– Remove bolts -arrows- and detach throttle valve module -
J338- .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Silencers and catalytic converters 261
