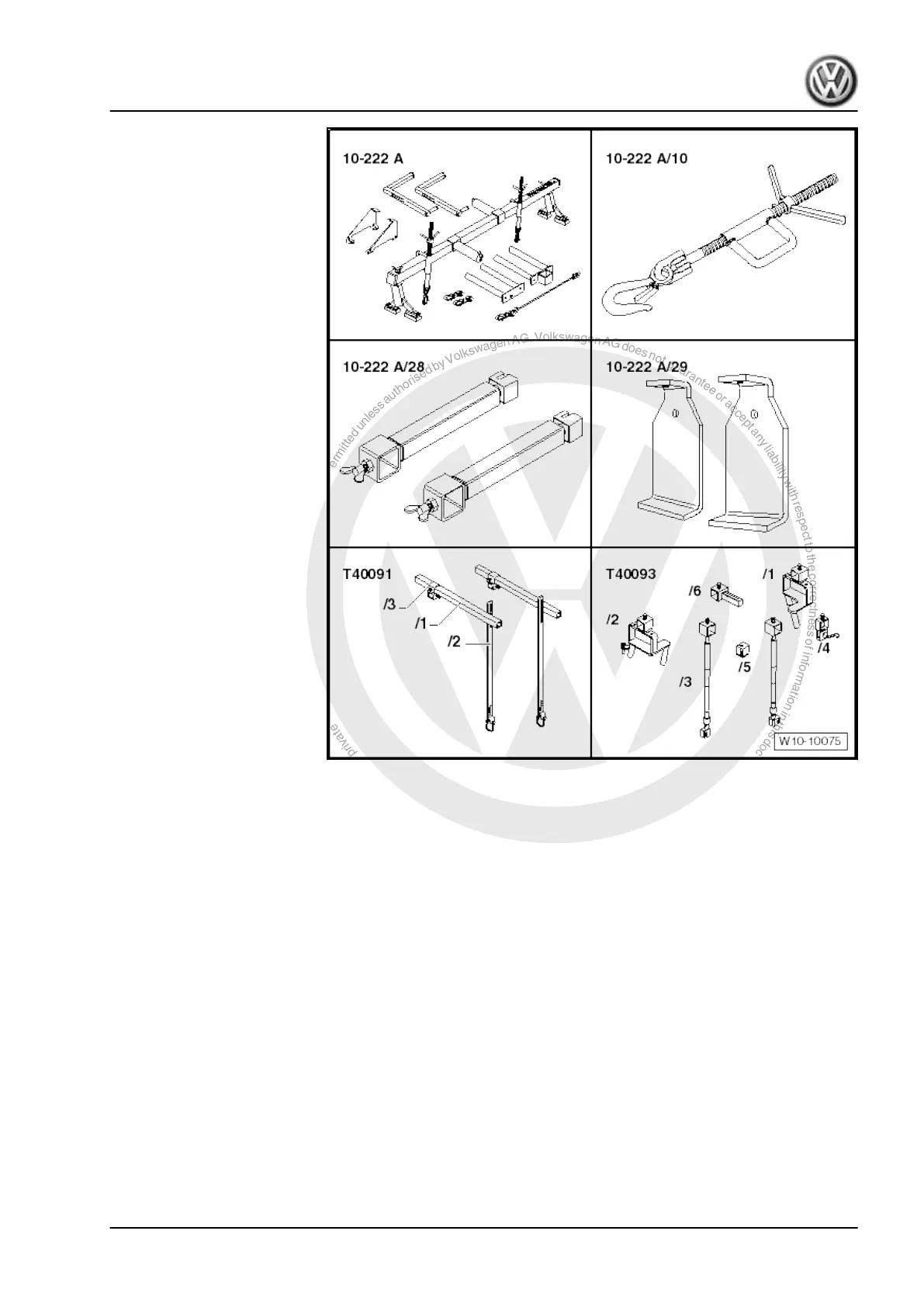

Special tools and workshop
equipment required
♦ Support bracket - 10 - 222 A- with adapters - 10 - 222 A /29-
♦ 2 x hooks - 10 - 222 A /10-
♦ Adapter - 10 - 222 A /28-
♦ Square section tube - T40091/1- (qty. 2)
♦ Hook rail - T40091/2-
♦ 2 x articulated joints - T40091/3-
♦ Support bearing - T40093/5-
♦ 2 x articulated joints - T40093/4-
– Slide rotary joints - T40091/3- and hooks - 10 - 222 A /10- onto
square section tube of bracing device - 10 - 222 A- .
– Fit adapter - 10 - 222 A /29- onto square section tube.
– »Raise« plenum chamber cover on right and left.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
