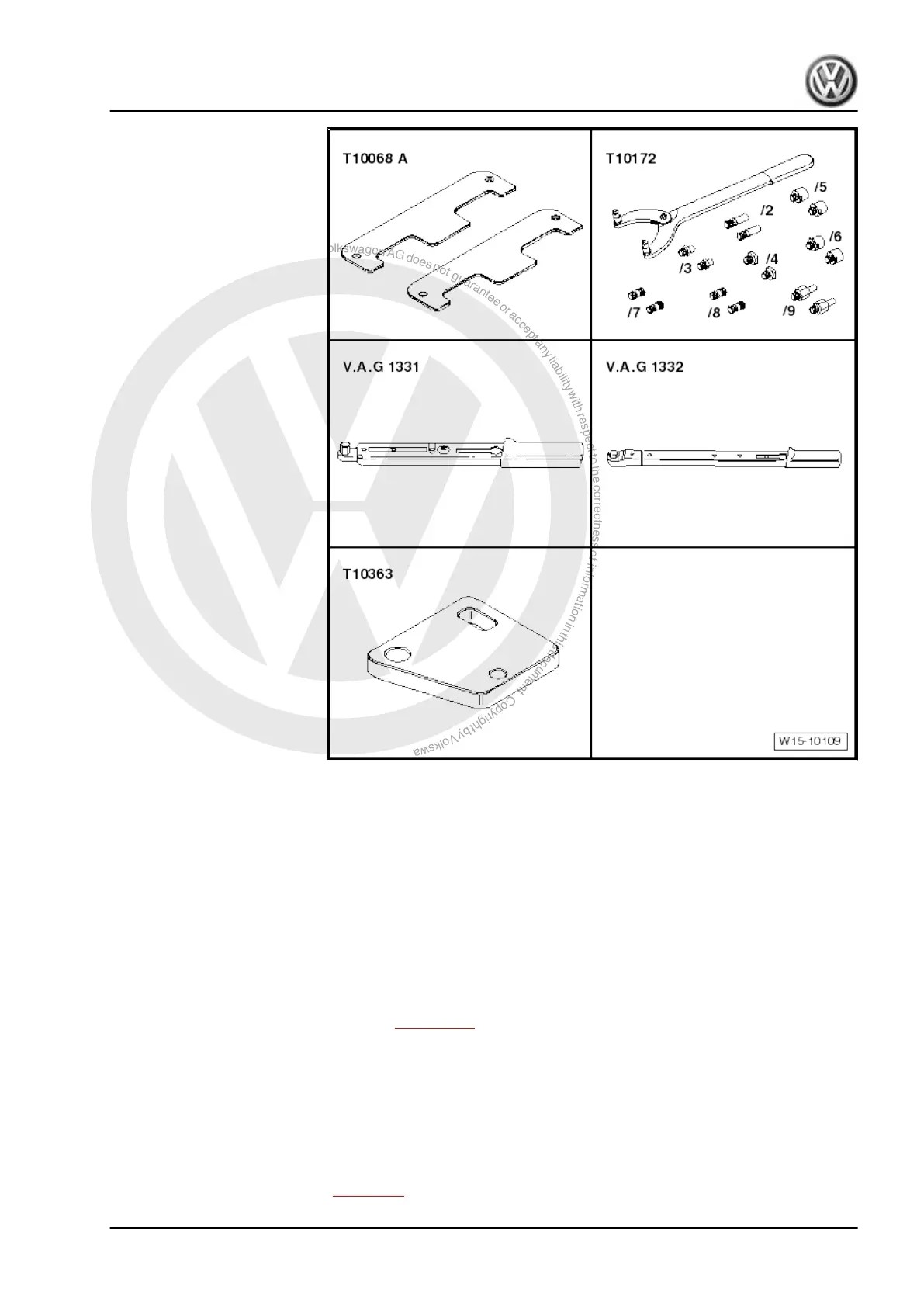

Special tools and workshop
equipment required
♦ Camshaft bar - T10068 A-
♦ Counterhold - T10172- with pins - T10172/1-
♦ Torque wrench - V.A.G 1331-
♦ Torque wrench - V.A.G 1332-
♦ Adjusting tool - T10363-
Not illustrated:
♦ Sealant - D 176 501 A1-
Removing camshaft adjuster
– Remove upper part of intake manifold ⇒ page 236 .
– Remove wiper arms ⇒ Electrical system; Rep. gr. 92 ; Wind‐
screen wiper system; Removing and installing wiper arms .
– Removing plenum chamber cover ⇒ General body repairs,
exterior; Rep. gr. 64 ; Removing and installing plenum cham‐
ber cover
– Remove centre plenum chamber bulkhead ⇒ General body
repairs, exterior; Rep. gr. 50 ; Plenum chamber bulkhead .
– Remove cylinder head cover ⇒ page 90 .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Chain drive 65
