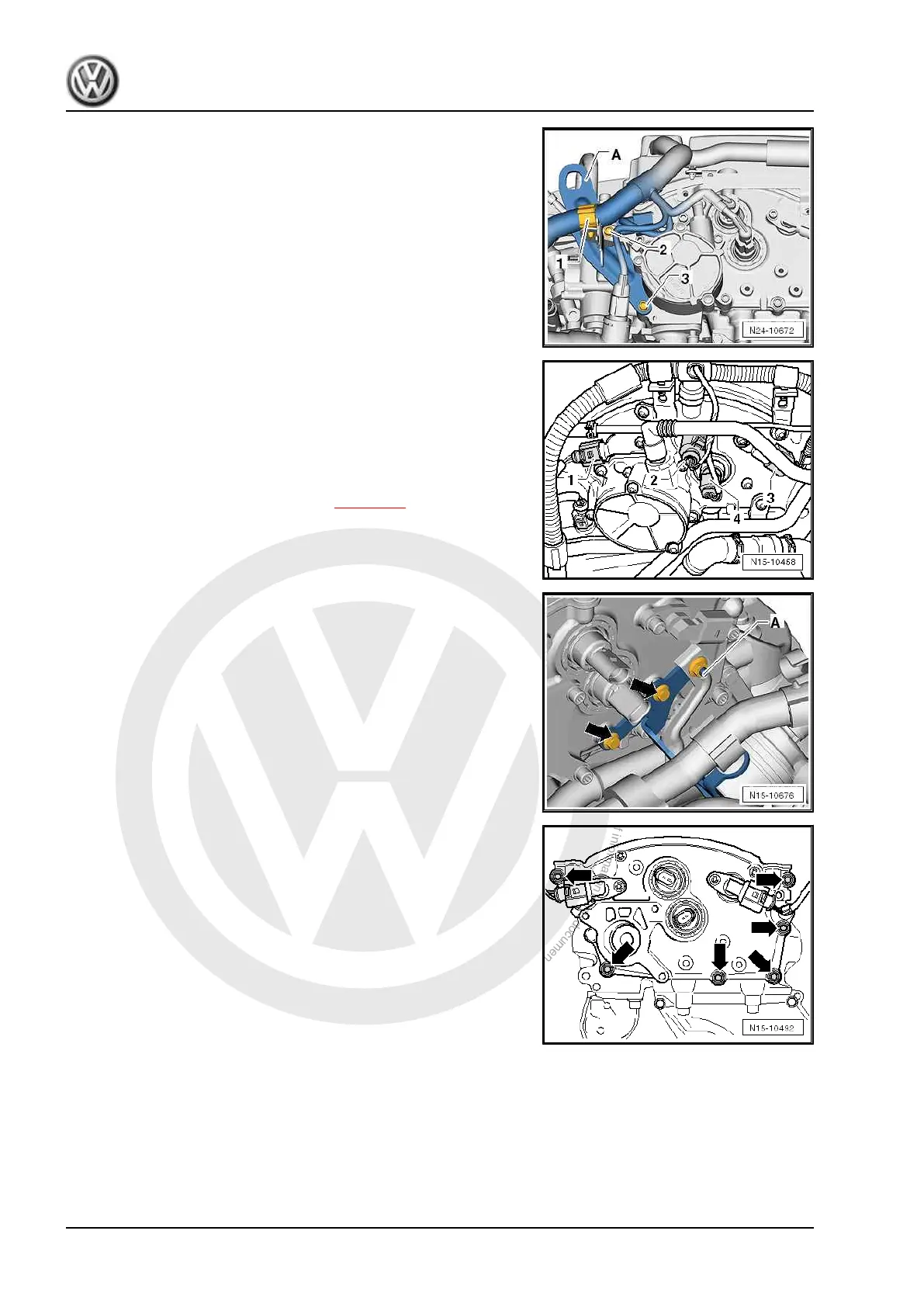

– Unclip wiring harness -1-, undo bolt -2- and -3- remove engine
lifting eye.
– Separate the following connectors:
1 - Hall sender - G40-
2 - Inlet camshaft control valve 1 - N205-
3 - Hall sender 2 - G163-
4 - Exhaust camshaft control valve 1 - N318-
– Remove mechanical vacuum pump ⇒ page 93 .
– Unscrew nut -A- and remove bolts -arrows-.
– Remove cover securing bolts -arrows- and lever off cover.
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 50 ; Assembly overview - noise insulation .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
66 Rep. gr.15 - Cylinder head, valve gear
