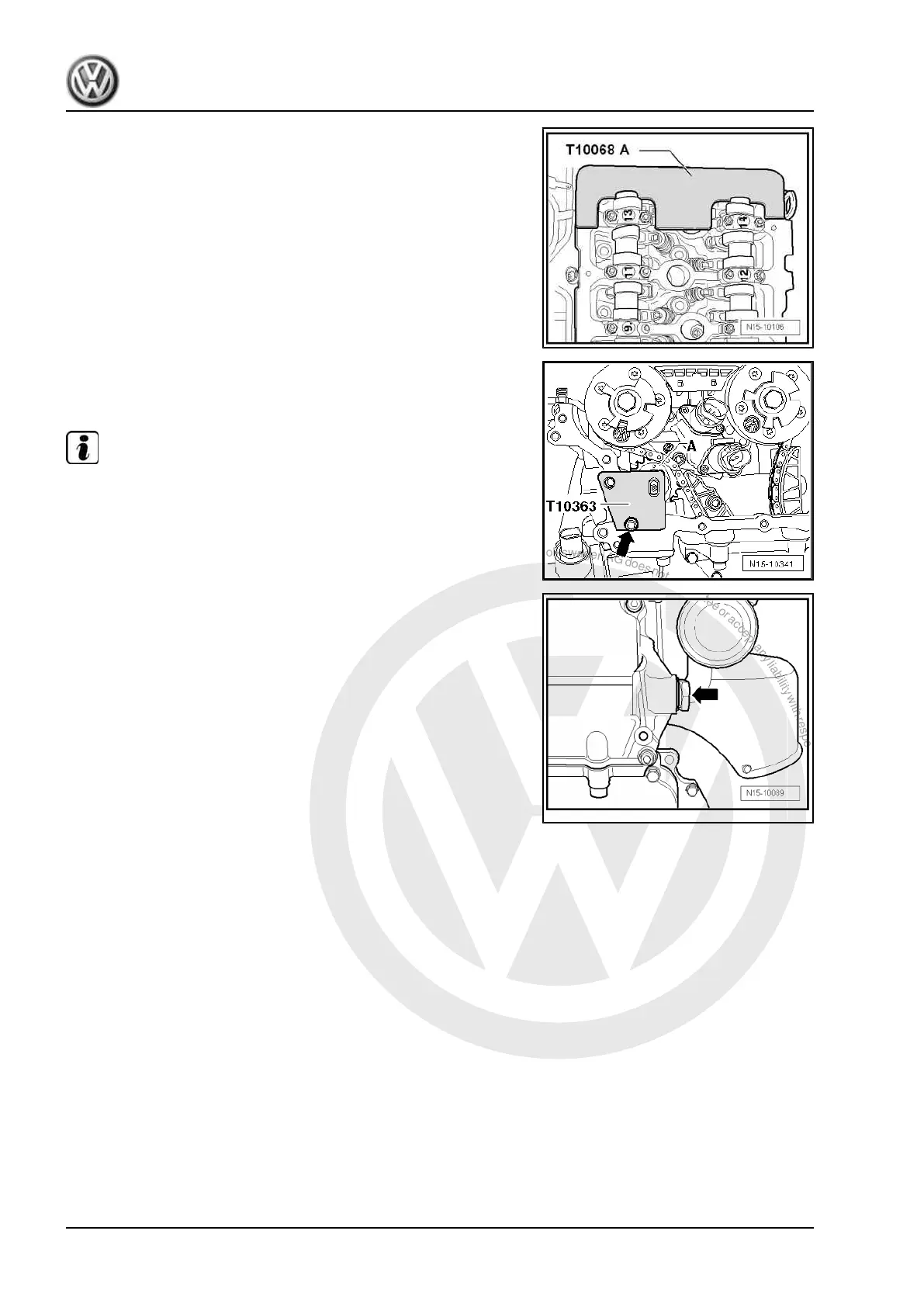

– Insert camshaft bar - T10068 A- in both shaft grooves. If nec‐
essary, move the camshafts back and forth slightly with an
open-end spanner.
– Secure position of high-pressure pump chain drive sprocket
using adjusting tool - T10363- . The marking -A- on the drive
cam for high-pressure pump must be on top.
Note
If the journal for vacuum pump drive is not vertical: remove cam‐
shaft bar - T10068 A- . Turn crankshaft further in direction of
rotation until the journal is vertical and the camshaft bar - T10068
A- can be inserted.
– Remove chain tensioner for camshaft timing chain -arrow-.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
68 Rep. gr.15 - Cylinder head, valve gear
