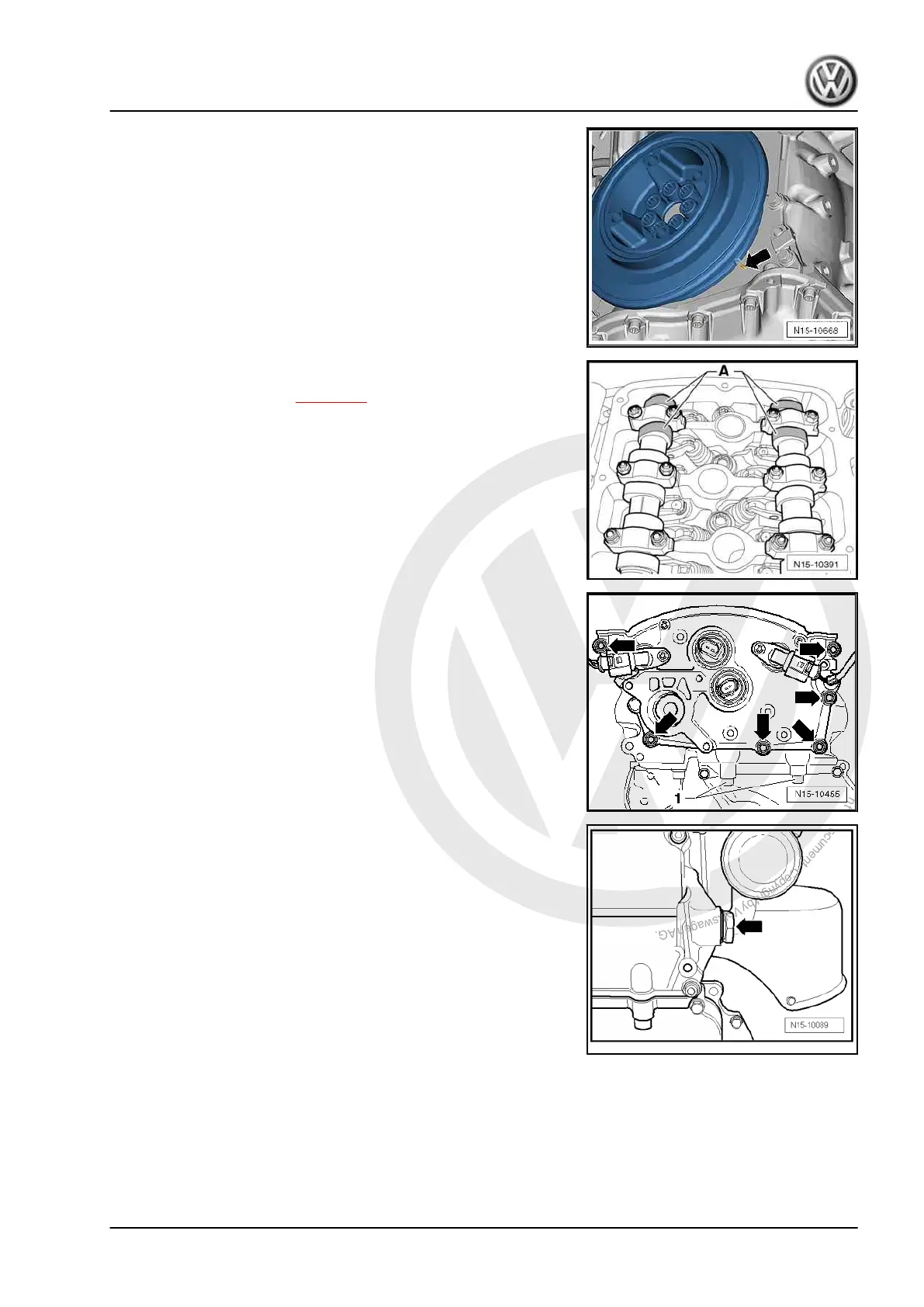

– Turn crankshaft in engine direction of rotation to TDC marking
-arrow-, using counterhold - T10172- .
Cams -A- of cylinder 1 must face each other.
– Remove vacuum pump ⇒ page 93 .
– Undo the two bolts -1- from sealing flange and then undo and
remove all bolts -arrows- from the cover.
– Remove chain tensioner for camshaft timing chain -arrow-.
