Note

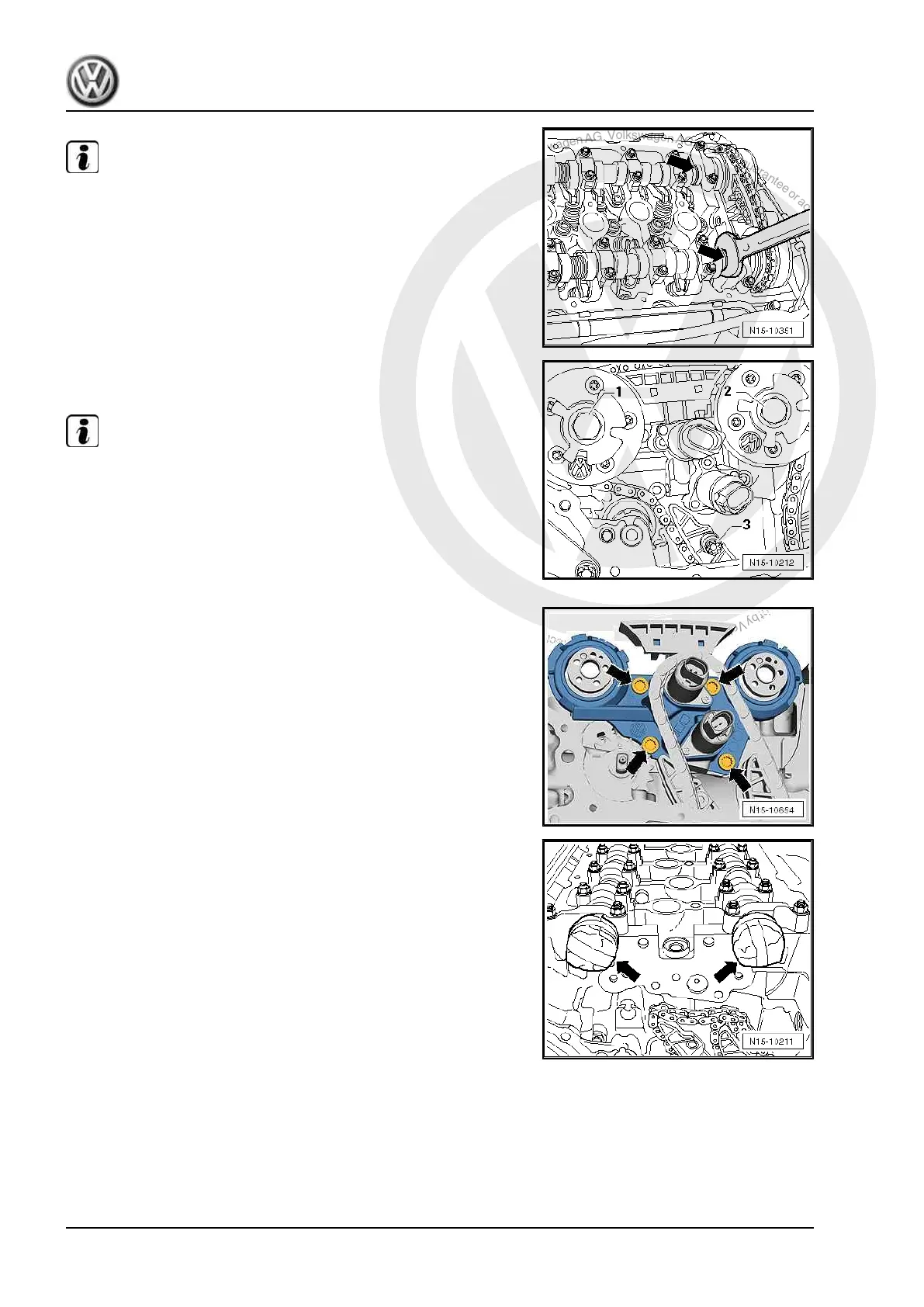

Only counterhold at camshaft with 27 mm open-end spanner
-arrow-. The camshaft bar - T10068 A- must not be fitted when
camshaft adjuster is loosened or tightened.
– Unscrew securing bolts -1- and -2- and then unscrew guide
rail -3-.
Note
The camshaft timing chain is held on the sprocket of the oil pump
by the bottom timing chain cover. The timing chain cannot jump
over.
– Remove camshaft adjusters from camshafts.
– Remove camshaft timing chain from sprocket for high-pres‐
sure pump.
– Unscrew four securing bolts -arrows- from valve timing hous‐
ing and pull valve timing housing down from camshafts.
– Cover camshafts -arrows- with clean paper strips and wrap the
ends with adhesive tape.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
86 Rep. gr.15 - Cylinder head, valve gear
