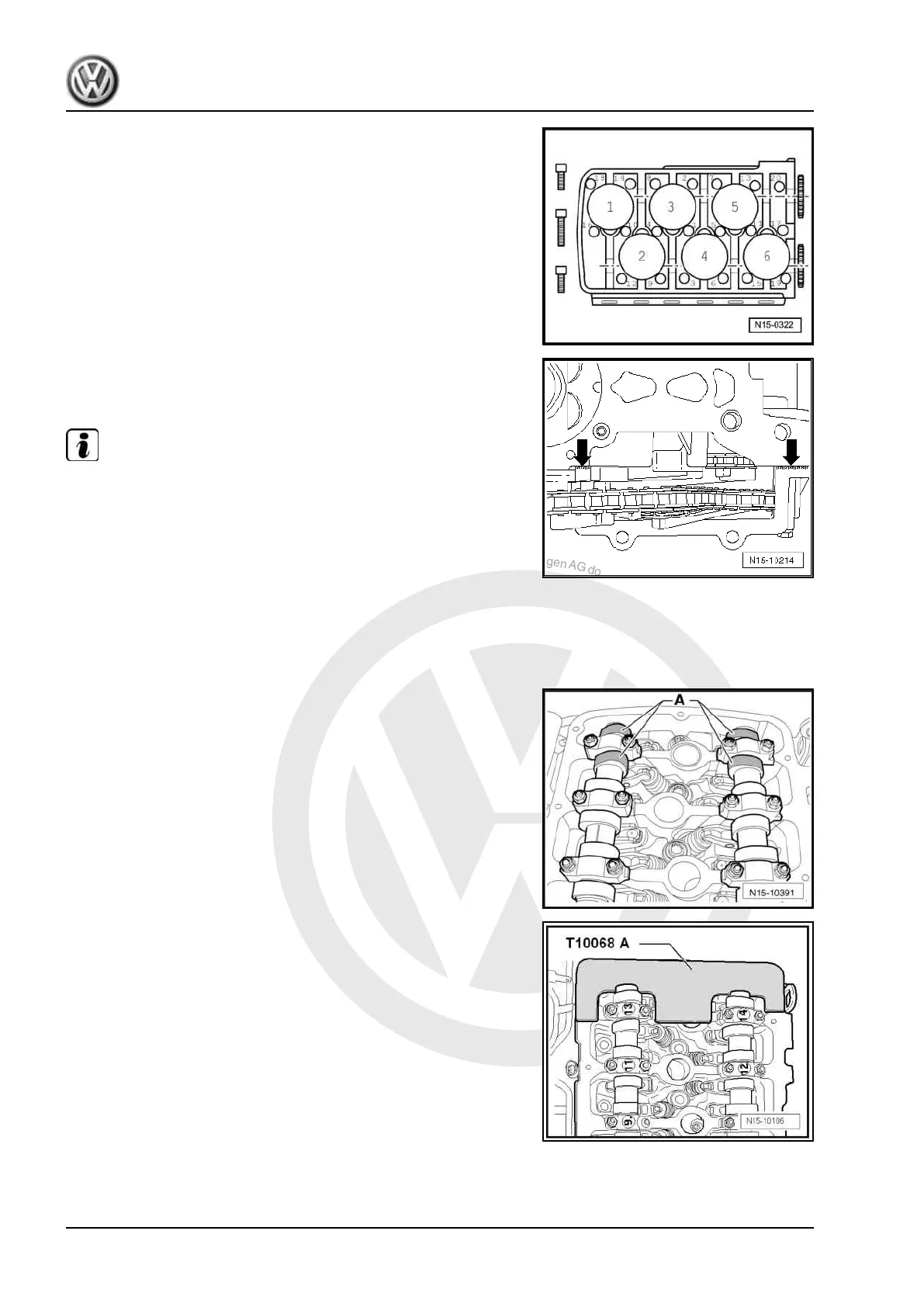

– Ensure that dowel sleeves are inserted in the cylinder block in
holes 12 and 20.
– Apply a 2 mm thick bead of sealant - D 176 501 A1- onto joint
between cylinder block and sealing flange as shown
-arrows-.
Note
♦
Do not remove new cylinder head gasket from its packing until
immediately before installing.
♦
Handle new gasket with extreme care. Damage will cause
leakage.
– Immediately fit new cylinder head gasket. Inscription (Part
No.) must be readable.
– Additionally insert a little sealant - D 176 501 A1- into the two
3 mm holes which lie on the sealant bead.
– Position camshafts in cylinder head to TDC No. 1 cylinder.
Cams -A- of cylinder 1 must face each other.
– Camshaft bar - T10068 A- must engage in grooves in both
shafts.
– Cylinder head can now be positioned.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
88 Rep. gr.15 - Cylinder head, valve gear
