1 Maintenance
Maintenance

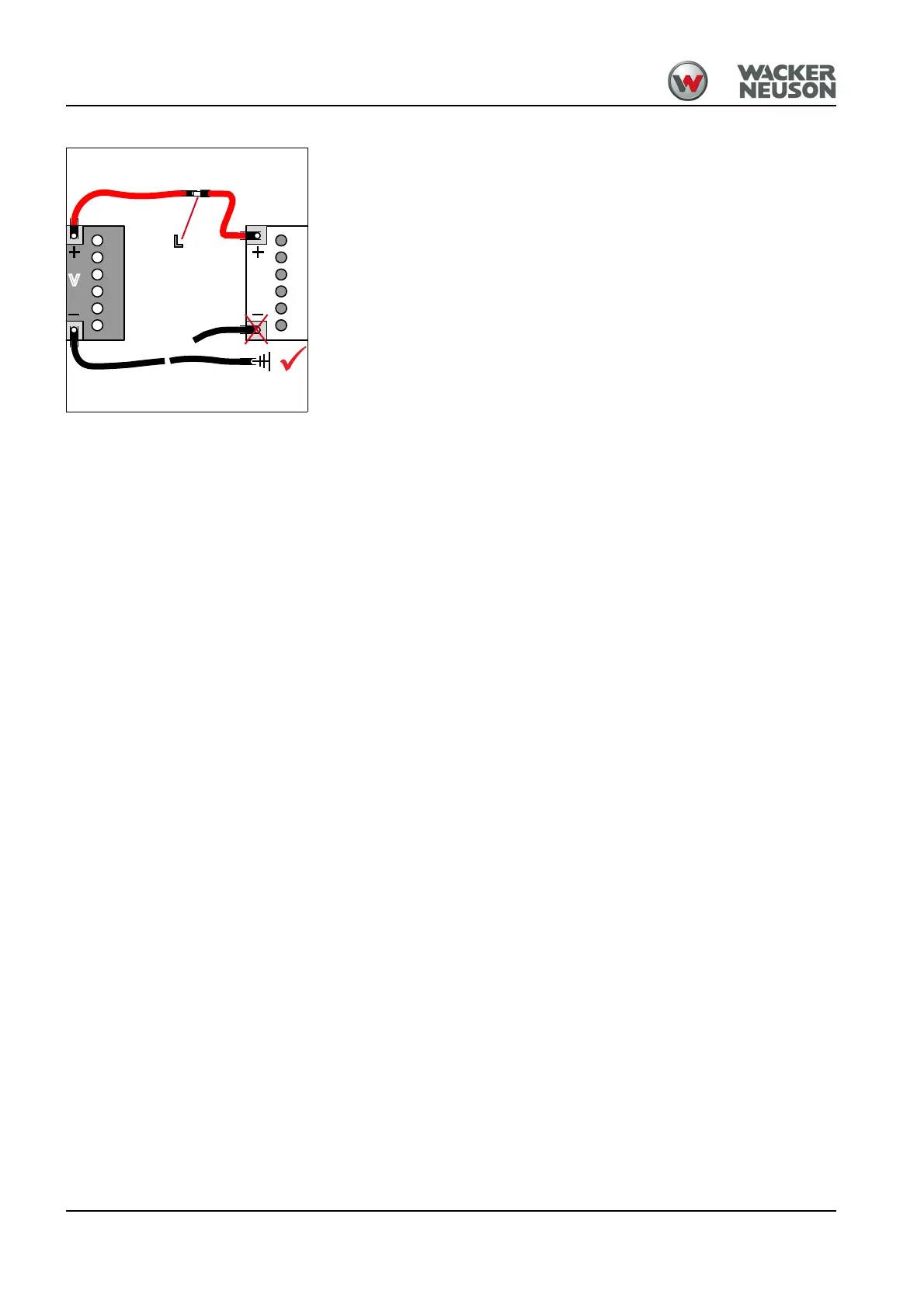

Connecting the battery jumper cables
Follow the order of the activity!
1. Remove the cover of the positive terminal L of the machine.
2. First connect one end of the red battery jumper cable (+) to the positive
terminal of the machine L, then connect the other end to the positive
terminal of the starting battery V.
3. Connect one end of the black battery jumper cable (−) to the negative
terminal of the starting battery V.
4. Connect the other end of the black battery jumper cable to a bare spot
on the engine block.
- Do not connect it to the negative terminal of the discharged battery,
otherwise explosive vapors can ignite if sparks are formed.
- Maintain a minimum distance of 30 cm from the battery.
Jump start: starting the engine
1. Do not start the engine of the vehicle giving a jump start, otherwise the
on-board electronics can be damaged by voltage peaks.
2. Start the engine of the machine being given a jump start.
➥ If the engine of the machine does not start after 15 seconds, wait
one minute and repeat the procedure.
Disconnecting the battery jumper cables
Follow the order of the activity.
1. First disconnect the black battery jumper cable from the engine block,
then from the negative terminal of the vehicle giving a jump start.
2. First disconnect the red battery jumper cable from the positive terminal
of the vehicle giving a jump start, then from the positive terminal of the
machine.
