Replace the fuel filter (Perkins Motor)
CAUTION
Risk of injury due to hot and moving engine parts!
Hot and moving engine parts can cause injury.
► Do not open the engine cover if the engine is running.
► Let the engine cool down.
► Wear protective equipment.
Preparations
1. Park the machine on firm, level and dry ground.
2. Apply the parking brake.
3. Lower the loader unit to the ground.
4. Stop the engine.
5. Open the engine cover.
Removing the fuel filter
1. Use a screwdriver to open the one-ear clips 1.
2. Close fuel hoses 3 with hose clips 2.
3. Pull fuel hoses 3 off connection piece.
4. Remove screws 4 (SW13).
5. Remove fuel filter 5.

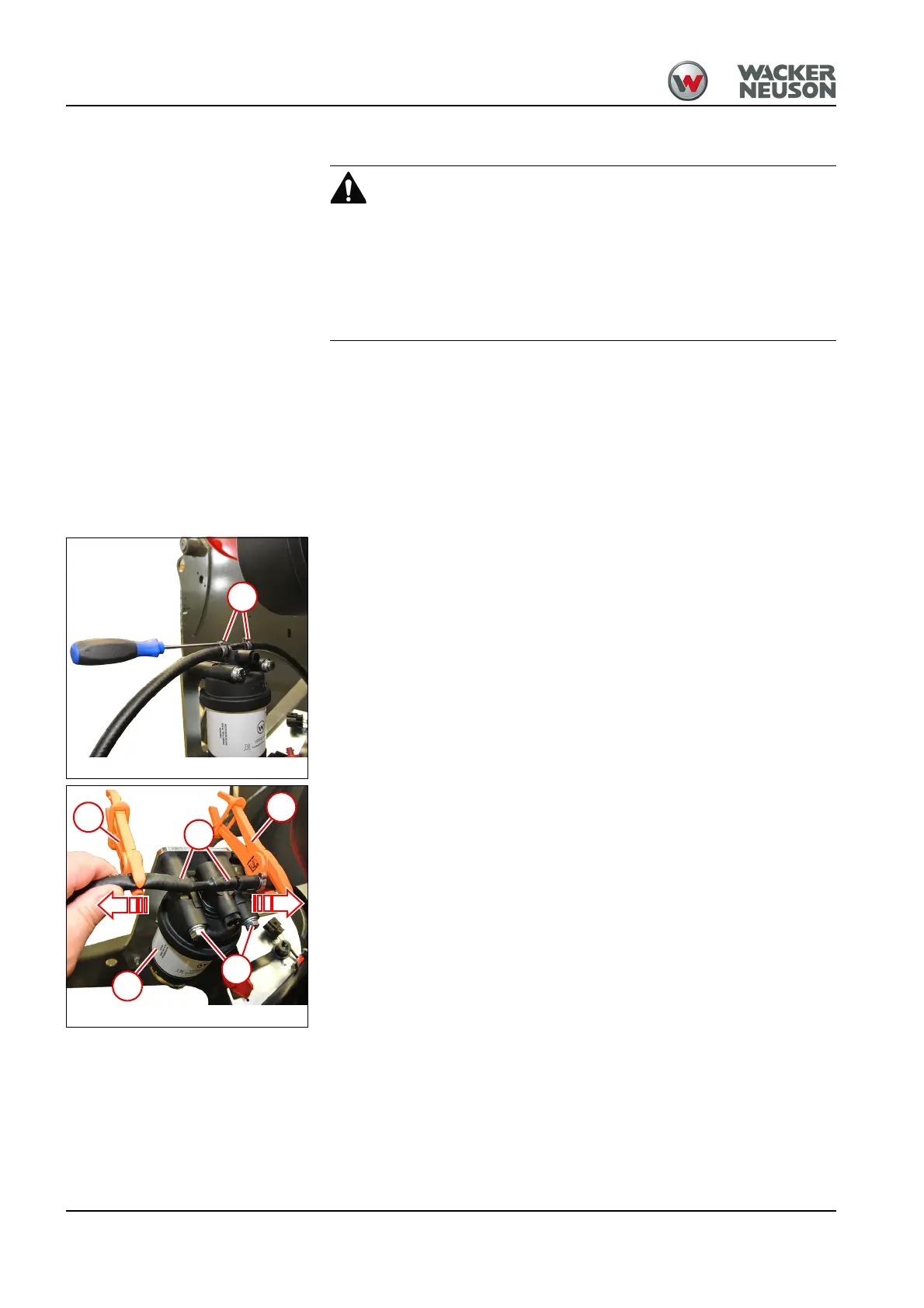

Fig. 40
1
Fig. 41
2
3
2
4
5
