Wacker Neuson WL34 - Travel Drive

4 Travel drive

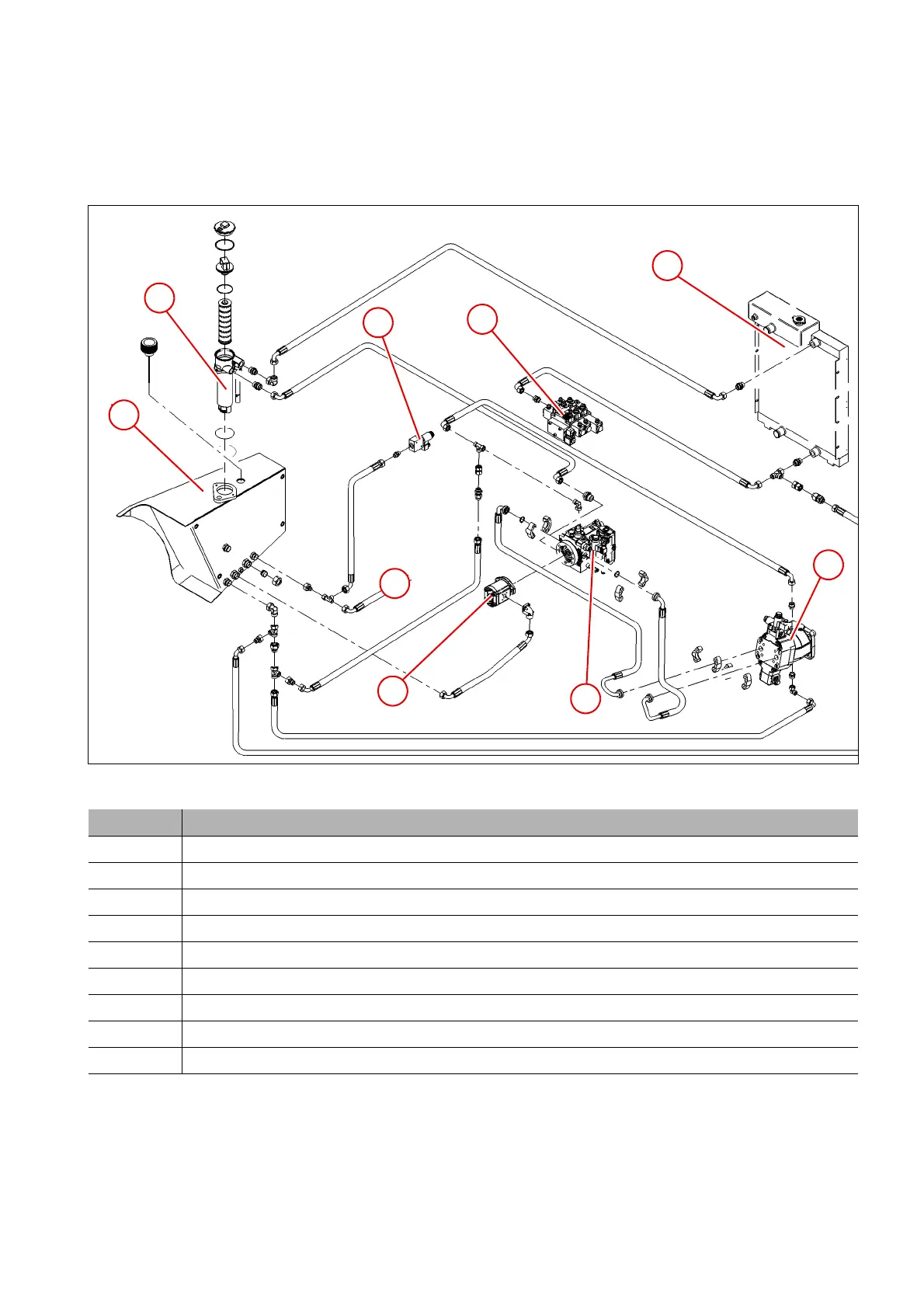

4.1 Traveling drive hose routing
4
3
8
5
2
7
1
6
9
Item Designation
1 Hydraulic oil reservoir
2 Hydraulic oil filter
3 High-speed mode 3/2-directional valve
4 Control valve
5 Hydraulic oil radiator
6 Variable displacement motor
7 Variable displacement pump
8 Gear pump
9 to the steering orbital
Travel drive
Hose routing
