7-8 SHB WL34 * 2.0
7 Steering system
Steering cylinder

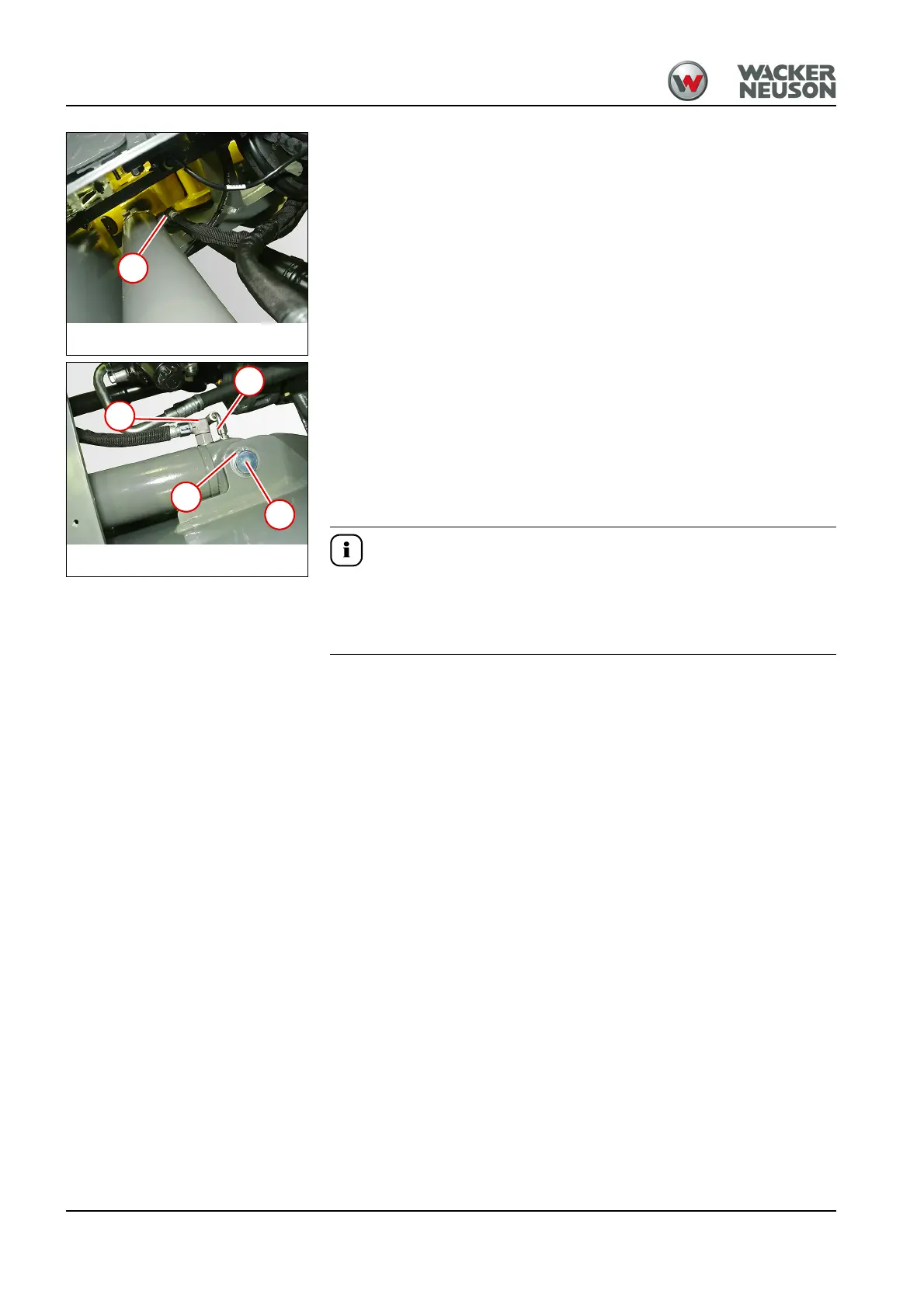

5. Put the loader unit in the lowest position.
6. Release the pressure in the hydraulic system – see “Releasing
residual pressure in the hydraulic system” on page E-32.
7. Remove the hydraulic connection 3.
8. Close the openings oil-tight with the plugs.
9. Remove the lubricant hose 5.
10.Remove the hydraulic hose 4.
11.Remove circlip 6 on pin 7.
12.Remove pin, if necessary; drive it out with an impact extractor.
13.Remove the steering cylinder.
Install in the reverse order.
If the steering cylinder is filled with oil, blow compressed air into the base-
side hydraulic connection to extend the cylinder rod, if necessary. The
cylinder rod of the new steering cylinder must be extended the same
distance as the cylinder rod of the steering cylinder removed before.
