Wacker Neuson WL34 - Steering System; Hose Routing

7 Steering system

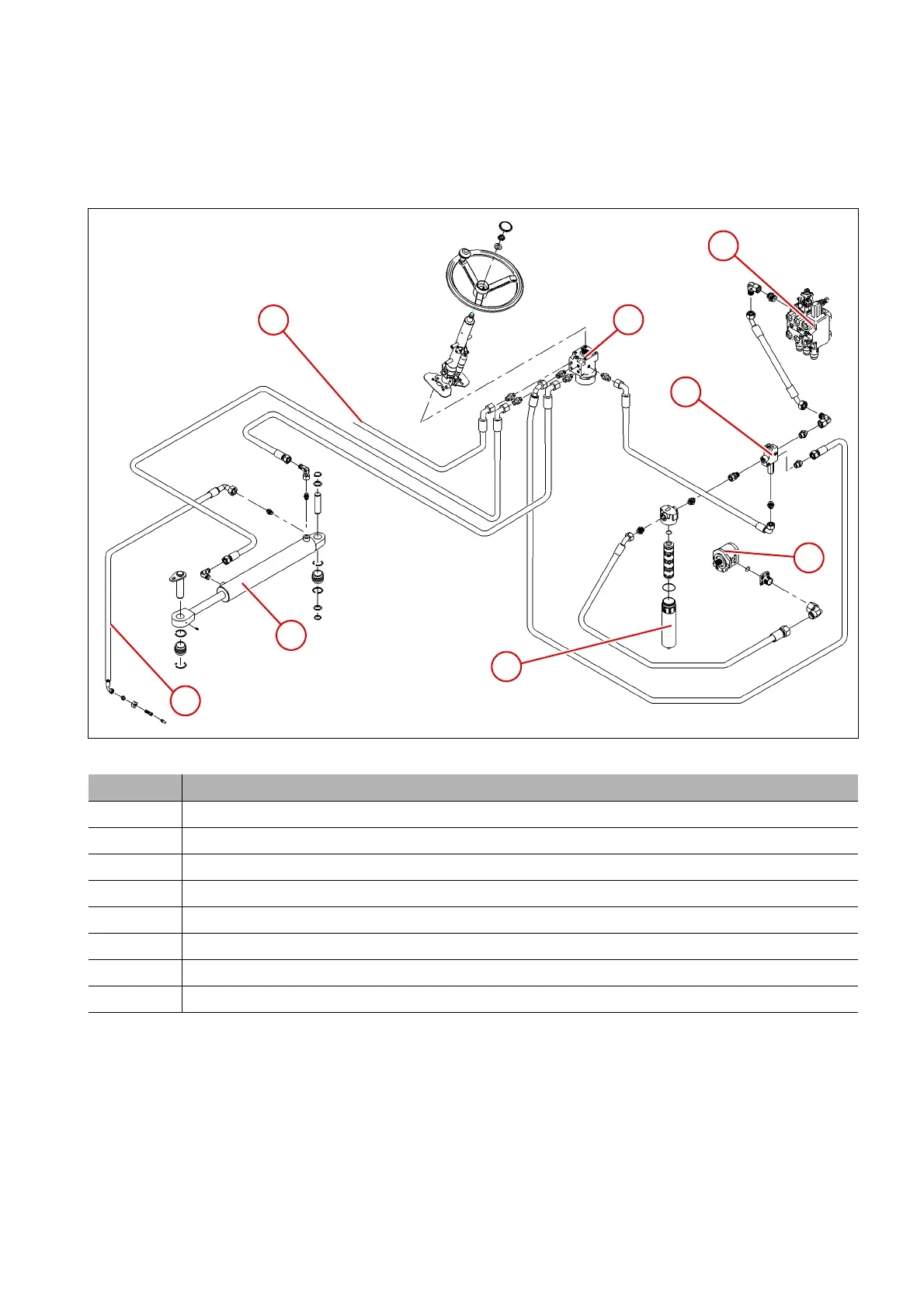

7.1 Hose routing
1
4
2
3
5
6
7
8
Item Designation
1 Return line to the tank
2 Steering orbitrol
3 Control valve
4 Priority valve
5 Gear pump
6 High-pressure filter
7 Steering cylinder
8 Lubrication line (only for vehicle numbers with serial number > 3025887)
Steering system
