SHB WL34 * 2.0 4-11
Travel drive 4
Variable displacement pump
Install
1. Fasten suitable lifting gear (for example, a round sling) onto the
variable displacement pump.
Injury hazard due to heavy component.
► Use lifting gear of sufficient lifting capacity.
► Use functionally safe lifting gear.
► Use the lifting gear on firm and level ground.
► Fasten the lifting gear in a suitable position of the component, or in a
position provided for this.

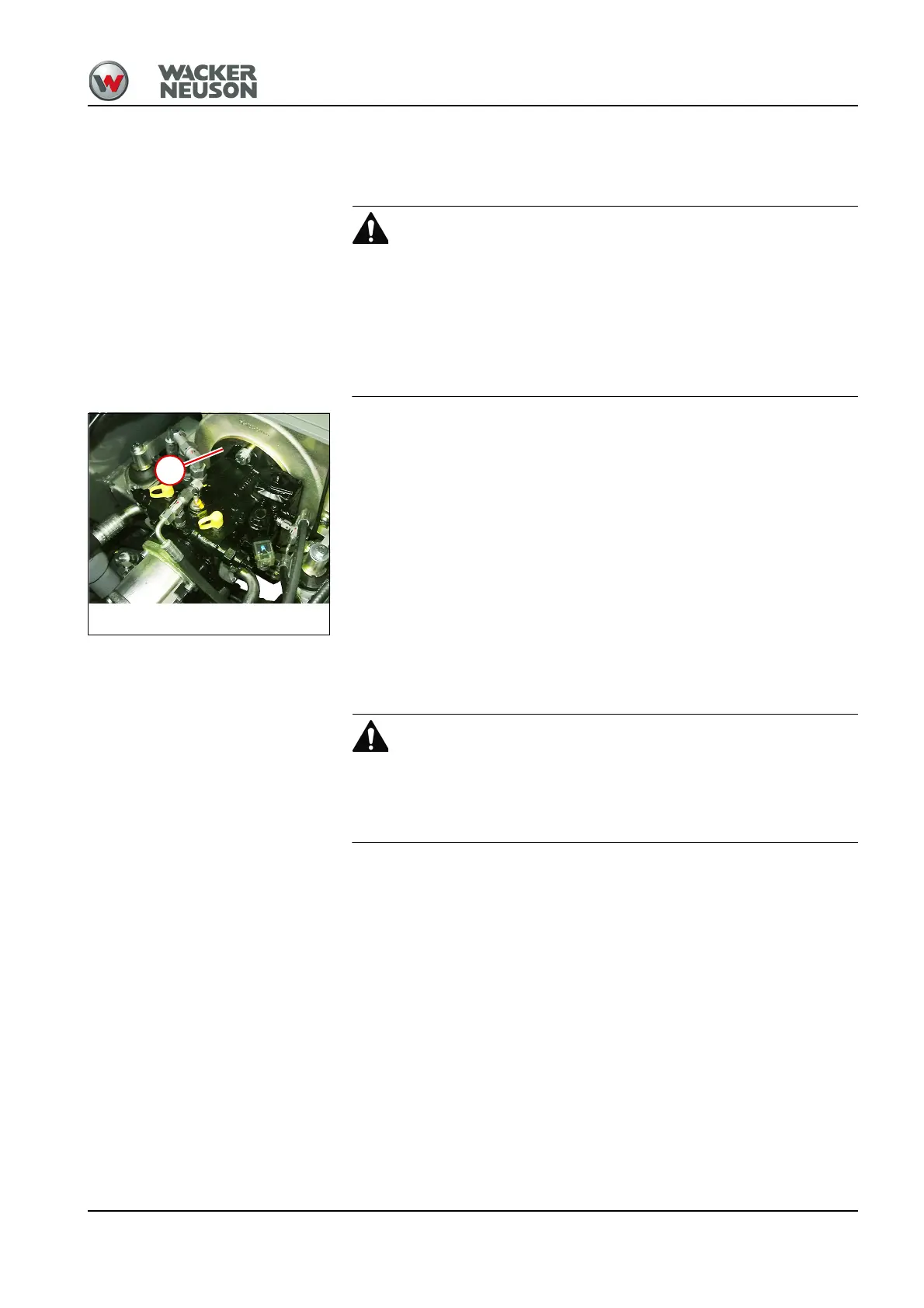

2. Install the variable displacement pump on the clutch bell. To do this,
remove a screw 1 on the top and bottom sides.
3. Fix hydraulic lines.
4. Install the gear pump – see “Removing/installing the gear pump” on
page 8-9.
5. Plug in two connectors A and affix with screws.
6. Remove the filler screw and fill the variable displacement pump to
approx. 2/3 full with hydraulic liquid, – see “Overview” on page 4-3 or
Pressures on page 4-4Position 3.
7. Install driver's seat – see “Removing/installing the operator seat” on
page 1-18.
8. Start the engine and allow to run at low speed.
9. Check the hydraulic oil level and add hydraulic oil if necessary –
see “Checking the hydraulic oil level” on page 1-52.
Accident hazard due to reduced braking effect
Air can be drawn into the system when the brake circuit is opened.
► Bleed the brake circuit with brake bleed equipment.
