SHB WL34 * 2.0 4-3
Travel drive 4
Variable displacement pump

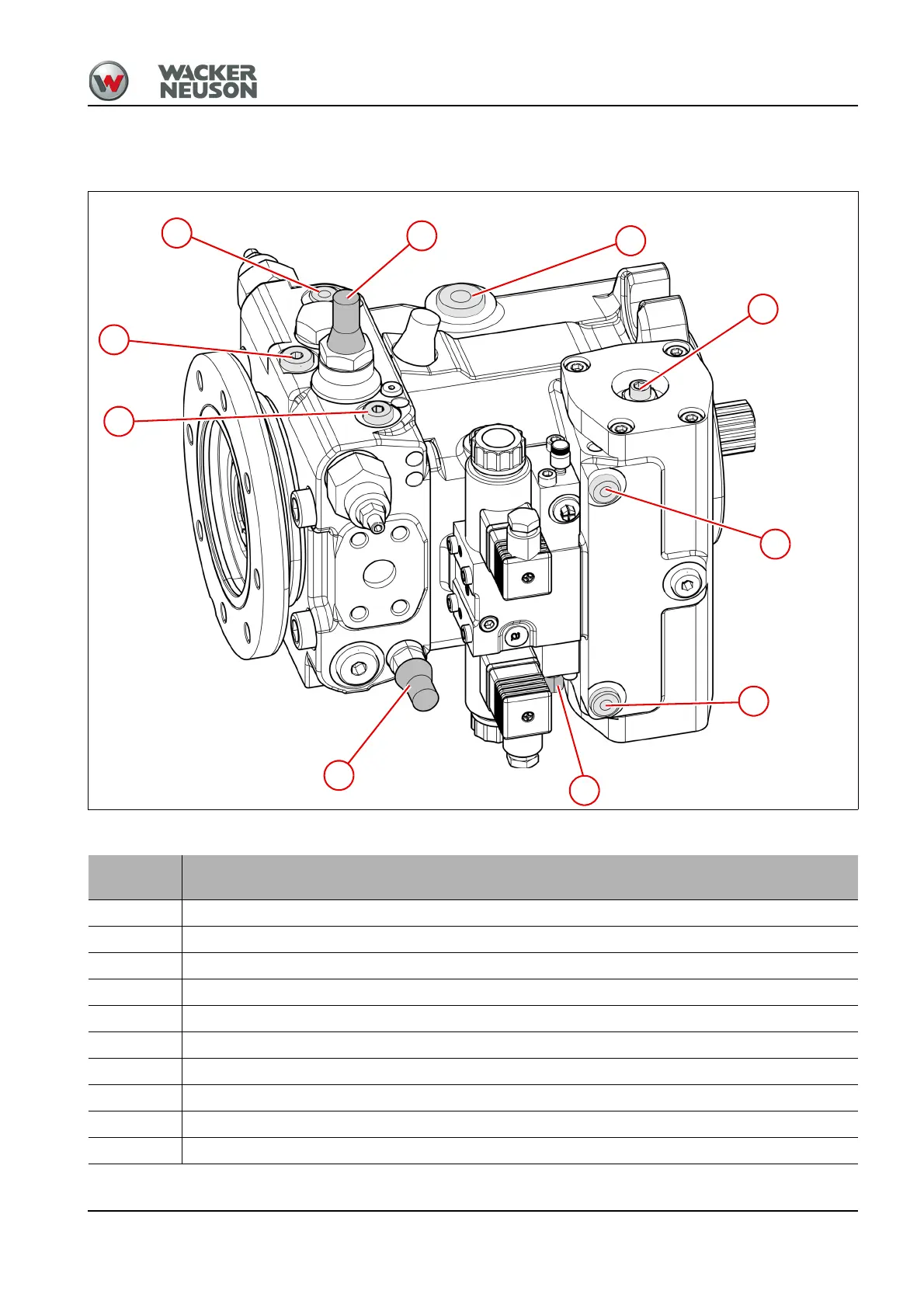

4.3 Variable displacement pump
Overview
Compo-
nent
Function
1 High pressure measurement connection M
B
for reverse travel
2 Adjusting screw for adjusting the starting speed
3 Oil filler plug
4 Adjusting screw for adjusting mechanical zero position
5 Setting pressure x
2
in case of reverse travel
6 Setting pressure x
1
in case of reverse travel
7 Screw for adjusting the inching
8 Adjusting screw for adjusting the pressure cutoff
9 High-pressure measurement connection M
A
for forward travel
10 Connecting the hydraulic line to the boost pressure testing connection G
Travel drive
Variable displacement pump
