Wacker Neuson WL34 - Special Tools; Clamp

E-36 SHB WL34 * 2.0
E Introduction
Special tools
E.5 Special tools
Claws and extractors
Purpose
The two claws and the three-way extractor are used for pulling the
steering wheel off the steering column without damaging it.
Version
• Metal, solid
• See table “Dimensions” for details
Dimensions and bearing types
Clamp
Purpose
The hose clip is used for temporarily closing flexible lines, for example
brake hoses, before the flexible lines are disconnected or removed.
Version
• Metal
• 4 sizes
Sizes

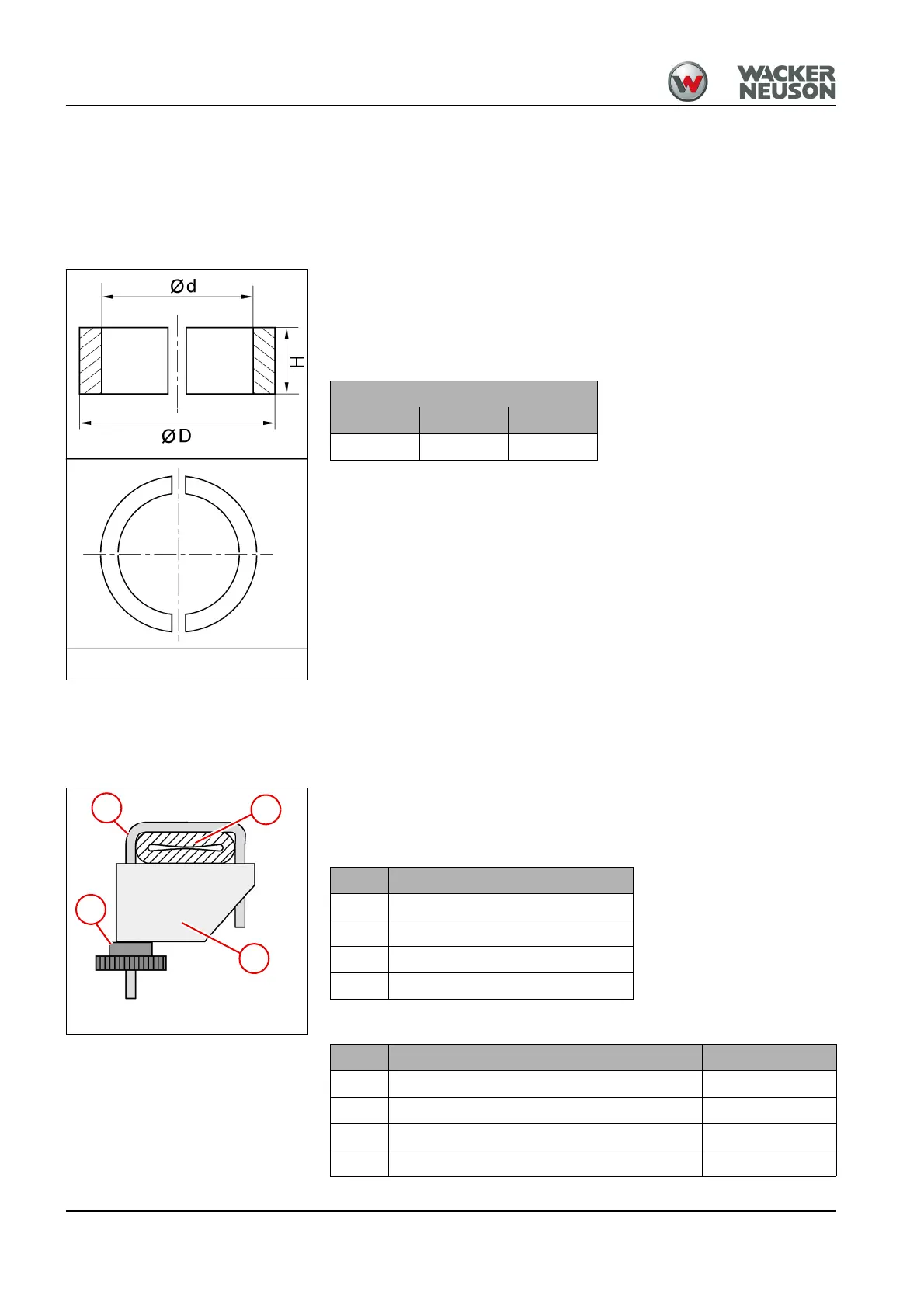

Fig. 3
Dimensions in mm
D d H
52 46 7
B
A
C
D
Fig. 4
Item Designation
ABow
B closed flexible line
C Sheet metal
D Knurled nut
Item Diameter of the flexible line [mm] Article number
1 Up to 10 KL-0121-1
2 Up to 15 KL-0121-2
3 Up to 24 KL-0121-3
4 Up to 45 KL-0121-4
