Overview of control elements

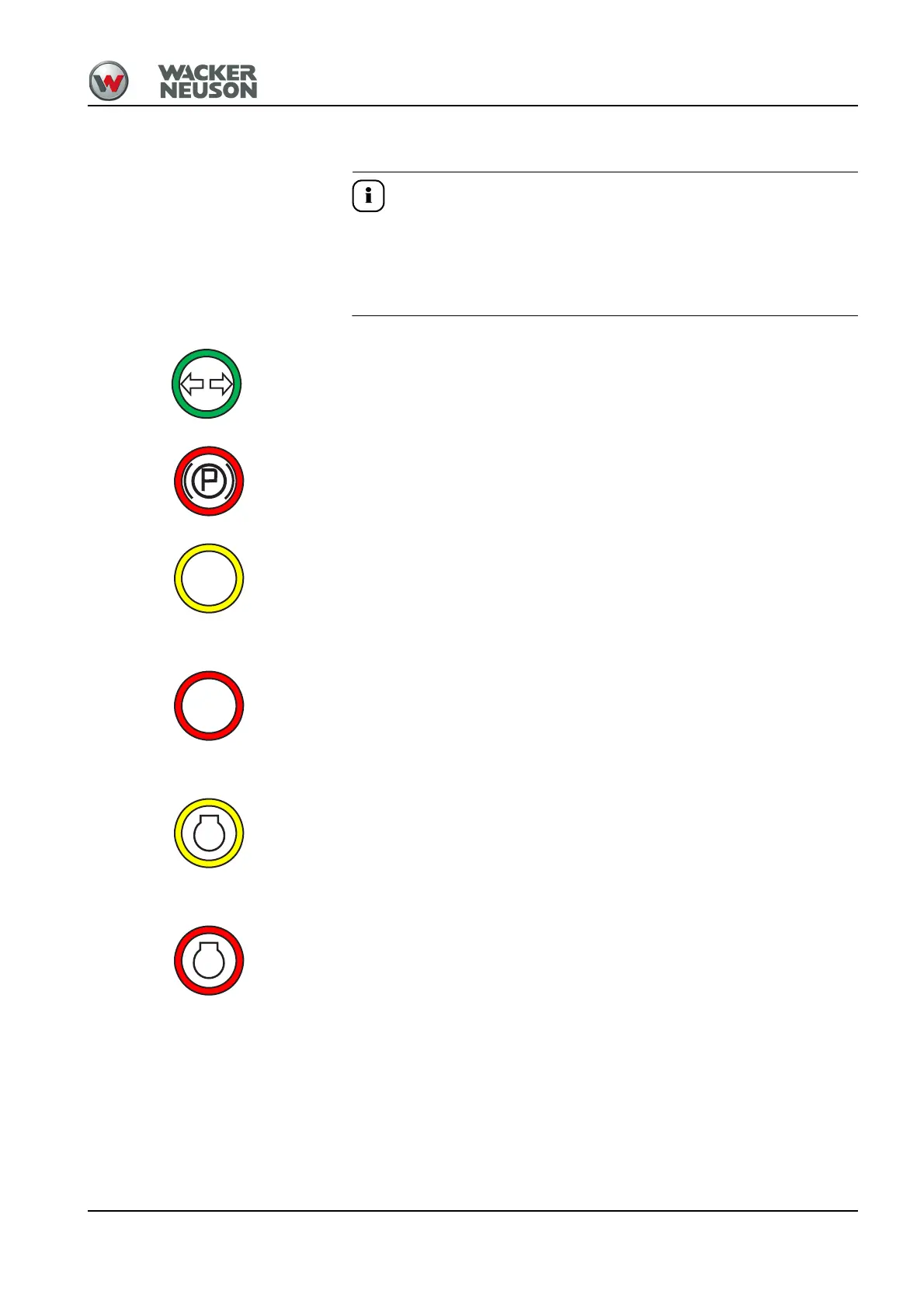

B.1 Indicator lights and warning lights (overview)
The indicator lights provide information to the operator.
The warning lights warn the operator of damage to the machine. If a
warning light illuminates during operation, stop the machine. Have the
malfunction rectified before restarting the machine.
Turn indicator light (green)
Flashes intermittently when the turn indicators are used.
Parking brake warning light (red)
Illuminates when the parking brake is applied. Speed ranges and the
travel direction cannot be selected if the parking brake is applied.
Warning light “ECU controls” (yellow)
Illuminates for a self-test when the engine is started. If the indicator light
illuminates during operation:
• Stop the engine.
➥ An error code appears in the machine display – see "Malfunctions
of the machine electronics" on page 9-12.
Warning light “ECU controls” (red)
Illuminates for a self-test when the engine is started. If the indicator light
illuminates during operation:
• Stop the engine.
➥ An error code appears in the machine display – see "Malfunctions
of the machine electronics" on page 9-12.
Indicator light “Engine error” (yellow)
Illuminates or flashes if one or more engine-operation values are outside
the normal range.
• Stop the engine
➥ An error code appears in the machine display – see "Malfunctions
of the machine electronics" on page 9-12.
Warning light “Engine error” (red)
Illuminates or flashes in case of one or more errors in the engine
electronics.
• Stop the engine.
➥ An error code appears in the machine display – see "Malfunctions
of the machine electronics" on page 9-12.
