Overview of control elements
Indicating instruments

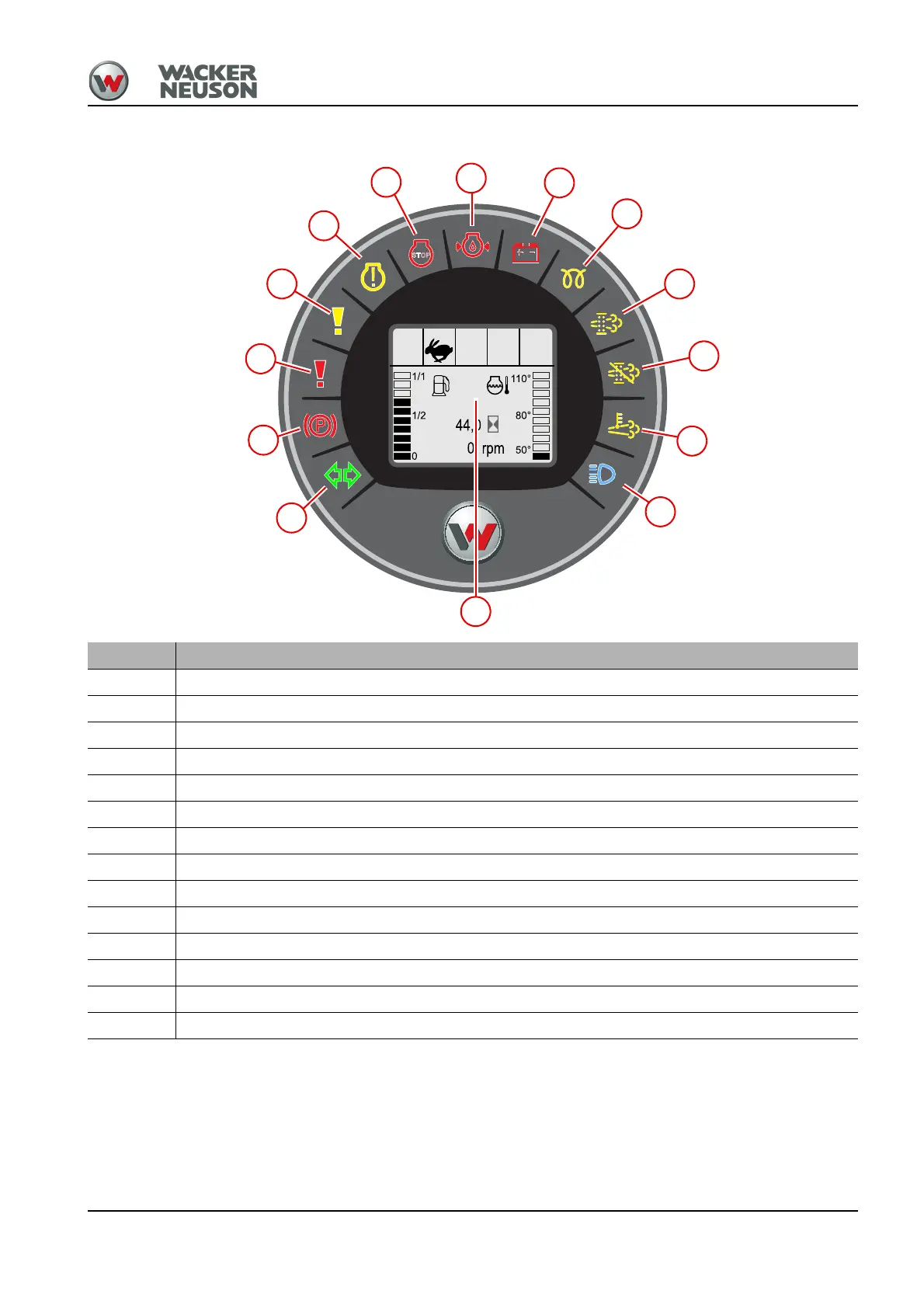

Fig. 6
18
19
20
21
22
23
25
26
27
28
29
30
31
24
Position Display instrument
18 Turn indicator light (green)
19 Parking brake warning light (red)
20 Indicator light “Machine electronics” (yellow)
21 Warning light “Machine electronics” (red)
22 Indicator light “Engine error” (yellow)
23 Warning light “Engine error” (red)
24 Warning light “Engine oil pressure” (red)
25 Alternator warning light (red)
26 Preheating indicator light (yellow)
27 Indicator light “DPF regeneration required” (yellow)
28 Indicator light “Suppress DPF regeneration” (yellow)
29 Indicator light “DPF regeneration active” (yellow)
30 High beam indicator light (blue)
31 Display
