3 Cooling
Radiator / fan blades
8. Remove four screws 6.
9. Remove the fan blades and the distance piece.
Install
1. Screw the fan blades tightly on the engine.
2. Push the radiator forward.
3. Check whether there is enough space between the fan blades and
other components.
4. Check the fan blades with your hand for smooth running.
5. Measure whether the fan blades protrude approx. 2/3 into the opening
of the air guide plate.
6. Tighten the nuts on the sides and at the bottom.
Further installation occurs in the reverse order.

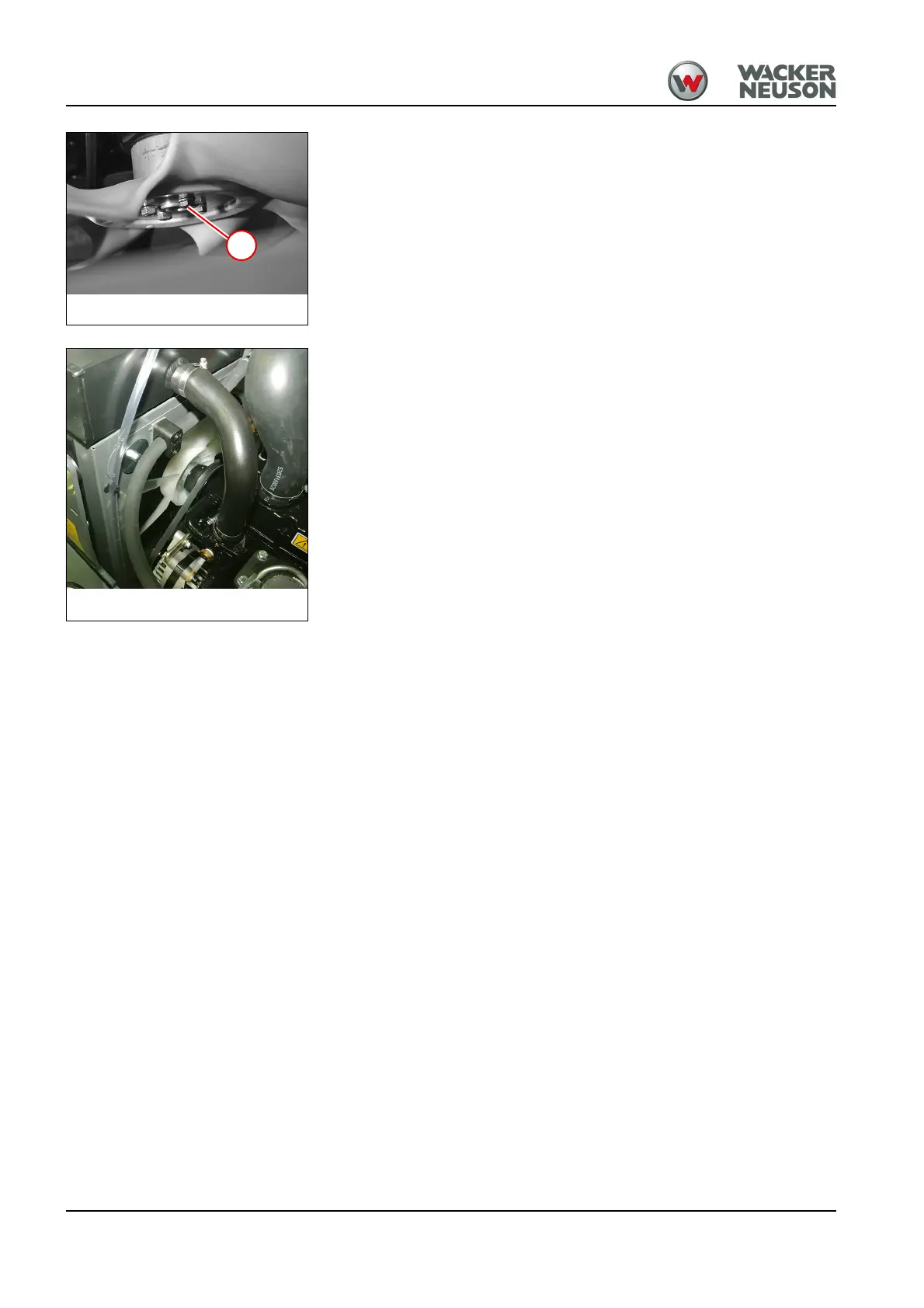

Fig. 112
6
Fig. 113
